UCF30R-AEAGKW (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

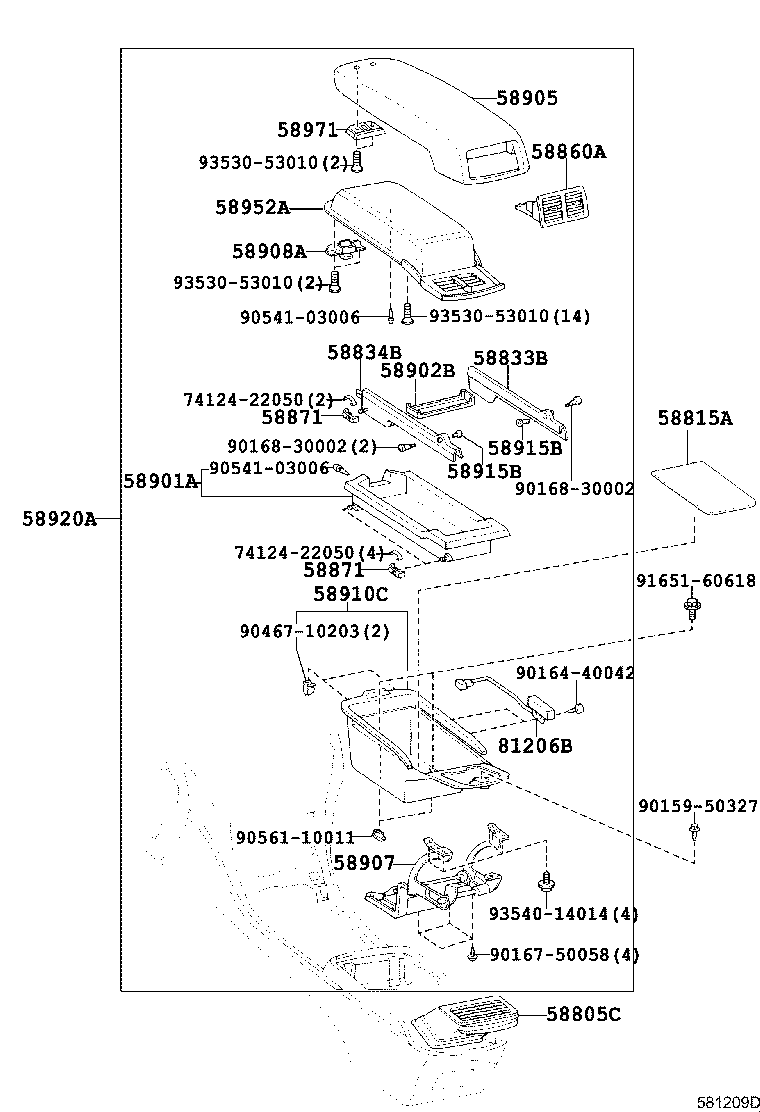

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 58805C 58815A 58833B 58834B 58860A 58871 58871 58901A 58902B 58905 58907 58908A 58910C 58915B 58915B 58920A 58952A 58971 7412422050 7412422050 81206B 9015950327 9016440042 9016750058 9016830002 9016830002 9046710203 9054103006 9054103006 9056110011 9165160618 9353053010 9353053010 9353053010 9354014014
Part # Description Qty Price
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-50010

UCF30

 1
58815A - CARPET, CONSOLE BOX
58815-50010

UCF30

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-50010

UCF30

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-50030

UCF30

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-50030

UCF30

 1
58871 - CUSHION, CONSOLE BOX
58871-50030

UCF30

 6
58871 - CUSHION, CONSOLE BOX
58871-50030

UCF30

 6
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-50020

UCF30

 1
58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902-50020

UCF30

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-50020A0

UCF30

CONSOLE BOX=TYPE B-*104,ECRU,TRIM03

 1
58951-50020A1

UCF30

CONSOLE BOX=TYPE B-*104,IVORY,TRIM04

 1
58951-50020C0

UCF30

CONSOLE BOX=TYPE B-*104,BLACK,TRIM2#

 1
58951-50020B0

UCF30

CONSOLE BOX=TYPE B-*104,CHARCOAL,TRIM1#

 1
58951-50040C0

UCF30

CONSOLE BOX=TYPE A-*104,BLACK,TRIM2#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-50030

UCF30

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-50040

UCF30

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-50010

UCF30

 1
58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR
58915-50020

UCF30

 2
58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR
58915-50020

UCF30

 2
58920A - ARMREST ASSY, REAR CONSOLE
58920-50130B0

UCF30

CONSOLE BOX=TYPE B-*104,CHARCOAL,TRIM1#

 1
58920-50150C0

UCF30

CONSOLE BOX=TYPE A-*104,BLACK,TRIM2#

 1
58920-50130A0

UCF30

CONSOLE BOX=TYPE B-*104,ECRU,TRIM03

 1
58920-50130A1

UCF30

CONSOLE BOX=TYPE B-*104,IVORY,TRIM04

 1
58920-50130C0

UCF30

CONSOLE BOX=TYPE B-*104,BLACK,TRIM2#

 1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-50040

UCF30

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-50010A1

UCF30

ECRU,TRIM03

 1
58971-50010A0

UCF30

IVORY,TRIM04

 1
58971-50010B0

UCF30

MD.CHARCOAL,TRIM1#

 1
58971-50010C0

UCF30

BLACK,TRIM2#

 1
81206B - LAMP SUB-ASSY, CONSOLE BOX
81206-50010

UCF30

 1
Common parts
74124-22050
90159-50327
90164-40042
90167-50058
90168-30002
90467-10203
90541-03006
90561-10011
91651-60618
93530-53010
93540-14014

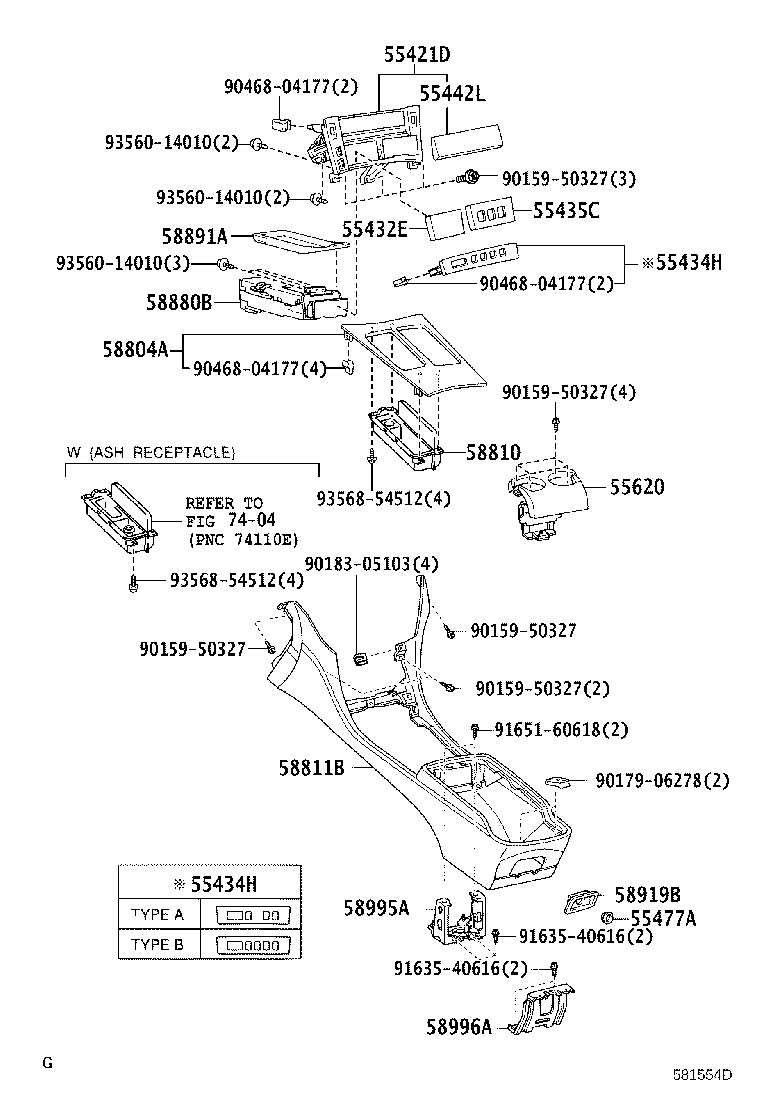

ILLUST NO. 2 OF 2(0008- )RHD

Click highlighted areas on diagram

diagram 55421D 55432E 55434H 55434H 55435C 55442L 55477A 55620 58804A 58810 58811B 58880B 58891A 58919B 58995A 58996A 7404 9015950327 9015950327 9015950327 9015950327 9015950327 9017906278 9018305103 9046804177 9046804177 9046804177 9163540616 9163540616 9165160618 9356014010 9356014010 9356014010 9356854512 9356854512
Part # Description Qty Price
55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-50020E1

UCF30..RHD

LIGHTBROWN,TRIM03,2#

 1
55421-50020E0

UCF30..RHD

MD.BROWN,TRIM04,1#

 1
55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-50040E1

UCF30..RHD

LIGHTBROWN,TRIM03,2#

 1
55432-50040E0

UCF30..RHD

MD.BROWN,TRIM04,1#

 1
55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-50080E1

UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION,LIGHTBROWN,TRIM03,2#

 1
55434-50080E0

UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION,MD.BROWN,TRIM04,1#

 1
55434-50070E0

UCF30..RHD

TYPE A:REFER TO ILLUSTRATION,MD.BROWN,TRIM04,1#

 1
55434-50070E1

UCF30..RHD

TYPE A:REFER TO ILLUSTRATION,LIGHTBROWN,TRIM03,2#

 1
55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-50080E1

UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION,LIGHTBROWN,TRIM03,2#

 1
55434-50080E0

UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION,MD.BROWN,TRIM04,1#

 1
55434-50070E0

UCF30..RHD

TYPE A:REFER TO ILLUSTRATION,MD.BROWN,TRIM04,1#

 1
55434-50070E1

UCF30..RHD

TYPE A:REFER TO ILLUSTRATION,LIGHTBROWN,TRIM03,2#

 1
55435C - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-50030E1

UCF30..RHD

LIGHTBROWN,TRIM03,2#

 1
55435-50030E0

UCF30..RHD

MD.BROWN,TRIM04,1#

 1
55435-50040E0

UCF30..RHD..EUR

W(AIR SUSPENSION),MD.BROWN,TRIM04,1#

 1
55435-50040E1

UCF30..RHD..EUR

W(AIR SUSPENSION),LIGHTBROWN,TRIM03,2#

 1
55442L - DOOR, INSTRUMENT PANEL
55442-50060E0

UCF30

MD.BROWN,TRIM04,1#

 1
55442-50060E1

UCF30

LIGHTBROWN,TRIM03,2#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-26030

UCF30

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-50030B0

UCF30

MD.CHARCOAL,TRIM1#

 1
55620-50030A0

UCF30

IVORY,TRIM04

 1
55620-50030C0

UCF30

BLACK,TRIM2#

 1
55620-50030A1

UCF30

ECRU,TRIM03

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-50270

UCF30..RHD..EUR

 1
58804-50280E1

UCF30..RHD

LIGHT BROWN,TRIM03,2#

 1
58804-50280E0

UCF30..RHD

MD.BROWN,TRIM04,1#

 1
58810 - CONSOLE ASSY
58810-50040E1

UCF30..RHD

LIGHTBROWN,TRIM03,2#

 1
58810-50030

UCF30..RHD..EUR

 1
58810-50040E0

UCF30..RHD

MD.BROWN,TRIM04,1#

 1
58811B - BOX, CONSOLE
58801-50900A0

UCF30

IVORY,TRIM04

 1
58801-50900A1

UCF30

ECRU,TRIM03

 1
58801-50900C0

UCF30

BLACK,TRIM2#

 1
58801-50900B0

UCF30

MD.CHARCOAL,TRIM1#

 1
58880B - BOX ASSY, EQUIPMENT SET
58880-50020

UCF30..RHD

 1
58891A - PANEL, EQUIPMENT SET, NO.1
58891-50010

UCF30

 1
58919B - PLATE, CONSOLE BOX
58919-50010B0

UCF30

MD.CHARCOAL,TRIM1#

 1
58919-50010A0

UCF30

IVORY,TRIM04

 1
58919-50010A1

UCF30

ECRU,TRIM03

 1
58919-50010C0

UCF30

BLACK,TRIM2#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-50020

UCF30

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-50030

UCF30

 1
Common parts
90159-50327
90179-06278
90183-05103
90468-04177
91635-40616
91651-60618
93560-14010
93568-54512
Linked diagrams
7404
