UCF30R-AEAGKW (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )RHD

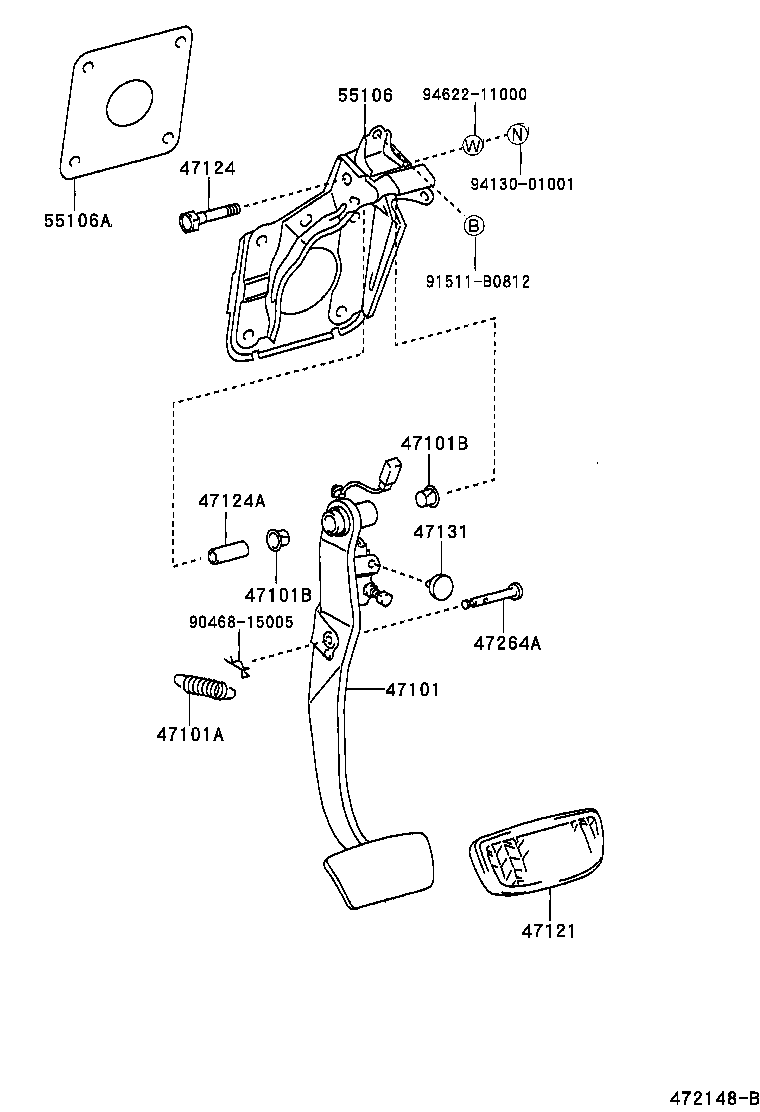

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55106A 9046815005 91511B0812 9413001001 9462211000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47106-50010

UCF30..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14032

UCF30

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

UCF30

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

UCF30

 2
47121 - PAD, BRAKE PEDAL
47121-50020

UCF30

 1
47124 - SHAFT, BRAKE PEDAL
90101-10015

UCF30

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

UCF30

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

UCF30

 1
47264A - PIN(FOR PUSH ROD)
47148-50010

UCF30

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-50080

UCF30..RHD

 1
55106A - SEAL, DASH PANEL
55259-20010

UCF30

 1
Common parts
90468-15005
91511-B0812
94130-01001
94622-11000
