UCF30R-AEAGKW (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008-0307)

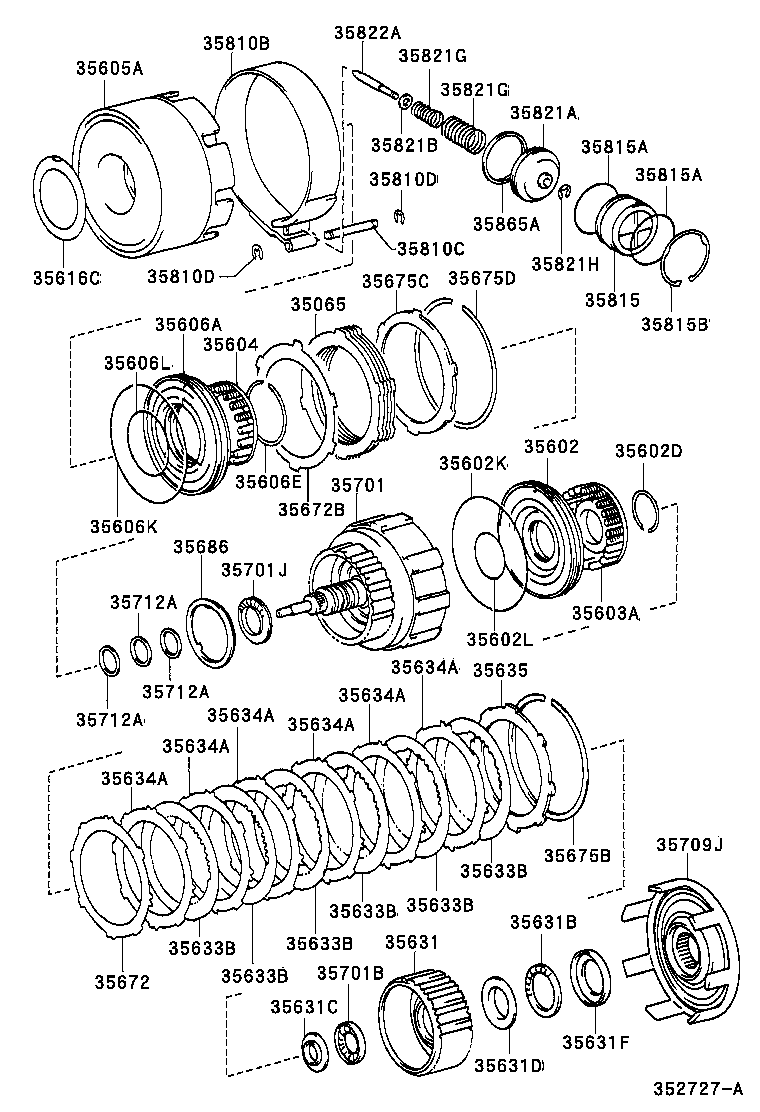

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35065 - DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR | ||||
| 35065-50010 |
UCF30 |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-22020 |
UCF30 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
UCF30 |
1 | ||
| 35602K - RING, O(FOR FORWARD CLUTCH PISTON INNER) | ||||
| 90301-39005 |
UCF30 |
1 | ||
| 35602L - RING, O(FOR FORWARD CLUTCH PISTON OUTER) | ||||
| 90301-99058 |
UCF30 |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
UCF30 |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-30030 |
UCF30 |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-30100 |
UCF30 |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-22030 |
UCF30 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
UCF30 |
1 | ||
| 35606K - RING, O(FOR DIRECT CLUTCH PISTON INNER) | ||||
| 90301-65006 |
UCF30 |
1 | ||
| 35606L - RING, O(FOR DIRECT CLUTCH PISTON OUTER) | ||||
| 90301-99065 |
UCF30 |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30060 |
UCF30 |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30090 |
UCF30 |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-43001 |
UCF30 |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-30250 |
UCF30 |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-30270 |
UCF30 |
1 | ||
| 35631F - RACE, THRUST BEARING(FOR REAR CLUTCH DRUM) | ||||
| 35789-30280 |
UCF30 |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-50030 |
UCF30 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-33020 |
UCF30 T=1.4 |
1 | ||
| 35634-30160 |
UCF30 T=1.8 |
5 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50060 |
UCF30 T=3.00,MARK 61 |
1 | ||
| 35635-30050 |
UCF30 T=3.8,MARK 94 |
1 | ||
| 35635-30080 |
UCF30 T=3.2,MARK 91 |
1 | ||
| 35635-30070 |
UCF30 T=3.4,MARK 92 |
1 | ||
| 35635-30060 |
UCF30 T=3.6,MARK 93 |
1 | ||
| 35635-30090 |
UCF30 T=3.0,MARK 90 |
1 | ||
| 35635-30040 |
UCF30 T=4.0,MARK 95 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-22010 |
UCF30 |
1 | ||
| 35672B - PLATE, CLUTCH CUSHION, NO.2 | ||||
| 35672-50020 |
UCF30 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
UCF30 |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30230 |
UCF30 T=3.7,MARK 57 |
1 | ||
| 35675-30220 |
UCF30 T=3.6,MARK 56 |
1 | ||
| 35675-30240 |
UCF30 T=3.3,MARK 53 |
1 | ||
| 35675-30180 |
UCF30 T=4.1 |
1 | ||
| 35675-30270 |
UCF30 T=4.0,MARK 60 |
1 | ||
| 35675-30260 |
UCF30 T=3.8,MARK 58 |
1 | ||
| 35675-22100 |
UCF30 T=4.0,MARK 40 |
1 | ||
| 35675-30210 |
UCF30 T=3.5,MARK 55 |
1 | ||
| 35675-22090 |
UCF30 T=3.9,MARK 39 |
1 | ||
| 35675-30250 |
UCF30 T=3.4,MARK 54 |
1 | ||
| 35675-30280 |
UCF30 T=4.2,MARK 62 |
1 | ||
| 35675-30190 |
UCF30 T=4.2 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99018 |
UCF30 |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
UCF30 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-50020 |
UCF30 |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-27010 |
UCF30 |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
UCF30 |
1 | ||
| 35709J - DRUM SUB-ASSY, SUN GEAR INPUT | ||||
| 35709-30070 |
UCF30 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
UCF30 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
UCF30 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
UCF30 |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50030 |
UCF30 |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
UCF30 |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
UCF30 |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
UCF30 |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-22010 |
UCF30 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
UCF30 |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
UCF30 |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
UCF30 |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-22020 |
UCF30 |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
UCF30 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-32037 |
UCF30 INNER |
1 | ||
| 90501-26024 |
UCF30 OUTER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-32037 |
UCF30 INNER |
1 | ||
| 90501-26024 |
UCF30 OUTER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
UCF30 |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-50040 |
UCF30 L=72.15 |
1 | ||
| 35822-22010 |
UCF30 L=78.4 |
1 | ||
| 35822-22020 |
UCF30 L=79.9 |
1 | ||
| 35822-50050 |
UCF30 L=70.65 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
UCF30 |
1 | ||
