UCF30R-AEAGKW (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

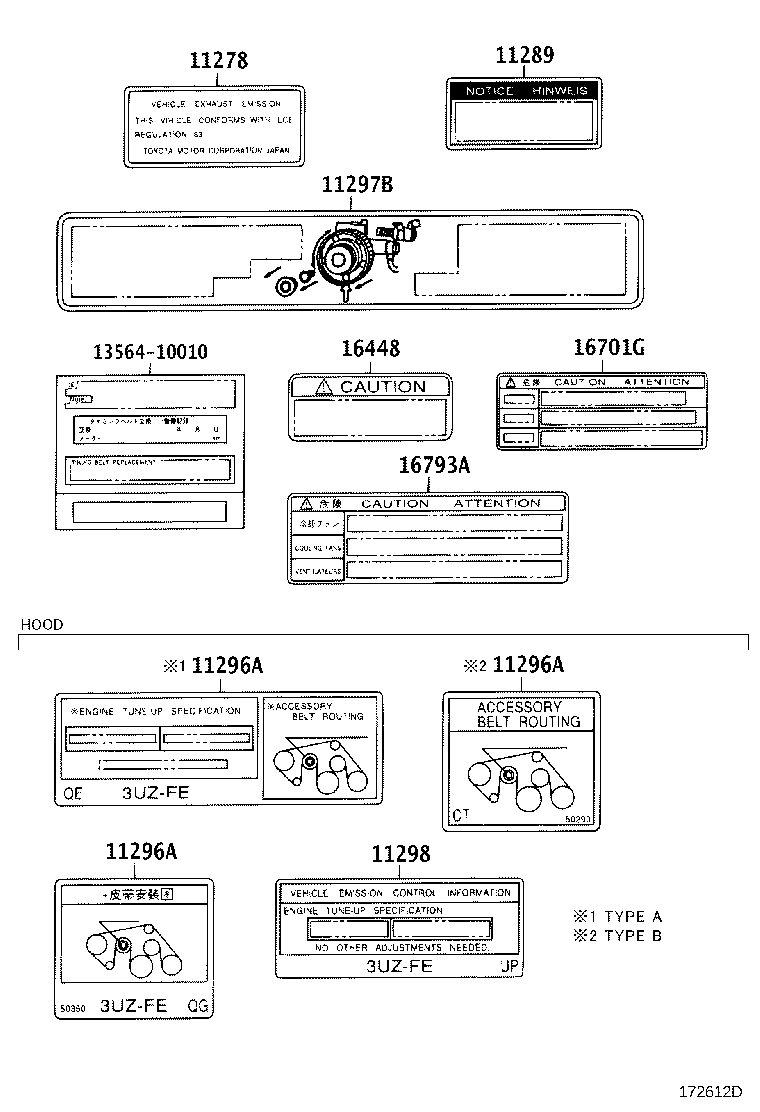

Click highlighted areas on diagram

diagram 11278 11289 11296A 11296A 11296A 11297B 11298 1356410010 16448 16701G 16793A
Part # Description Qty Price
11278 - PLATE, ENGINE EMISSION IDENTIFICATION
11278-16050

3UZFE..UCF30..RHD..EUR

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-50010

3UZFE..UCF30..ARL,EUR

 1
11289-50010

3UZFE..UCF30

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-50290

3UZFE..UCF30..GCC;3UZFE..UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-50290

3UZFE..UCF30..GCC;3UZFE..UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-50290

3UZFE..UCF30..GCC;3UZFE..UCF30..RHD..EUR

TYPE B:REFER TO ILLUSTRATION

 1
11297B - LABEL, ENGINE SERVICE INFORMATION, NO.2
11297-50010

3UZFE..UCF30

 1
16448 - PLATE, RADIATOR CAUTION
16448-50240

3UZFE..UCF30..EUR,GCC

 1
16701G - LABEL, CAUTION
88723-20081

3UZFE..UCF30

FAN SHROUD

 1
16793A - LABEL, COOLING FAN CAUTION
16793-46010

3UZFE..UCF30

AIR CLEANER INLET

 1
Common parts
13564-10010
