Toyota Lexus ls430 UCF30 MIRROR - JDM Part Detective

Part #	Description	Period	Qty
81880C - LAMP ASSY, OUTER MIRROR, RH
81880-30030	UCF30..RHD	08/2000 - 07/2003	1
81880D - BULB, OUTER MIRROR LAMP ASSY
90981-11051	UCF30 12V 5W	08/2000 - 07/2003	2
81880E - PULG, OUTER MIRROR LAMP SOCKET
90075-60005	UCF30	08/2000 - 07/2003	2
81890C - LAMP ASSY, OUTER MIRROR, LH
81890-50040	UCF30..RHD	08/2000 - 07/2003	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-50130B0	UCF30..ARL,GCC MEDIUM CHARCOAL,TRIM1#,2#	08/2000 - 07/2003	1
87810-50130A0	UCF30..ARL,GCC IVORY,TRIM04	08/2000 - 07/2003	1
87810-50130A1	UCF30..ARL,GCC ECRU,TRIM03	08/2000 - 07/2003	1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030	UCF30	08/2000 - 07/2003	1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-50030B0	UCF30 MD.CHARCOAL,TRIM1#,2#	08/2000 - 07/2003	1
87834-50030A0	UCF30 IVORY,TRIM04	08/2000 - 07/2003	1
87834-50030A1	UCF30 ECRU,TRIM03	08/2000 - 07/2003	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-50030D1	UCF30..RHD ROSE M.M.,3P4	08/2000 - 07/2001	1
87901-50030C0	UCF30..RHD BLACK,202	08/2000 - 07/2003	1
87901-50030G0	UCF30..RHD GREEN M.M.,6S5	08/2000 - 07/2003	1
87901-50030B0	UCF30..RHD SILVER ME.,1C0	08/2000 - 07/2003	1
87901-50030A0	UCF30..RHD WHITE PEARL CS.,062	08/2000 - 07/2003	1
87901-50030D0	UCF30..RHD BORDEAUX MC.,3P2	08/2000 - 07/2003	1
87901-50030E0	UCF30..RHD BEIGE ME.,4P7	08/2000 - 07/2003	1
87901-50030J0	UCF30..RHD DARK BLUE MC.,8P8	08/2000 - 07/2003	1
87901-50030G1	UCF30..RHD DARK GREEN M.M.,6S6	08/2000 - 07/2003	1
87901-50030A1	UCF30..RHD IVORY PEARL CS.,066	08/2000 - 07/2003	1
87901-50030J1	UCF30..RHD LT. BLUE M.M.,8P7	07/2001 - 07/2003	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-50090C0	UCF30..RHD BLACK,202	08/2000 - 07/2003	1
87906-50090A1	UCF30..RHD IVORY PEARL CS.,066	08/2000 - 07/2003	1
87906-50090B0	UCF30..RHD SILVER ME.,1C0	08/2000 - 07/2003	1
87906-50090G0	UCF30..RHD GREEN M.M.,6S5	08/2000 - 07/2003	1
87906-50090D0	UCF30..RHD BORDEAUX MC.,3P2	08/2000 - 07/2003	1
87906-50090J0	UCF30..RHD DARK BLUE MC.,8P8	08/2000 - 07/2003	1
87906-50090D1	UCF30..RHD ROSE M.M.,3P4	08/2000 - 07/2001	1
87906-50090E0	UCF30..RHD BEIGE ME.,4P7	08/2000 - 07/2003	1
87906-50090A0	UCF30..RHD WHITE PEARL CS.,062	08/2000 - 07/2003	1
87906-50090G1	UCF30..RHD DARK GREEN M.M.,6S6	08/2000 - 07/2003	1
87906-50090J1	UCF30..RHD LT. BLUE M.M.,8P7	07/2001 - 07/2003	1
87915 - COVER, OUTER MIRROR, RH
87915-50020D1	UCF30..RHD ROSE M.M.,3P4	08/2000 - 07/2001	1
87915-50020A0	UCF30..RHD WHITE PEARL CS.,062	08/2000 - 07/2003	1
87915-50020D0	UCF30..RHD BORDEAUX MC.,3P2	08/2000 - 07/2003	1
87915-50020A1	UCF30..RHD IVORY PEARL CS.,066	08/2000 - 07/2003	1
87915-50020C0	UCF30..RHD BLACK,202	08/2000 - 07/2003	1
87915-50020G0	UCF30..RHD GREEN M.M.,6S5	08/2000 - 07/2003	1
87915-50020B0	UCF30..RHD SILVER ME.,1C0	08/2000 - 07/2003	1
87915-50020J1	UCF30..RHD LT. BLUE M.M.,8P7	07/2001 - 07/2003	1
87915-50020E0	UCF30..RHD BEIGE ME.,4P7	08/2000 - 07/2003	1
87915-50020J0	UCF30..RHD DARK BLUE MC.,8P8	08/2000 - 07/2003	1
87915-50020G1	UCF30..RHD DARK GREEN MC.,6S6	08/2000 - 07/2003	1
87931 - OUTER MIRROR, RH
87931-50490	UCF30..ARL	08/2000 - 07/2003	1
87945 - COVER, OUTER MIRROR, LH
87945-50020B0	UCF30..RHD SILVER ME.,1C0	08/2000 - 07/2003	1
87945-50020D1	UCF30..RHD ROSE M.M.,3P4	08/2000 - 07/2001	1
87945-50020D0	UCF30..RHD BORDEAUX MC.,3P2	08/2000 - 07/2003	1
87945-50020A0	UCF30..RHD WHITE PEARL CS.,062	08/2000 - 07/2003	1
87945-50020J0	UCF30..RHD DARK BLUE MC.,8P8	08/2000 - 07/2003	1
87945-50020A1	UCF30..RHD IVORY PEARL CS.,066	08/2000 - 07/2003	1
87945-50020C0	UCF30..RHD BLACK,202	08/2000 - 07/2003	1
87945-50020G0	UCF30..RHD GREEN M.M.,6S5	08/2000 - 07/2003	1
87945-50020E0	UCF30..RHD BEIGE ME.,4P7	08/2000 - 07/2003	1
87945-50020J1	UCF30..RHD LT. BLUE M.M.,8P7	07/2001 - 07/2003	1
87945-50020G1	UCF30..RHD DARK GREEN MC.,6S6	08/2000 - 07/2003	1
87961 - MIRROR OUTER, LH
87961-50440	UCF30..RHD	08/2000 - 07/2003	1
Common parts
90105-06216
93319-15012

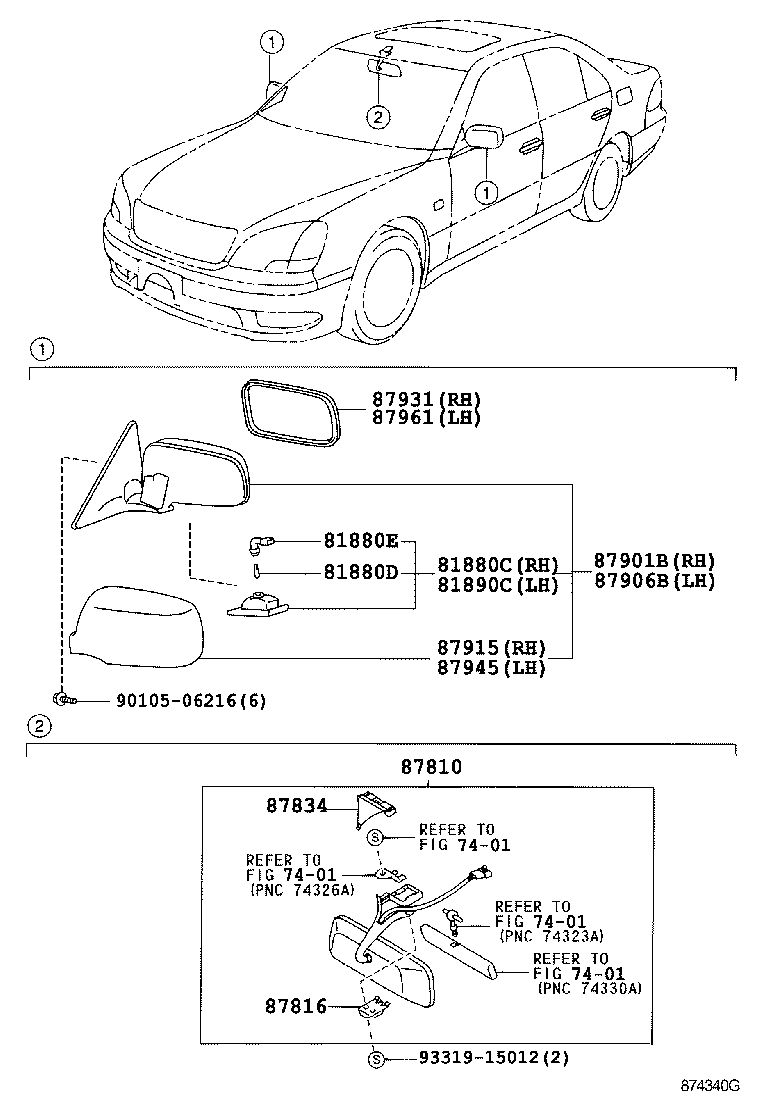

Linked diagrams
7401

UCF30R-AEAGKQ (2000)

(0008- )
