UCF30R-AEAGKQ (2000)
Toyota Lexus Ls430
(0008- )

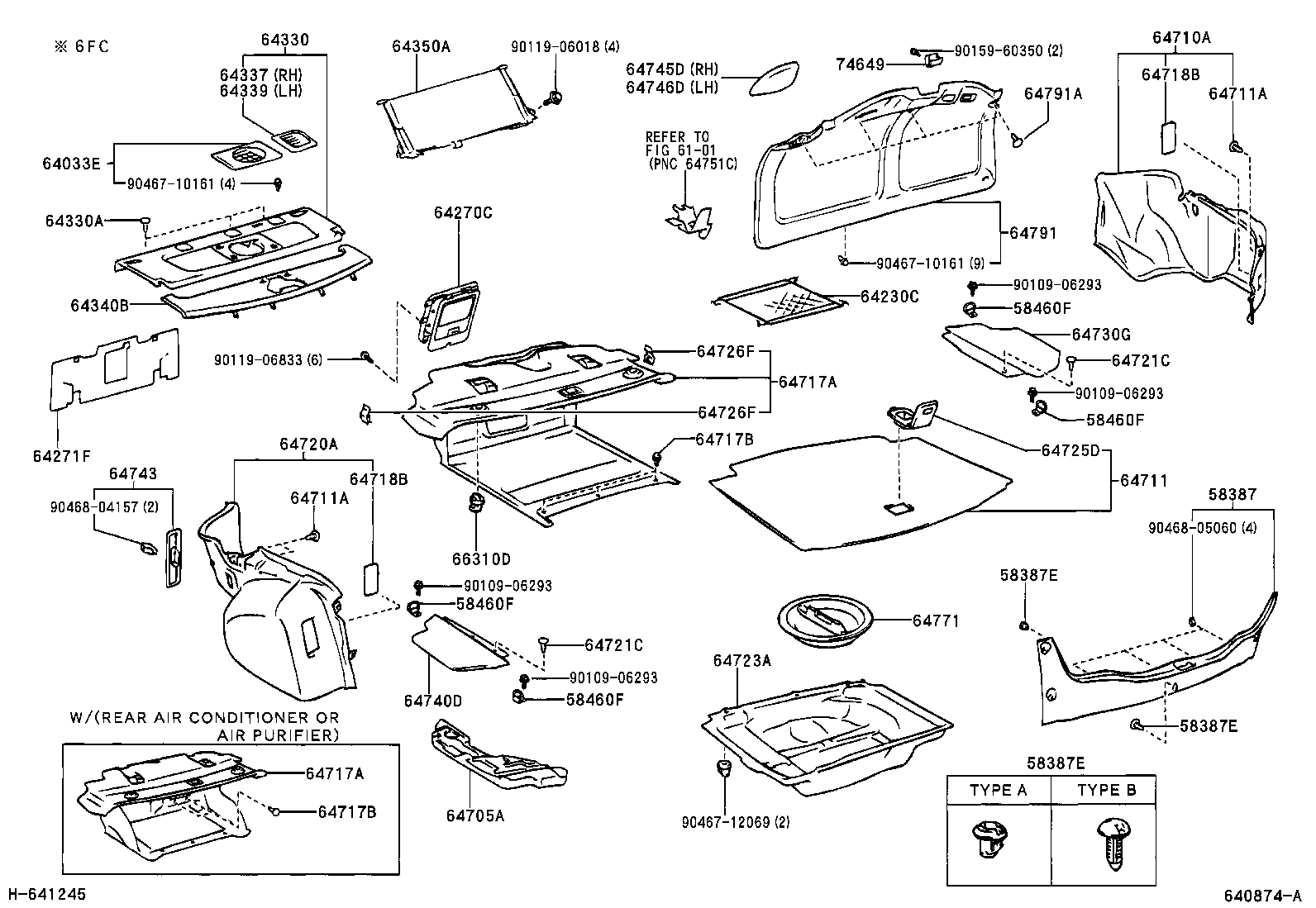

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-50010C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C0 |
UCF30 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM03,04,1#,2# |
5 | ||
| 90467-12069 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C0 |
UCF30 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM03,04,1#,2# |
5 | ||
| 90467-12069 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C0 |
UCF30 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM03,04,1#,2# |
5 | ||
| 90467-12069 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
UCF30 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
UCF30 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
UCF30 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
UCF30 |
4 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-50090E0 |
UCF30 SANDALWOOD,TRIM04 |
1 | ||
| 64033-50090C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 64033-50090B0 |
UCF30 DARK CHARCOAL,TRIM1# |
1 | ||
| 64033-50090E1 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 64230C - NET ASSY, ROOM PARTITION | ||||
| 64230-50010 |
UCF30 |
1 | ||
| 64270C - BOARD ASSY, ROOM PARTITION | ||||
| 64270-50010 |
UCF30..ARL,EUR |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-50060 |
UCF30 |
1 | ||
| 64271-50070 |
UCF30 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-50260E1 |
UCF30..ARL W(AIR PURIFIRE & REAR SUN SHADE & TETHER ANCHOR COVER),SANDALWOOD,TRIM04 |
1 | ||
| 64330-50260E0 |
UCF30..ARL W(AIR PURIFIRE & REAR SUN SHADE & TETHER ANCHOR COVER),CLOVEBROWN,TRIM03 |
1 | ||
| 64330-50260C0 |
UCF30..ARL W(AIR PURIFIRE & REAR SUN SHADE & TETHER ANCHOR COVER),BLACK,TRIM2# |
1 | ||
| 64330-50270C0 |
UCF30..ARL W(REAR SUN SHADE & TETHER ANCHOR COVER),BLACK,TRIM2# |
1 | ||
| 64330-50270E0 |
UCF30..ARL W(REAR SUN SHADE & TETHER ANCHOR COVER),CLOVEBROWN,TRIM03 |
1 | ||
| 64330-50270B0 |
UCF30..ARL W(REAR SUN SHADE & TETHER ANCHOR COVER),DARK CHARCOAL,TRIM1# |
1 | ||
| 64330-50260B0 |
UCF30..ARL W(AIR PURIFIRE & REAR SUN SHADE & TETHER ANCHOR COVER),DARK CHARCOAL,TRIM1# |
1 | ||
| 64330-50280E0 |
UCF30..ARL W(REAR AIR CONDITIONER & REAR SUN SHADE & TETHER ANCHOR COVER),CLOVEBROWN,TRIM03 |
1 | ||
| 64330-50280E1 |
UCF30..ARL W(REAR AIR CONDITIONER & REAR SUN SHADE & TETHER ANCHOR COVER),SANDALWOOD,TRIM04 |
1 | ||
| 64330-50280B0 |
UCF30..ARL W(REAR AIR CONDITIONER & REAR SUN SHADE & TETHER ANCHOR COVER),DARK CHARCOAL,TRIM1# |
1 | ||
| 64330-50280C0 |
UCF30..ARL W(REAR AIR CONDITIONER & REAR SUN SHADE & TETHER ANCHOR COVER),BLACK,TRIM2# |
1 | ||
| 64330-50270E1 |
UCF30..ARL W(REAR SUN SHADE & TETHER ANCHOR COVER),SANDALWOOD,TRIM04 |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0604922 |
UCF30 BLACK,TRIM03,04,1#,2# |
3 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-50030B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 64337-50030C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 64337-50030E1 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 64337-50030E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 64339 - GARNISH, PACKAGE TRAY TRIM, LH | ||||
| 64339-50040B0 |
UCF30 W(REAR AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 64339-50030B0 |
UCF30..ARL,EUR DK.CHARCOAL,TRIM1# |
1 | ||
| 64339-50030E0 |
UCF30..ARL,EUR SANDAL WOOD,TRIM04 |
1 | ||
| 64339-50040E1 |
UCF30 W(REAR AIR CONDITIONER),CLOVEBROWN,TRIM03 |
1 | ||
| 64339-50030C0 |
UCF30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 64339-50040C0 |
UCF30 W(REAR AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64339-50040E0 |
UCF30 W(REAR AIR CONDITIONER),SANDAL WOOD,TRIM04 |
1 | ||
| 64339-50030E1 |
UCF30..ARL,EUR CLOVEBROWN,TRIM03 |
1 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-50010C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 64340-50010B0 |
UCF30 DARK CHARCOAL,TRIM1# |
1 | ||
| 64340-50010E0 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 64340-50010E1 |
UCF30 SANDALWOOD,TRIM04 |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-50010 |
UCF30 |
1 | ||
| 64350-50011 |
UCF30 |
1 | ||
| 64705A - GUARD SUB-ASSY, SPARE WHEEL | ||||
| 64705-50021 |
UCF30 |
1 | ||
| 64705-50020 |
UCF30 |
1 | ||
| 64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64710-50130C0 |
UCF30..ARL,EUR OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64710-50140C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64701-50010C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64711A - CLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT) | ||||
| 90467-08186C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
4 | ||
| 64711A - CLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT) | ||||
| 90467-08186C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
4 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-50030C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64075-50010C0 |
UCF30..ARL,EUR OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-50030C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64075-50010C0 |
UCF30..ARL,EUR OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-08186C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),BLACK,TRIM03,04,1#,2# |
5 | ||
| 90467-08186C0 |
UCF30..ARL,EUR BLACK,TRIM03,04,1#,2# |
3 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-08186C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),BLACK,TRIM03,04,1#,2# |
5 | ||
| 90467-08186C0 |
UCF30..ARL,EUR BLACK,TRIM03,04,1#,2# |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-50030C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
2 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-50030C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
2 | ||
| 64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64720-50070C0 |
UCF30..ARL,EUR OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64720-50080C0 |
UCF30 W(REAR AIR CONDITIONER) OR W(AIR PURIFIER),OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
2 | ||
| 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER | ||||
| 64723-50020C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
UCF30 |
1 | ||
| 64725-50070 |
UCF30 |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
UCF30..ARL,EUR BLACK,TRIM03,04,1#,2# |
2 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
UCF30..ARL,EUR BLACK,TRIM03,04,1#,2# |
2 | ||
| 64730G - BOARD, DECK TRIM SIDE, RH | ||||
| 64731-50010C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64740D - BOARD, DECK TRIM SIDE, LH | ||||
| 64732-50010C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
1 | ||
| 64743 - COVER, SIDE TRIM TOOL BAG | ||||
| 64743-50010C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
1 | ||
| 64745D - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-50010C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64746D - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-50010C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-24020 |
UCF30 |
1 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-50090C0 |
UCF30 OFF BLACK,TRIM03,04,1#,2# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-08186C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
4 | ||
| 66310D - HOOK ASSY, ROPE | ||||
| 66311-50010 |
UCF30 |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-30010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90109-06293 | ||||
| 90119-06018 | ||||
| 90119-06833 | ||||
| 90159-60350 | ||||
| 90467-10161 | ||||
| 90467-12069 | ||||
| 90468-04157 | ||||
| 90468-05060 | ||||
| Linked diagrams | ||||
| 6101 | ||||
