UCF30R-AEAGKQ (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

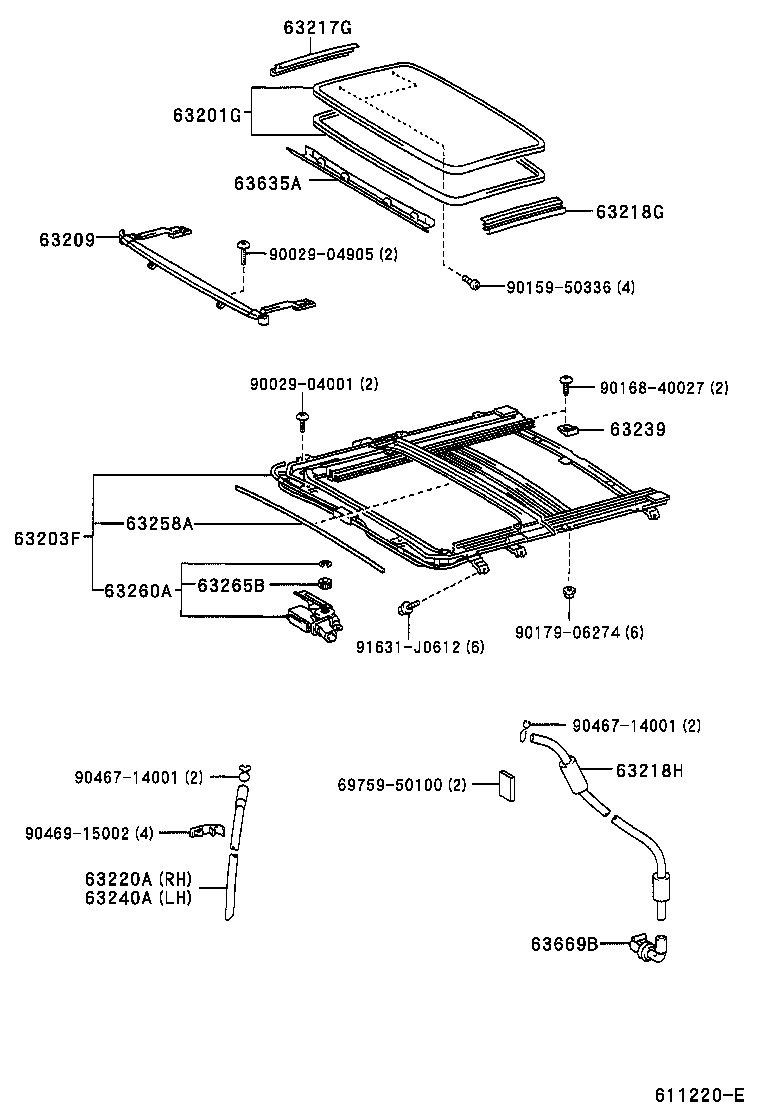

ILLUST NO. 2 OF 2(0008-0307)

Click highlighted areas on diagram

diagram 63201G 63203F 63209 63217G 63218G 63218H 63220A 63239 63240A 63258A 63260A 63265B 63635A 63669B 6975950100 9002904001 9002904905 9015950336 9016840027 9017906274 9046714001 9046714001 9046915002 91631J0612
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-50160

UCF30

*TEM,T=4.0,DK.GRAY

 1
63201-50161

UCF30

*TEM,T=4.0,DK.GRAY

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-50040

UCF30

 1
63203-50041

UCF30

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-50030

UCF30

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-50030

UCF30

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63217-50030

UCF30

 1
63218H - HOSE, SLIDING ROOF DRAIN
63247-50010

UCF30

 2
63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH
63220-50010

UCF30

 1
63239 - STOPPER, SLIDING ROOF PANEL
63239-50050

UCF30

 2
63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH
63240-50010

UCF30

 1
63258A - SEAL, SLIDE ROOF RAIN CHANNEL
63258-50030

UCF30

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-50051

UCF30

 1
63260-50050

UCF30

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-30020

UCF30

 1
63635A - GARNISH, SLIDING ROOF, FRONT
63635-50030

UCF30

 1
63669B - GROMMET, SLIDING ROOF DRAIN
63669-50010

UCF30

 2
Common parts
69759-50100
90029-04001
90029-04905
90159-50336
90168-40027
90179-06274
90467-14001
90469-15002
91631-J0612

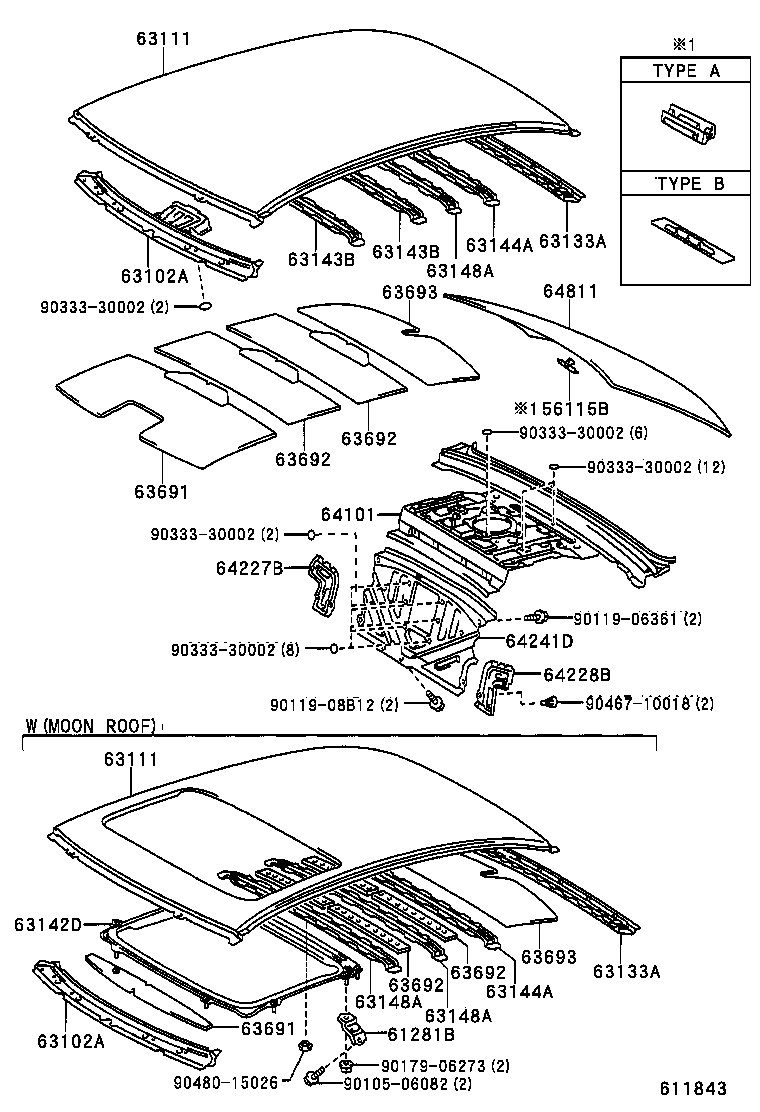

ILLUST NO. 1 OF 2(0008-0307)

Click highlighted areas on diagram

diagram 56115B 61281B 63102A 63102A 63111 63111 63133A 63133A 63142D 63143B 63143B 63144A 63144A 63148A 63148A 63148A 63691 63691 63692 63692 63692 63692 63693 63693 64101 64227B 64228B 64241D 64811 9010506082 9011906361 9011908B12 9017906273 9033330002 9033330002 9033330002 9033330002 9033330002 9046710018 9048015026
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100

UCF30

TYPE A:REFER TO ILLUSTRATION

 2
56116-22050

UCF30

TYPE B:REFER TO ILLUSTRATION

 2
61281B - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61281-50050

UCF30

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-50901

UCF30

 1
63102-50900

UCF30

W(MOON ROOF)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-50901

UCF30

 1
63102-50900

UCF30

W(MOON ROOF)

 1
63111 - PANEL, ROOF
63111-50060

UCF30

W(MOON ROOF)

 1
63111-50050

UCF30

 1
63111 - PANEL, ROOF
63111-50060

UCF30

W(MOON ROOF)

 1
63111-50050

UCF30

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-50030

UCF30

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-50030

UCF30

 1
63142D - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-50030

UCF30

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-50030

UCF30

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-50030

UCF30

 2
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-50020

UCF30

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-50020

UCF30

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-50030

UCF30

 1
63148-50030

UCF30

W(MOON ROOF)

 2
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-50030

UCF30

 1
63148-50030

UCF30

W(MOON ROOF)

 2
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-50030

UCF30

 1
63148-50030

UCF30

W(MOON ROOF)

 2
63691 - PAD, ROOF SILENCER, NO.21
63691-50050

UCF30

 1
63691-50070

UCF30

 1
63691-50060

UCF30

W(MOON ROOF)

 1
63691-50080

UCF30

W(MOON ROOF)

 1
63691 - PAD, ROOF SILENCER, NO.21
63691-50050

UCF30

 1
63691-50070

UCF30

 1
63691-50060

UCF30

W(MOON ROOF)

 1
63691-50080

UCF30

W(MOON ROOF)

 1
63692 - PAD, ROOF SILENCER, NO.22
63692-50060

UCF30

 2
63692-50050

UCF30

 2
63692-50040

UCF30

W(MOON ROOF)

 4
63692 - PAD, ROOF SILENCER, NO.22
63692-50060

UCF30

 2
63692-50050

UCF30

 2
63692-50040

UCF30

W(MOON ROOF)

 4
63692 - PAD, ROOF SILENCER, NO.22
63692-50060

UCF30

 2
63692-50050

UCF30

 2
63692-50040

UCF30

W(MOON ROOF)

 4
63692 - PAD, ROOF SILENCER, NO.22
63692-50060

UCF30

 2
63692-50050

UCF30

 2
63692-50040

UCF30

W(MOON ROOF)

 4
63693 - PAD, ROOF SILENCER, NO.23
63693-50030

UCF30

 1
63693-50040

UCF30

 1
63693 - PAD, ROOF SILENCER, NO.23
63693-50030

UCF30

 1
63693-50040

UCF30

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-50170

UCF30

 1
64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1
64227-50030

UCF30

 1
64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-50030

UCF30

 1
64241D - PANEL, ROOM PARTITION
64206-50030

UCF30

 1
64811 - GLASS, BACK WINDOW
64810-50330

UCF30

*UVCEHT,T=5.0,GREEN

 1
64810-50290

UCF30

*UVCEHT,T=5.0,GREEN

 1
Common parts
90105-06082
90119-06361
90119-08B12
90179-06273
90333-30002
90467-10018
90480-15026
