UCF30R-AEAGKQ (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

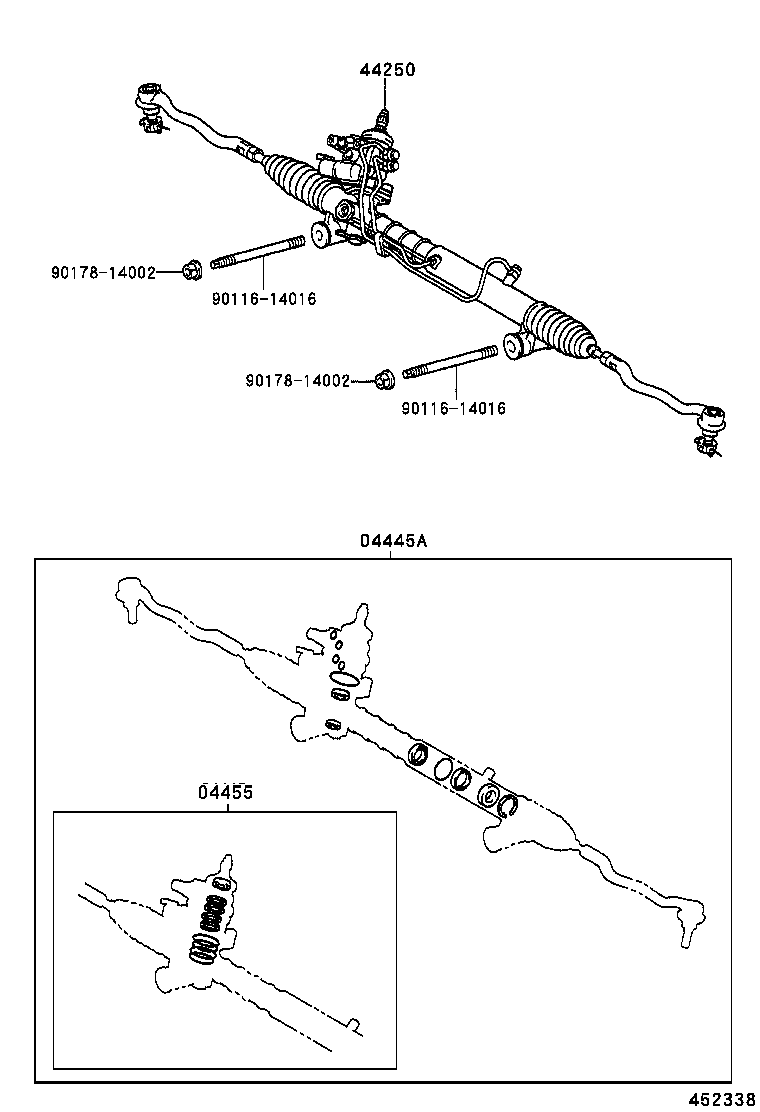

ILLUST NO. 1 OF 2(0008-0307)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-50040 |
UCF30 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-50040 |
UCF30 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44200-50170 |
UCF30..RHD |
1 | ||
| 44200-50171 |
UCF30..RHD |
1 | ||
| Common parts | ||||
| 90116-14016 | ||||
| 90178-14002 | ||||

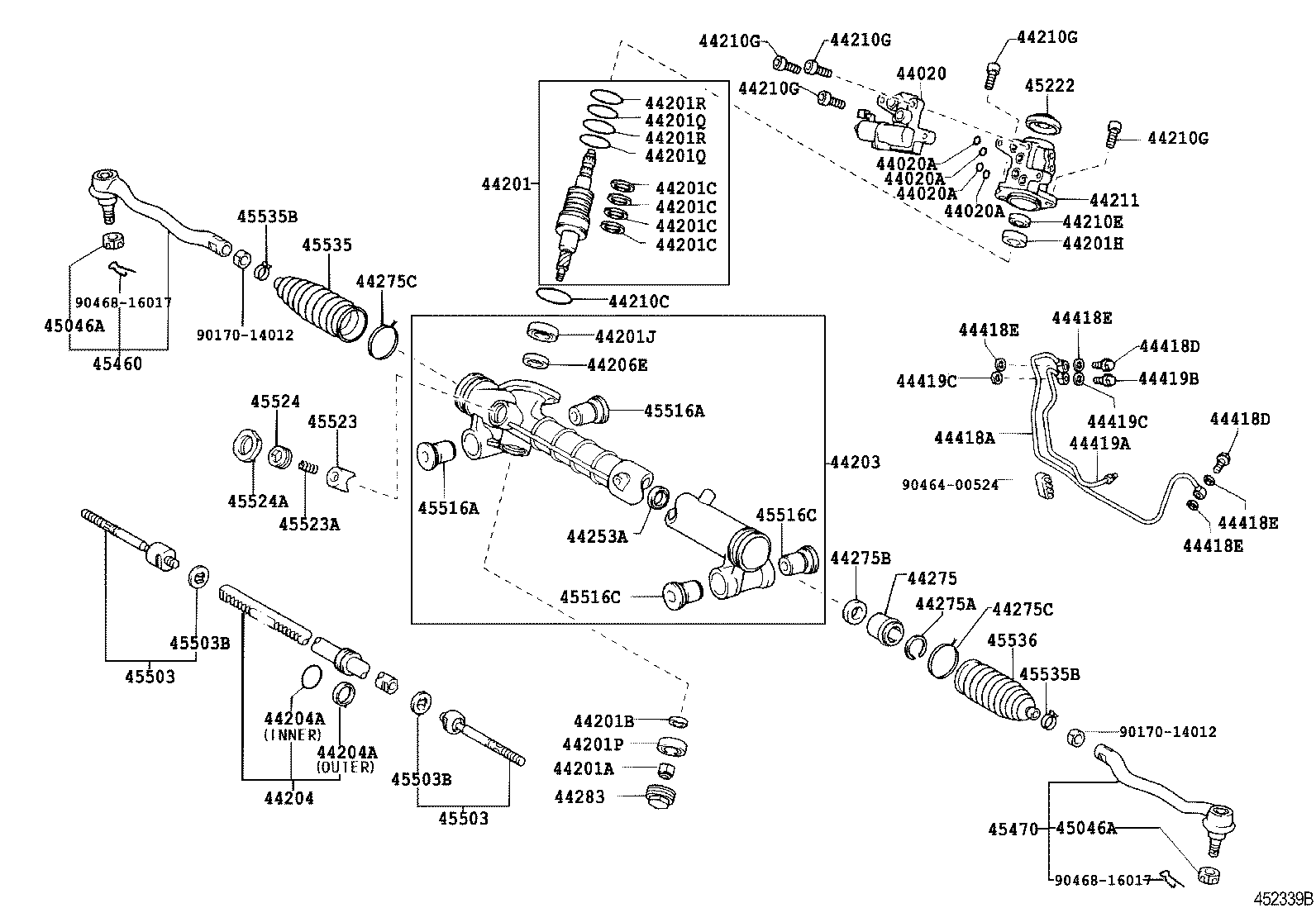

ILLUST NO. 2 OF 2(0008-0307)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-50120 |
UCF30..RHD |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
UCF30 |
4 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
UCF30 |
4 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
UCF30 |
4 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
UCF30 |
4 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-50170 |
UCF30..RHD |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61201 |
UCF30 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
UCF30 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
UCF30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
UCF30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
UCF30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33008 |
UCF30 |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
UCF30 |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
UCF30 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12014 |
UCF30 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
UCF30 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
UCF30 |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
UCF30 |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
UCF30 |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-50070 |
UCF30..RHD |
1 | ||
| 44203-50071 |
UCF30..RHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-50060 |
UCF30..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90560-40008 |
UCF30 OUTER |
1 | ||
| 90301-36004 |
UCF30 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90560-40008 |
UCF30 OUTER |
1 | ||
| 90301-36004 |
UCF30 INNER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30015 |
UCF30 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
UCF30 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19016 |
UCF30 |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
UCF30 |
5 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
UCF30 |
5 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
UCF30 |
5 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
UCF30 |
5 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
UCF30 |
5 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-50040 |
UCF30..RHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26026 |
UCF30 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-50020 |
UCF30 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
UCF30 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26025 |
UCF30 |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-14073 |
UCF30 |
2 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-14073 |
UCF30 |
2 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
UCF30 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-50080 |
UCF30..RHD |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
UCF30 |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
UCF30 |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-50060 |
UCF30..RHD |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
UCF30 |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
UCF30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
UCF30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
UCF30 |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-50010 |
UCF30 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-59045 |
UCF30 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-59045 |
UCF30 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59065 |
UCF30 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59065 |
UCF30 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18003 |
UCF30 OD=40 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18003 |
UCF30 OD=40 |
2 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-50030 |
UCF30 |
2 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-50030 |
UCF30 |
2 | ||
| 45516C - BUSH, STEERING RACK HOUSING, NO.2 | ||||
| 45516-50040 |
UCF30 |
2 | ||
| 45516C - BUSH, STEERING RACK HOUSING, NO.2 | ||||
| 45516-50040 |
UCF30 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45053-50020 |
UCF30 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29036 |
UCF30 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
UCF30 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
UCF30 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-50010 |
UCF30 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
UCF30 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
UCF30 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90464-00524 | ||||
| 90468-16017 | ||||
