UCF30R-AEAGKQ (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008-0307)

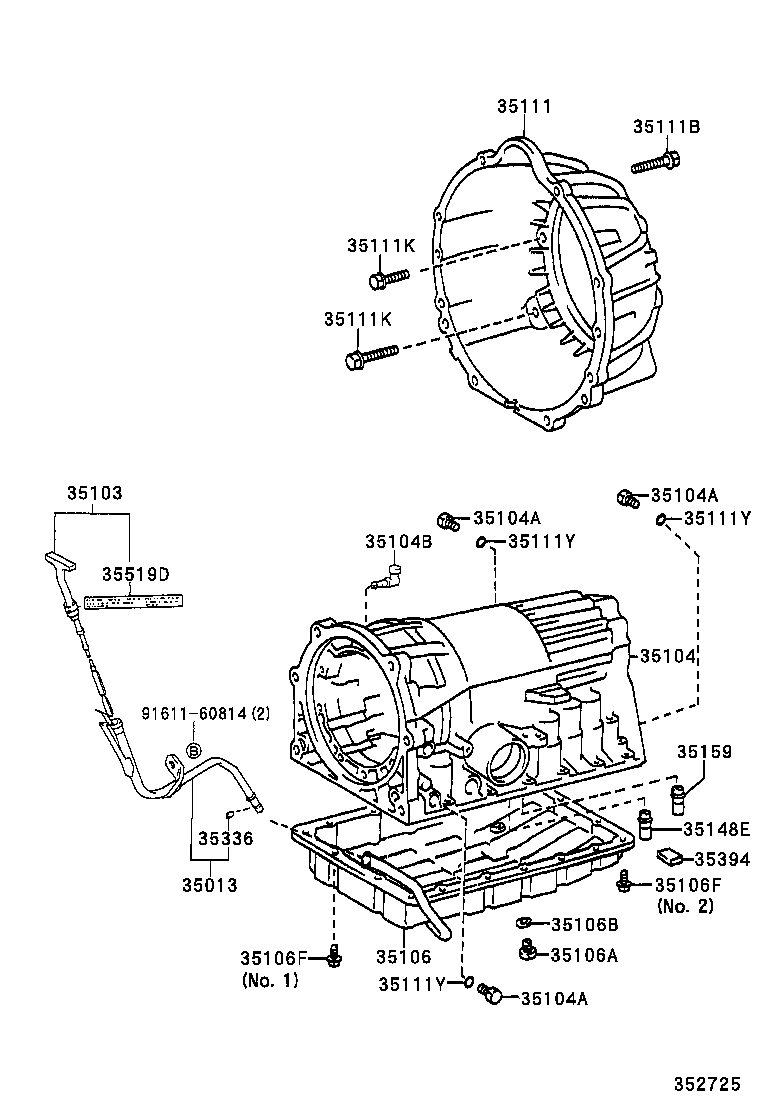

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-50030 |
UCF30 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-50040 |
UCF30 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30200 |
UCF30 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UCF30 |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UCF30 |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UCF30 |
3 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
UCF30 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-50030 |
UCF30 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
UCF30 |
1 | ||
| 90341-10018 |
UCF30 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-50010 |
UCF30 |
1 | ||
| 35178-30010 |
UCF30 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06866 |
UCF30 NO.2 |
1 | ||
| 90119-06513 |
UCF30 NO.1 |
18 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06866 |
UCF30 NO.2 |
1 | ||
| 90119-06513 |
UCF30 NO.1 |
18 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-50010 |
UCF30 |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 91612-61045 |
UCF30 *10-1.25PX45-30,NO.1 |
4 | ||
| 91619-61250 |
UCF30 *12-1.25PX50-30,NO.2 |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 |
UCF30 *10-1.5PX35-30 |
4 | ||
| 90119-12255 |
UCF30 *12-1.75PX45-30 |
1 | ||
| 90119-12036 |
UCF30 *12-1.25PX80-30 |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 |
UCF30 *10-1.5PX35-30 |
4 | ||
| 90119-12255 |
UCF30 *12-1.75PX45-30 |
1 | ||
| 90119-12036 |
UCF30 *12-1.25PX80-30 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UCF30 |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UCF30 |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UCF30 |
3 | ||
| 35148E - GASKET, BRAKE DRUM, NO.2 | ||||
| 35148-30010 |
UCF30 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30020 |
UCF30 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
UCF30 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
UCF30 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
UCF30 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
