UCF30L-AETGKW (2003)
Toyota Lexus Ls430

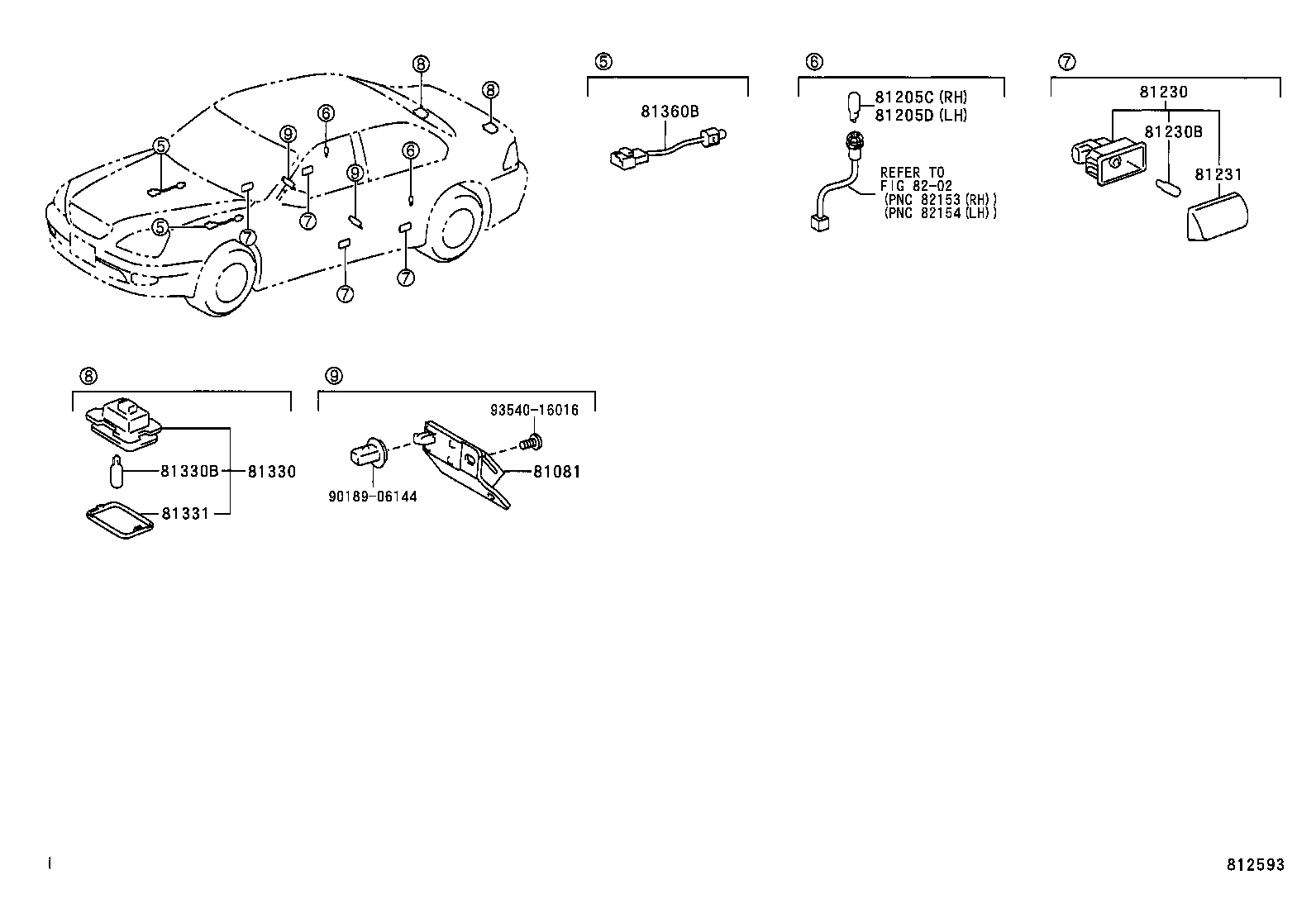

ILLUST NO. 2 OF 2(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-50010 |
UCF30 |
2 | ||
| 81205C - BULB, ASH RECEPTACLE LAMP, REAR RH | ||||
| 90981-11041 |
UCF30 |
1 | ||
| 90981-11041 |
UCF30 |
1 | ||
| 81205D - BULB, ASH RECEPTACLE LAMP, REAR LH | ||||
| 90981-11041 |
UCF30 |
1 | ||
| 90981-11041 |
UCF30 |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-50060 |
UCF30..EUR |
4 | ||
| 81230-50060 |
UCF30..EUR |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
UCF30 12V 3.8W |
4 | ||
| 90981-11020 |
UCF30 12V 3.8W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50060 |
UCF30..EUR |
4 | ||
| 81231-50060 |
UCF30..EUR |
4 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
UCF30 |
2 | ||
| 81330-50021 |
UCF30 |
2 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
UCF30 12V 3.8W |
2 | ||
| 90981-11020 |
UCF30 12V 3.8W |
2 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
UCF30 |
2 | ||
| 81331-50010 |
UCF30 |
2 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 81090-50010 |
UCF30 12V 1.8W |
2 | ||
| 81090-50010 |
UCF30 12V 1.8W |
2 | ||
| Common parts | ||||
| 90189-06144 | ||||
| 93540-16016 | ||||
| Linked diagrams | ||||
| 8202 | ||||

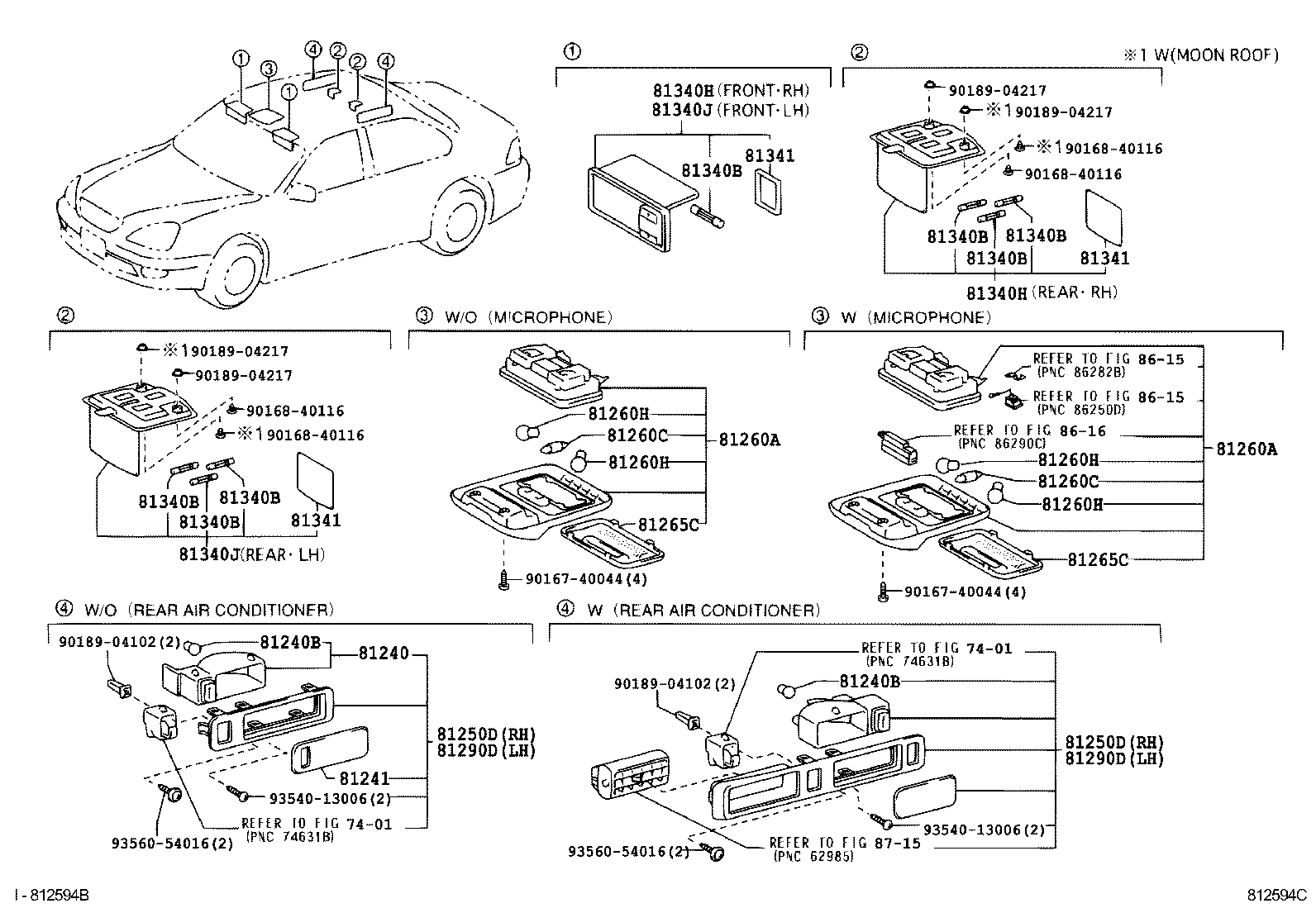

ILLUST NO. 1 OF 2(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-50080A1 |
UCF30 ECRU,TRIM03,RH |
1 | ||
| 81240-50080B0 |
UCF30 MD.CHARCOAL,TRIM1#,2#,RH |
1 | ||
| 81240-50090A1 |
UCF30 ECRU,TRIM03,LH |
1 | ||
| 81240-50080A0 |
UCF30 IVORY,TRIM04,RH |
1 | ||
| 81240-50090B0 |
UCF30 MD.CHARCOAL,TRIM1#,2#,LH |
1 | ||
| 81240-50100B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24,RH |
1 | ||
| 81240-50090A0 |
UCF30 IVORY,TRIM04,LH |
1 | ||
| 81240-50100A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07,RH |
1 | ||
| 81240-50110B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24,LH |
1 | ||
| 81240-50100A0 |
UCF30..ARL,EUR ECRU,TRIM00,RH |
1 | ||
| 81240-50110A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07,LH |
1 | ||
| 81240-50110A0 |
UCF30..ARL,EUR ECRU,TRIM00,LH |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-12020 |
UCF30 12V 8W |
2 | ||
| 90981-12020 |
UCF30 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-12020 |
UCF30 12V 8W |
2 | ||
| 90981-12020 |
UCF30 12V 8W |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-50110 |
UCF30..ARL,EUR RH |
1 | ||
| 81241-50120 |
UCF30 LH |
1 | ||
| 81241-50110 |
UCF30 RH |
1 | ||
| 81241-50120 |
UCF30..ARL,EUR LH |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-50110B0 |
UCF30..ARL,EUR MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81250-50110A0 |
UCF30..ARL,EUR IVORY,TRIM04 |
1 | ||
| 81250-50120A1 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM03 |
1 | ||
| 81250-50120B0 |
UCF30 W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81250-50110A1 |
UCF30..ARL,EUR ECRU,TRIM03 |
1 | ||
| 81250-50140B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81250-50130A1 |
UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
1 | ||
| 81250-50140A0 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81250-50130A0 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00 |
1 | ||
| 81250-50120A0 |
UCF30 W(REAR AIR CONDITIONER),IVORY,TRIM04 |
1 | ||
| 81250-50140A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81250-50130B0 |
UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-50110B0 |
UCF30..ARL,EUR MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81250-50110A0 |
UCF30..ARL,EUR IVORY,TRIM04 |
1 | ||
| 81250-50120A1 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM03 |
1 | ||
| 81250-50120B0 |
UCF30 W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81250-50110A1 |
UCF30..ARL,EUR ECRU,TRIM03 |
1 | ||
| 81250-50140B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81250-50130A1 |
UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
1 | ||
| 81250-50140A0 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81250-50130A0 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00 |
1 | ||
| 81250-50120A0 |
UCF30 W(REAR AIR CONDITIONER),IVORY,TRIM04 |
1 | ||
| 81250-50140A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81250-50130B0 |
UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-50130A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81260-50170A0 |
UCF30 W(MOON ROOF),IVORY,TRIM04 |
1 | ||
| 81260-50170B0 |
UCF30 W(MOON ROOF),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81260-50130A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81260-50170A1 |
UCF30 W(MOON ROOF),ECRU,TRIM03 |
1 | ||
| 81260-50130A2 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81260-50170B1 |
UCF30..ARL,EUR W(MOON ROOF),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50130B1 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50170A1 |
UCF30..ARL,EUR W(MOON ROOF),ECRU,TRIM00 |
1 | ||
| 81260-50130B0 |
UCF30 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81260-50320B0 |
UCF30..LHD W(MICROPHONE),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50130A1 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81260-50320A1 |
UCF30..LHD W(MICROPHONE),NEW IVORY,TRIM07 |
1 | ||
| 81260-50340A0 |
UCF30..LHD W(MICROPHONE & MOON ROOF),ECRU,TRIM00 |
1 | ||
| 81260-50170A2 |
UCF30..ARL,EUR W(MOON ROOF),NEW IVORY,TRIM07 |
1 | ||
| 81260-50340B0 |
UCF30..LHD W(MICROPHONE & MOON ROOF),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50320A0 |
UCF30..LHD W(MICROPHONE),ECRU,TRIM00 |
1 | ||
| 81260-50340A1 |
UCF30..LHD W(MICROPHONE & MOON ROOF),NEW IVORY,TRIM07 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-50130A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81260-50170A0 |
UCF30 W(MOON ROOF),IVORY,TRIM04 |
1 | ||
| 81260-50170B0 |
UCF30 W(MOON ROOF),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81260-50130A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81260-50170A1 |
UCF30 W(MOON ROOF),ECRU,TRIM03 |
1 | ||
| 81260-50130A2 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81260-50170B1 |
UCF30..ARL,EUR W(MOON ROOF),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50130B1 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50170A1 |
UCF30..ARL,EUR W(MOON ROOF),ECRU,TRIM00 |
1 | ||
| 81260-50130B0 |
UCF30 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81260-50320B0 |
UCF30..LHD W(MICROPHONE),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50130A1 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81260-50320A1 |
UCF30..LHD W(MICROPHONE),NEW IVORY,TRIM07 |
1 | ||
| 81260-50340A0 |
UCF30..LHD W(MICROPHONE & MOON ROOF),ECRU,TRIM00 |
1 | ||
| 81260-50170A2 |
UCF30..ARL,EUR W(MOON ROOF),NEW IVORY,TRIM07 |
1 | ||
| 81260-50340B0 |
UCF30..LHD W(MICROPHONE & MOON ROOF),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81260-50320A0 |
UCF30..LHD W(MICROPHONE),ECRU,TRIM00 |
1 | ||
| 81260-50340A1 |
UCF30..LHD W(MICROPHONE & MOON ROOF),NEW IVORY,TRIM07 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
UCF30 12V 8W |
1 | ||
| 90981-14004 |
UCF30 12V 8W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
UCF30 12V 8W |
1 | ||
| 90981-14004 |
UCF30 12V 8W |
1 | ||
| 81260H - BULB(FOR MAP LAMP), NO.2 | ||||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 81260H - BULB(FOR MAP LAMP), NO.2 | ||||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 81260H - BULB(FOR MAP LAMP), NO.2 | ||||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 81260H - BULB(FOR MAP LAMP), NO.2 | ||||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 90981-12005 |
UCF30 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-50170 |
UCF30 W(MOON ROOF) |
1 | ||
| 81265-50130 |
UCF30 |
1 | ||
| 81265-50130 |
UCF30 |
1 | ||
| 81265-50170 |
UCF30 W(MOON ROOF) |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-50170 |
UCF30 W(MOON ROOF) |
1 | ||
| 81265-50130 |
UCF30 |
1 | ||
| 81265-50130 |
UCF30 |
1 | ||
| 81265-50170 |
UCF30 W(MOON ROOF) |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-50110A0 |
UCF30..ARL,EUR IVORY,TRIM04 |
1 | ||
| 81290-50120A0 |
UCF30 W(REAR AIR CONDITIONER),IVORY,TRIM04 |
1 | ||
| 81290-50110A1 |
UCF30..ARL,EUR ECRU,TRIM03 |
1 | ||
| 81290-50120B0 |
UCF30 W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81290-50130B0 |
UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81290-50130A0 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00 |
1 | ||
| 81290-50130A1 |
UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
1 | ||
| 81290-50110B0 |
UCF30..ARL,EUR MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81290-50120A1 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM03 |
1 | ||
| 81290-50140A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81290-50140B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81290-50140A0 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-50110A0 |
UCF30..ARL,EUR IVORY,TRIM04 |
1 | ||
| 81290-50120A0 |
UCF30 W(REAR AIR CONDITIONER),IVORY,TRIM04 |
1 | ||
| 81290-50110A1 |
UCF30..ARL,EUR ECRU,TRIM03 |
1 | ||
| 81290-50120B0 |
UCF30 W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81290-50130B0 |
UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81290-50130A0 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00 |
1 | ||
| 81290-50130A1 |
UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
1 | ||
| 81290-50110B0 |
UCF30..ARL,EUR MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81290-50120A1 |
UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM03 |
1 | ||
| 81290-50140A1 |
UCF30..ARL,EUR NEW IVORY,TRIM07 |
1 | ||
| 81290-50140B0 |
UCF30..ARL,EUR NEW GRAY,TRIM1#,21,24 |
1 | ||
| 81290-50140A0 |
UCF30..ARL,EUR ECRU,TRIM00 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 90981-14007 |
UCF30 12V 3W,REAR |
6 | ||
| 90981-14007 |
UCF30 12V 3W,FRONT |
2 | ||
| 81340H - LAMP ASSY, VANITY, RH | ||||
| 81350-50110A3 |
UCF30..LHD..EUR TAIWAN SPEC,IVORY,TRIM04 |
1 | ||
| 81350-50110B2 |
UCF30..LHD..EUR TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50150B1 |
UCF30..EUR ECSAINE TYPE,NEW GRAY,TRIM2#,REAR |
1 | ||
| 81350-50110A5 |
UCF30..LHD..EUR TAIWAN SPEC,NEW IVORY,TRIM07,FRONT |
1 | ||
| 81350-50110A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM00,FRONT |
1 | ||
| 81340-50160A1 |
UCF30 NEW IVORY,TRIM07,REAR |
1 | ||
| 81350-50120B0 |
UCF30 MEDIUM CHARCOAL,TRIM1#,2# |
1 | ||
| 81350-50110A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM03 |
1 | ||
| 81350-50120A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81350-50130B1 |
UCF30..EUR NEW GRAY,TRIM2#,FRONT |
1 | ||
| 81340-50160B1 |
UCF30 NEW GRAY,TRIM1#,21,24,REAR |
1 | ||
| 81350-50120B2 |
UCF30 NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81350-50120A1 |
UCF30 ECRU,TRIM00,FRONT |
1 | ||
| 81350-50130B0 |
UCF30..EUR CHARCOAL,TRIM1#,20,29 |
1 | ||
| 81340-50160A2 |
UCF30 ECRU,TRIM00,REAR |
1 | ||
| 81350-50120A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81350-50110B3 |
UCF30..LHD..EUR TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81350-50120A2 |
UCF30 NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340H - LAMP ASSY, VANITY, RH | ||||
| 81350-50110A3 |
UCF30..LHD..EUR TAIWAN SPEC,IVORY,TRIM04 |
1 | ||
| 81350-50110B2 |
UCF30..LHD..EUR TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50150B1 |
UCF30..EUR ECSAINE TYPE,NEW GRAY,TRIM2#,REAR |
1 | ||
| 81350-50110A5 |
UCF30..LHD..EUR TAIWAN SPEC,NEW IVORY,TRIM07,FRONT |
1 | ||
| 81350-50110A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM00,FRONT |
1 | ||
| 81340-50160A1 |
UCF30 NEW IVORY,TRIM07,REAR |
1 | ||
| 81350-50120B0 |
UCF30 MEDIUM CHARCOAL,TRIM1#,2# |
1 | ||
| 81350-50110A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM03 |
1 | ||
| 81350-50120A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81350-50130B1 |
UCF30..EUR NEW GRAY,TRIM2#,FRONT |
1 | ||
| 81340-50160B1 |
UCF30 NEW GRAY,TRIM1#,21,24,REAR |
1 | ||
| 81350-50120B2 |
UCF30 NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81350-50120A1 |
UCF30 ECRU,TRIM00,FRONT |
1 | ||
| 81350-50130B0 |
UCF30..EUR CHARCOAL,TRIM1#,20,29 |
1 | ||
| 81340-50160A2 |
UCF30 ECRU,TRIM00,REAR |
1 | ||
| 81350-50120A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81350-50110B3 |
UCF30..LHD..EUR TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81350-50120A2 |
UCF30 NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340J - LAMP ASSY, VANITY, LH | ||||
| 81340-50130A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81340-50130A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81340-50120A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM03 |
1 | ||
| 81340-50120A3 |
UCF30..LHD..EUR TAIWAN SPEC,IVORY,TRIM04 |
1 | ||
| 81340-50130A1 |
UCF30 ECRU,TRIM00,FRONT |
1 | ||
| 81340-50120B2 |
UCF30..LHD..EUR TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50130B0 |
UCF30 MEDIUM CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50140B0 |
UCF30..EUR CHARCOAL,TRIM1#,20,29 |
1 | ||
| 81340-50130B2 |
UCF30 NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81340-50120B3 |
UCF30..LHD..EUR TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81340-50130A2 |
UCF30 NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340-50120A5 |
UCF30..LHD..EUR TAIWAN SPEC,NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340-50120A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM00,FRONT |
1 | ||
| 81340-50140B1 |
UCF30..EUR NEW GRAY,TRIM2#,FRONT |
1 | ||
| 81340-50160B1 |
UCF30 NEW GRAY,TRIM1#,21,24,REAR |
1 | ||
| 81340-50160A1 |
UCF30 NEW IVORY,TRIM07,REAR |
1 | ||
| 81340-50160A2 |
UCF30 ECRU,TRIM00,REAR |
1 | ||
| 81340-50150B1 |
UCF30..EUR ECSAINE TYPE,NEW GRAY,TRIM2#,REAR |
1 | ||
| 81340J - LAMP ASSY, VANITY, LH | ||||
| 81340-50130A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81340-50130A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 81340-50120A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM03 |
1 | ||
| 81340-50120A3 |
UCF30..LHD..EUR TAIWAN SPEC,IVORY,TRIM04 |
1 | ||
| 81340-50130A1 |
UCF30 ECRU,TRIM00,FRONT |
1 | ||
| 81340-50120B2 |
UCF30..LHD..EUR TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50130B0 |
UCF30 MEDIUM CHARCOAL,TRIM1#,2# |
1 | ||
| 81340-50140B0 |
UCF30..EUR CHARCOAL,TRIM1#,20,29 |
1 | ||
| 81340-50130B2 |
UCF30 NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81340-50120B3 |
UCF30..LHD..EUR TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT |
1 | ||
| 81340-50130A2 |
UCF30 NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340-50120A5 |
UCF30..LHD..EUR TAIWAN SPEC,NEW IVORY,TRIM07,FRONT |
1 | ||
| 81340-50120A4 |
UCF30..LHD..EUR TAIWAN SPEC,ECRU,TRIM00,FRONT |
1 | ||
| 81340-50140B1 |
UCF30..EUR NEW GRAY,TRIM2#,FRONT |
1 | ||
| 81340-50160B1 |
UCF30 NEW GRAY,TRIM1#,21,24,REAR |
1 | ||
| 81340-50160A1 |
UCF30 NEW IVORY,TRIM07,REAR |
1 | ||
| 81340-50160A2 |
UCF30 ECRU,TRIM00,REAR |
1 | ||
| 81340-50150B1 |
UCF30..EUR ECSAINE TYPE,NEW GRAY,TRIM2#,REAR |
1 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-50150 |
UCF30 REAR |
2 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-50150 |
UCF30 REAR |
2 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-30090 |
UCF30 FRONT |
2 | ||
| 81341-50150 |
UCF30 REAR |
2 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40116 | ||||
| 90189-04102 | ||||
| 90189-04217 | ||||
| 93540-13006 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8615 | ||||
| 8616 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
