UCF30L-AETGKW (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

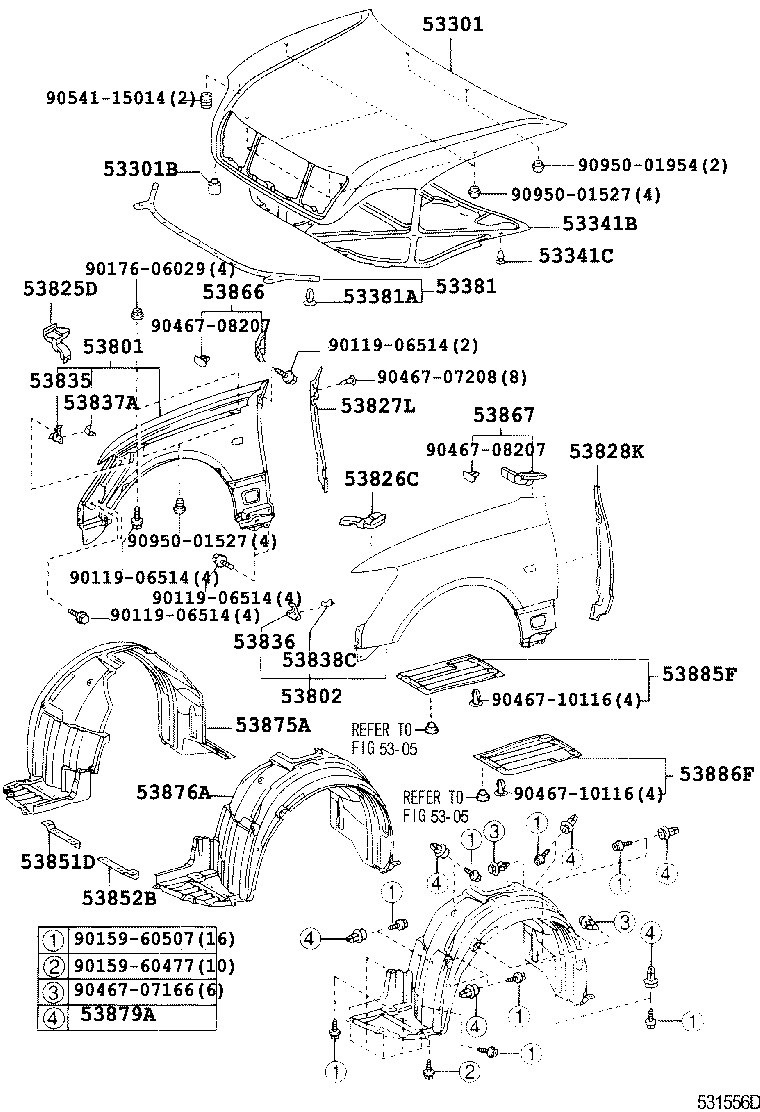

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-50060 |
UCF30 |
1 | ||
| 53301-50040 |
UCF30 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 53388-50020 |
UCF30 |
2 | ||
| 90541-07049 |
UCF30 |
3 | ||
| 53388-50030 |
UCF30 |
3 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-50040 |
UCF30 |
1 | ||
| 53341-50050 |
UCF30 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
UCF30 |
10 | ||
| 90467-08124 |
UCF30 |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-50061 |
UCF30 |
1 | ||
| 53381-50060 |
UCF30 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08044 |
UCF30 |
13 | ||
| 90467-08044 |
UCF30 |
13 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-50110 |
UCF30 |
1 | ||
| 53801-50150 |
UCF30 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-50150 |
UCF30 |
1 | ||
| 53802-50110 |
UCF30 |
1 | ||
| 53825D - PATCH, FRONT FENDER, UPPER RH | ||||
| 53825-50030 |
UCF30 |
1 | ||
| 53826C - PATCH, FRONT FENDER, UPPER LH | ||||
| 53826-50030 |
UCF30 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-50030 |
UCF30 |
1 | ||
| 53827-50030 |
UCF30 |
1 | ||
| 53827-50040 |
UCF30 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-50030 |
UCF30 |
1 | ||
| 53828-50030 |
UCF30 |
1 | ||
| 53828-50040 |
UCF30 |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-50040 |
UCF30 |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-50040 |
UCF30 |
1 | ||
| 53837A - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-50010 |
UCF30 |
1 | ||
| 53838C - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-50020 |
UCF30 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-50030 |
UCF30 |
1 | ||
| 53851-50020 |
UCF30 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-50010 |
UCF30 |
1 | ||
| 53852-50020 |
UCF30 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-50031 |
UCF30 |
1 | ||
| 53866-50030 |
UCF30 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-50031 |
UCF30 |
1 | ||
| 53867-50030 |
UCF30 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-50030 |
UCF30 |
1 | ||
| 53805-50020 |
UCF30 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-50020 |
UCF30 |
1 | ||
| 53806-50030 |
UCF30 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
UCF30 |
14 | ||
| 53879-50010 |
UCF30 |
14 | ||
| 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH | ||||
| 53885-50010 |
UCF30 |
1 | ||
| 53885-50010 |
UCF30 |
1 | ||
| 53885-50011 |
UCF30 |
1 | ||
| 53886F - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-50010 |
UCF30 |
1 | ||
| 53886-50010 |
UCF30 |
1 | ||
| 53886-50011 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90159-60477 | ||||
| 90159-60507 | ||||
| 90176-06029 | ||||
| 90467-07166 | ||||
| 90467-07208 | ||||
| 90467-08207 | ||||
| 90467-10116 | ||||
| 90541-15014 | ||||
| 90950-01527 | ||||
| 90950-01954 | ||||
| Linked diagrams | ||||
| 5305 | ||||
