UCF30L-AETGKV (2003)
Toyota Lexus Ls430

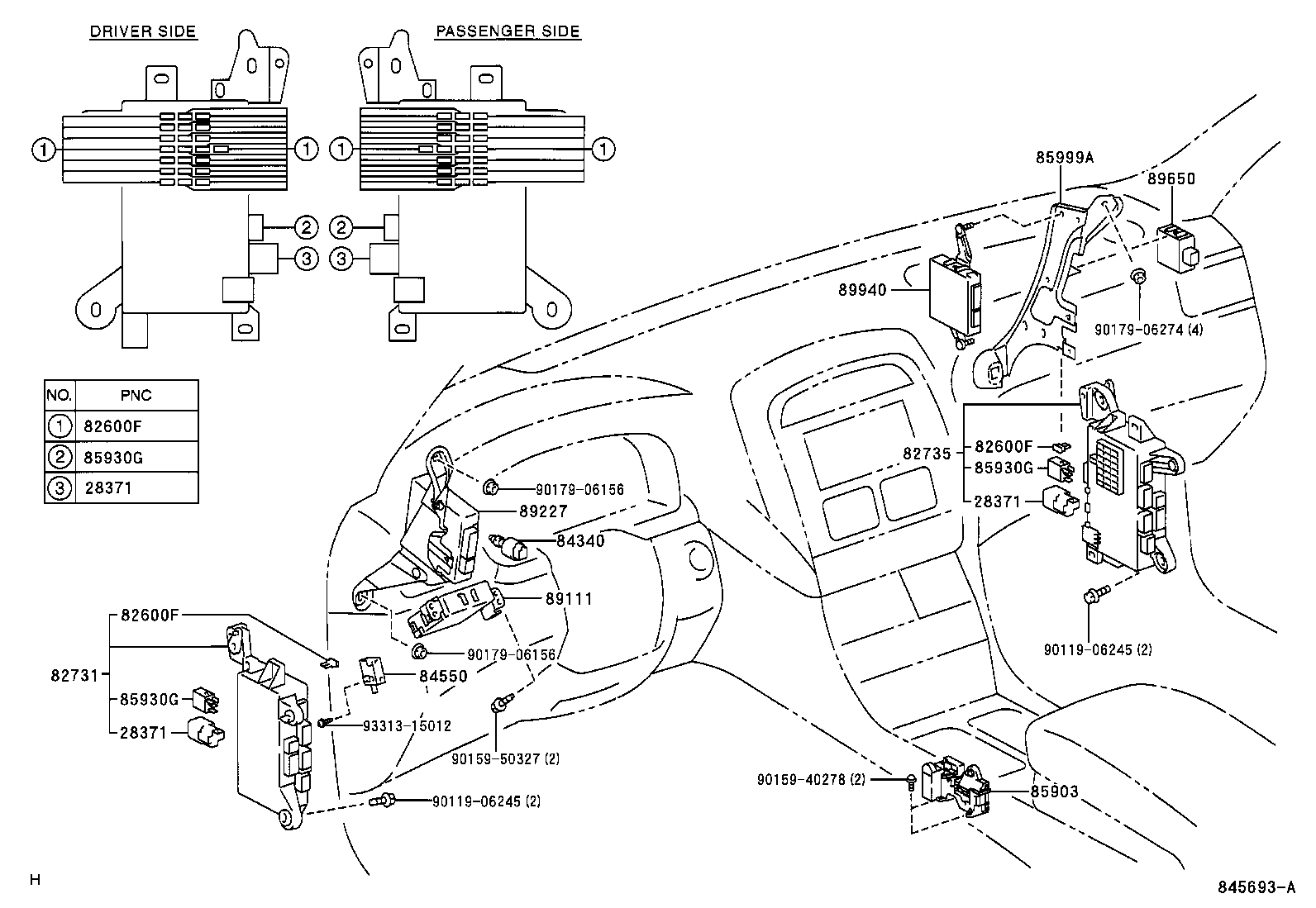

ILLUST NO. 3 OF 7(0307- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02016 |
3UZFE..UCF30 |
4 | ||
| 90987-02025 |
3UZFE..UCF30 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02016 |
3UZFE..UCF30 |
4 | ||
| 90987-02025 |
3UZFE..UCF30 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02016 |
3UZFE..UCF30 |
4 | ||
| 90987-02025 |
3UZFE..UCF30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09015 |
UCF30 2A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09015 |
UCF30 2A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09015 |
UCF30 2A,MINI FUSE |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-50080 |
UCF30..LHD |
1 | ||
| 82730-50120 |
UCF30..LHD |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-50140 |
UCF30..LHD |
1 | ||
| 82730-50100 |
UCF30..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
UCF30 |
1 | ||
| 84340-30110 |
UCF30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
UCF30 |
1 | ||
| 84550-30080 |
UCF30 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-50060 |
UCF30..LHD |
1 | ||
| 85903-50020 |
UCF30..LHD |
1 | ||
| 85903-50040 |
UCF30..LHD W(SMART KEY SYSTEM) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02020 |
UCF30 |
3 | ||
| 90987-02020 |
UCF30 |
3 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02020 |
UCF30 |
3 | ||
| 90987-02020 |
UCF30 |
3 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02020 |
UCF30 |
3 | ||
| 90987-02020 |
UCF30 |
3 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-50190 |
UCF30..LHD |
1 | ||
| 85999-50200 |
UCF30..LHD |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-50610 |
UCF30..GCC W(REAR AIR CONDITIONER) |
1 | ||
| 89100-50F10 |
UCF30..GCC W(NAVIGATION SYSTEM & REAR AIR CONDITIONER & REAR AUDIO) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-50110 |
UCF30..LHD |
1 | ||
| 89227-50100 |
UCF30..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-50130 |
UCF30 |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-50020 |
UCF30..LHD |
1 | ||
| Common parts | ||||
| 90119-06245 | ||||
| 90159-40278 | ||||
| 90159-50327 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 93313-15012 | ||||

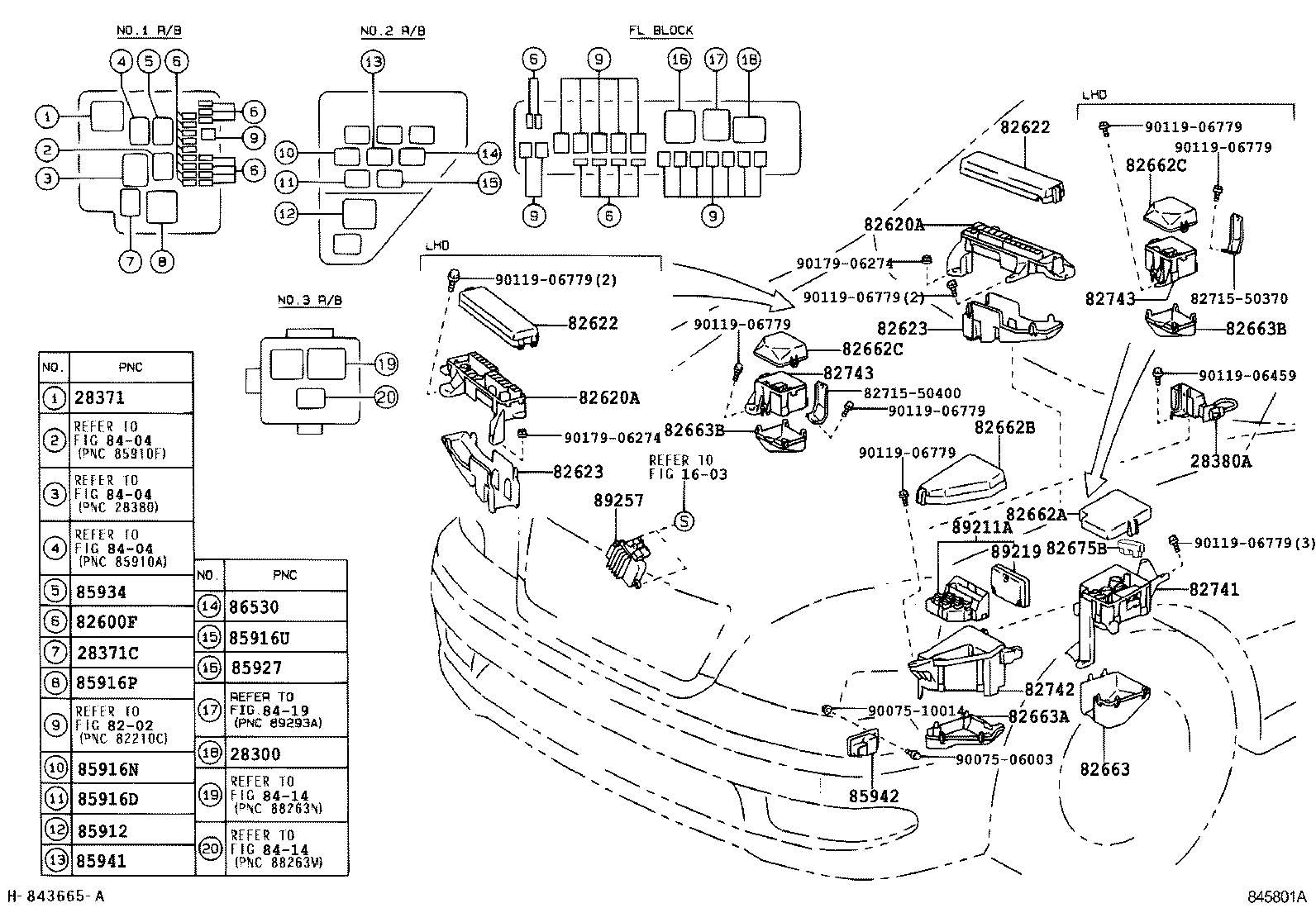

ILLUST NO. 2 OF 7(0307- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3UZFE..UCF30 |
1 | ||
| 28300-10020 |
3UZFE..UCF30 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02016 |
3UZFE..UCF30 |
4 | ||
| 90987-02025 |
3UZFE..UCF30 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02012 |
3UZFE..UCF30 |
1 | ||
| 90987-02012 |
3UZFE..UCF30 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50140 |
3UZFE..UCF30 |
1 | ||
| 23080-50090 |
3UZFE..UCF30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
UCF30 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
UCF30 25A,MINI FUSE |
1 | ||
| 90982-09010 |
UCF30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
UCF30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
UCF30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
UCF30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
UCF30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09015 |
UCF30 2A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50080 |
UCF30..GCC |
1 | ||
| 82620-50080 |
UCF30..GCC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50080 |
UCF30..GCC |
1 | ||
| 82620-50080 |
UCF30..GCC |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-50040 |
UCF30..ARL,GCC |
1 | ||
| 82622-50020 |
UCF30..ARL,GCC |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-50040 |
UCF30..ARL,GCC |
1 | ||
| 82622-50020 |
UCF30..ARL,GCC |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-50010 |
UCF30 |
1 | ||
| 82623-50010 |
UCF30 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-50010 |
UCF30 |
1 | ||
| 82623-50010 |
UCF30 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-50070 |
UCF30 |
1 | ||
| 82662-50110 |
UCF30 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-50080 |
UCF30 |
1 | ||
| 82662-50080 |
UCF30 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-50100 |
UCF30 |
1 | ||
| 82662-50090 |
UCF30 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-50100 |
UCF30 |
1 | ||
| 82662-50090 |
UCF30 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-50040 |
UCF30 |
1 | ||
| 82663-50040 |
UCF30 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-50050 |
UCF30 |
1 | ||
| 82663-50050 |
UCF30 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-50060 |
UCF30 |
1 | ||
| 82663-50060 |
UCF30 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-50060 |
UCF30 |
1 | ||
| 82663-50060 |
UCF30 |
1 | ||
| 82675B - TERMINAL, JUNCTION | ||||
| 82675-30030 |
UCF30 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-50020 |
UCF30 |
1 | ||
| 82741-50020 |
UCF30 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-50010 |
UCF30 |
1 | ||
| 82742-50010 |
UCF30 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-50010 |
UCF30..LHD |
1 | ||
| 82743-50030 |
UCF30..LHD |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-50010 |
UCF30..LHD |
1 | ||
| 82743-50030 |
UCF30..LHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04006 |
UCF30 |
1 | ||
| 90987-04010 |
UCF30 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
UCF30 |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
UCF30 |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02016 |
UCF30 |
1 | ||
| 90987-02025 |
UCF30 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 90987-02012 |
UCF30 |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
UCF30 |
1 | ||
| 90987-02016 |
UCF30 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
UCF30..GCC |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02012 |
UCF30 |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30010 |
UCF30 |
1 | ||
| 85942-48010 |
UCF30 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
UCF30 |
1 | ||
| 90987-02012 |
UCF30 |
1 | ||
| 89211A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89211-50040 |
UCF30 |
1 | ||
| 89211-50020 |
UCF30 |
1 | ||
| 89219 - COMPUTER, MULTIPLEX NETWORK FRONT LAMP | ||||
| 89219-50020 |
UCF30 |
1 | ||
| 89219-50030 |
UCF30 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-48010 |
UCF30..ARL,GCC |
1 | ||
| 89257-48010 |
UCF30..ARL,GCC |
1 | ||
| Common parts | ||||
| 82715-50370 | ||||
| 82715-50400 | ||||
| 90075-06003 | ||||
| 90075-10014 | ||||
| 90119-06459 | ||||
| 90119-06779 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
