UCF30L-AEAGKW (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

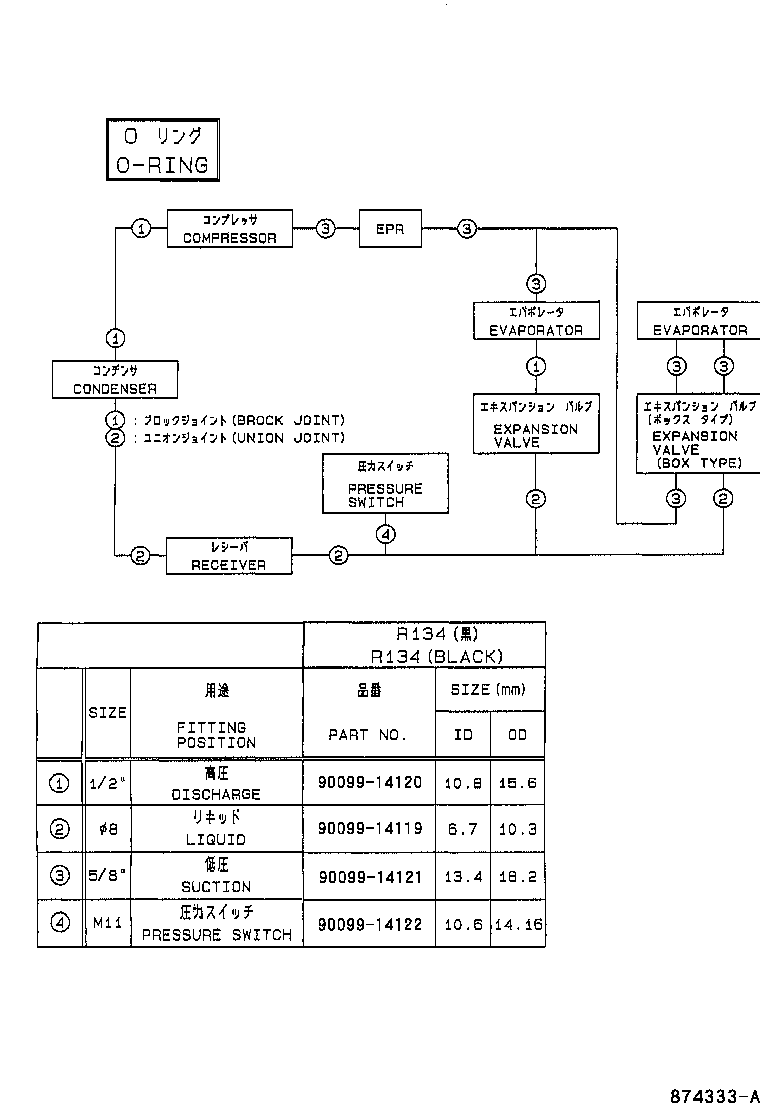

ILLUST NO. 3 OF 3(0008- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

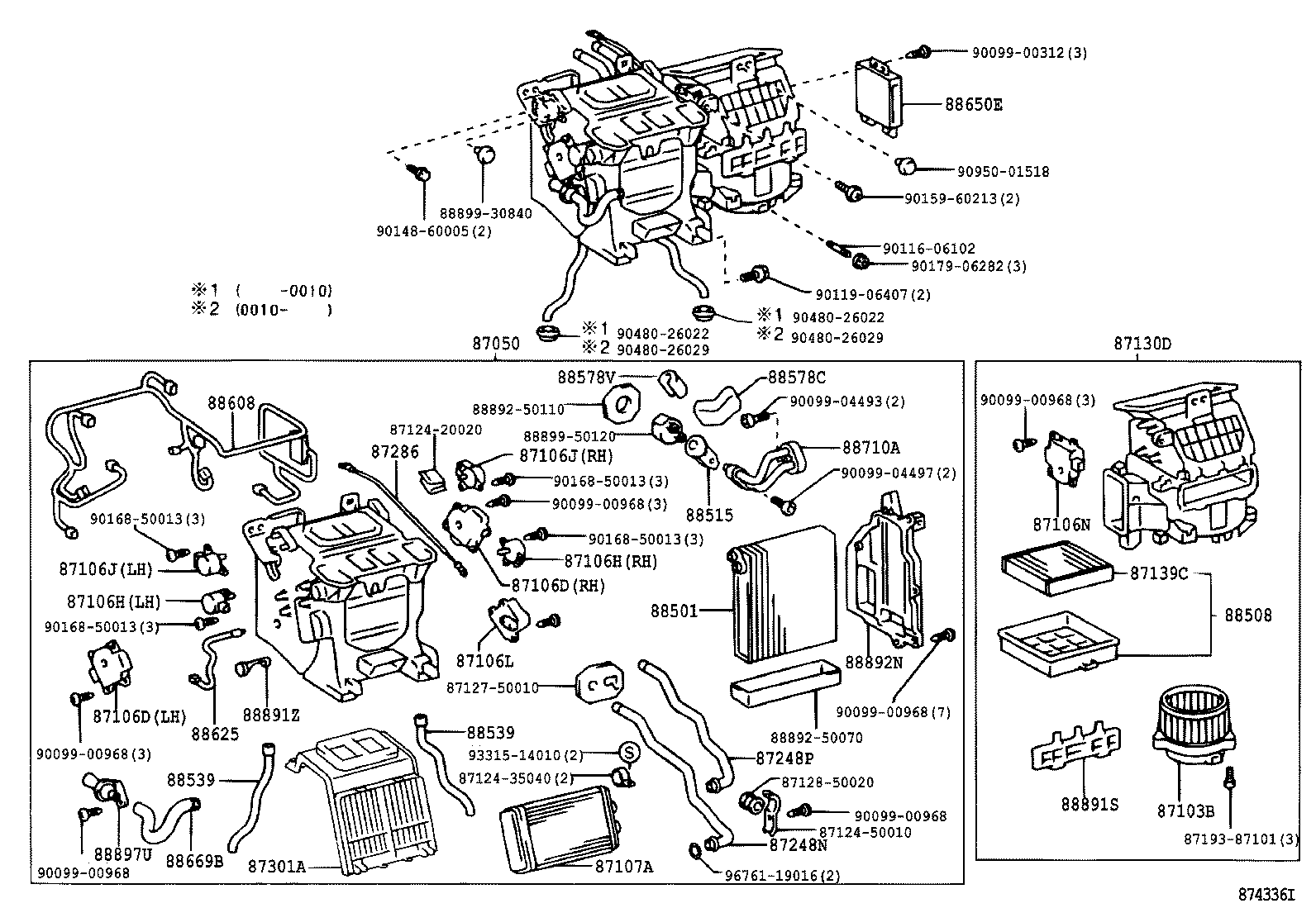

ILLUST NO. 1 OF 3(0008-0307)LHD
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50080 |
UCF30..LHD..EUR |
1 | ||
| 87050-50081 |
UCF30..LHD..EUR |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-50070 |
UCF30..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-50320 |
UCF30..LHD RH |
1 | ||
| 87106-50310 |
UCF30..LHD LH |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-50320 |
UCF30..LHD RH |
1 | ||
| 87106-50310 |
UCF30..LHD LH |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50160 |
UCF30 LH |
1 | ||
| 87106-50170 |
UCF30 RH |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50160 |
UCF30 LH |
1 | ||
| 87106-50170 |
UCF30 RH |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50160 |
UCF30 LH |
1 | ||
| 87106-50170 |
UCF30 RH |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50160 |
UCF30 LH |
1 | ||
| 87106-50170 |
UCF30 RH |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50340 |
UCF30..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-50360 |
UCF30..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-50050 |
UCF30..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50060 |
UCF30..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50030 |
UCF30 |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87156-50060 |
UCF30..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87156-50070 |
UCF30..LHD |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-50050 |
UCF30..LHD |
1 | ||
| 87301A - CASE SUB-ASSY, HEATER | ||||
| 87301-50020 |
UCF30 |
1 | ||
| 87301-50011 |
UCF30 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50210 |
UCF30 |
1 | ||
| 88501-50211 |
UCF30 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-50060 |
UCF30 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50160 |
UCF30..ARL,EUR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-50060 |
UCF30 |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-50060 |
UCF30 |
2 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-50210 |
UCF30..LHD |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-50220 |
UCF30 |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50250 |
UCF30..LHD |
1 | ||
| 88608-50251 |
UCF30..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-50160 |
UCF30..LHD..EUR |
1 | ||
| 88625-50160 |
UCF30 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-50350 |
UCF30 |
1 | ||
| 88650-50403 |
UCF30 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-50050 |
UCF30..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50700 |
UCF30..LHD |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50070 |
UCF30 |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-50060 |
UCF30 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50090 |
UCF30..LHD |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-30730 |
UCF30..LHD |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 87124-35040 | ||||
| 87124-50010 | ||||
| 87127-50010 | ||||
| 87128-50020 | ||||
| 87193-87101 | ||||
| 88892-50070 | ||||
| 88892-50110 | ||||
| 88899-30840 | ||||
| 88899-50120 | ||||
| 90099-00312 | ||||
| 90099-00968 | ||||
| 90099-04493 | ||||
| 90099-04497 | ||||
| 90116-06102 | ||||
| 90119-06407 | ||||
| 90148-60005 | ||||
| 90159-60213 | ||||
| 90168-50013 | ||||
| 90179-06282 | ||||
| 90480-26022 | ||||
| 90480-26029 | ||||
| 90950-01518 | ||||
| 93315-14010 | ||||
| 96761-19016 | ||||

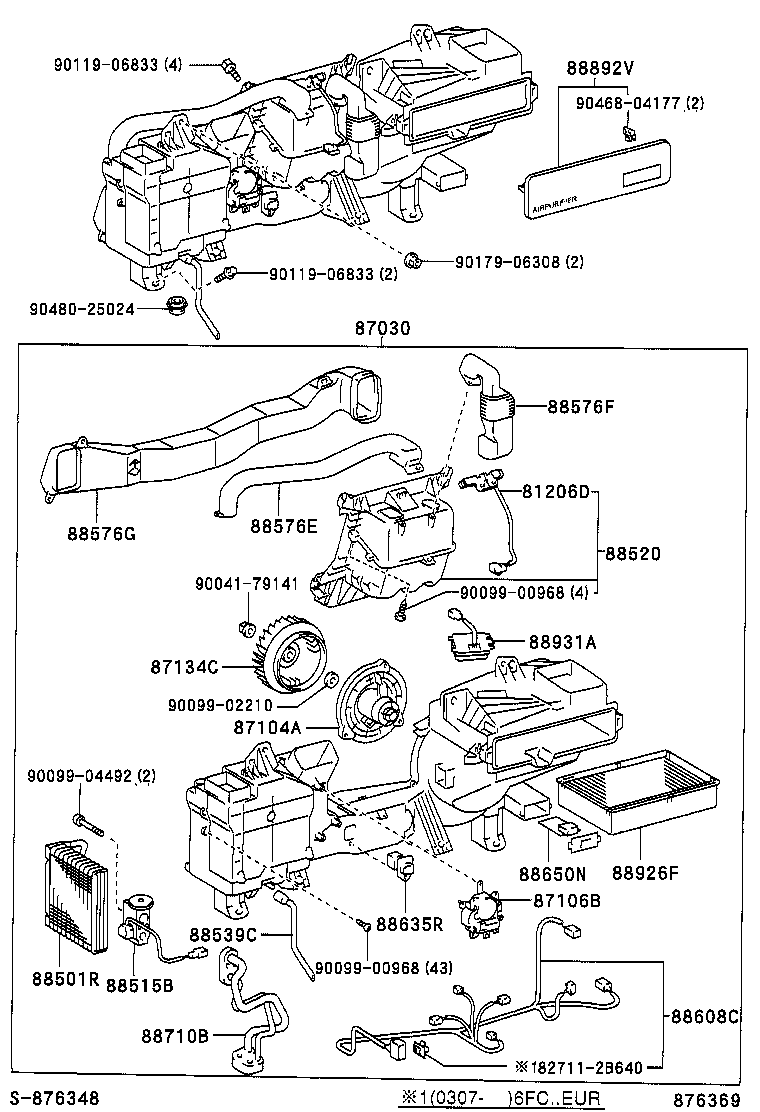

ILLUST NO. 2 OF 3(0008-0307) ; (0307- )EUR
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81206D - LAMP SUB-ASSY, COOLING BOX | ||||
| 81206-50030 |
UCF30 |
1 | ||
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-50021 |
UCF30 |
1 | ||
| 87030-50020 |
UCF30 |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
UCF30 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-30420 |
UCF30 |
1 | ||
| 87134C - FAN, BLOWER(FOR COOLING UNIT) | ||||
| 87134-30090 |
UCF30 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
UCF30 |
1 | ||
| 88501-3A040 |
UCF30 |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-50170 |
UCF30 |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-50020 |
UCF30 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-50070 |
UCF30 |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-50130 |
UCF30 |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-50140 |
UCF30 |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-50120 |
UCF30 |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-50270 |
UCF30 |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-30450 |
UCF30 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50340 |
UCF30 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50730 |
UCF30 |
1 | ||
| 88710-50760 |
UCF30 |
1 | ||
| 88892V - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
UCF30 BLACK,TRIM03,04,1#,2# |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 88508-30110 |
UCF30 |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-50040 |
UCF30 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90041-79141 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04492 | ||||
| 90119-06833 | ||||
| 90179-06308 | ||||
| 90468-04177 | ||||
| 90480-25024 | ||||
