UCF30L-AEAGKW (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008-0307)

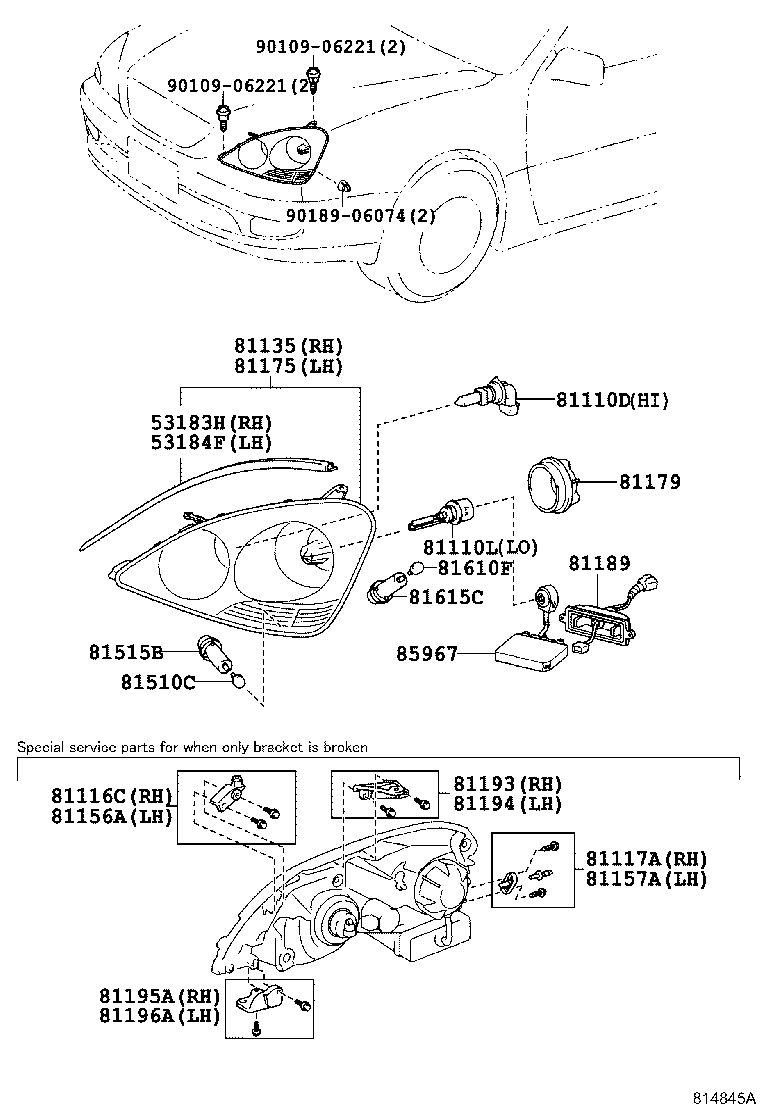

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183H - SEAL, HEADLAMP COVER, RH | ||||
| 53183-50040 |
UCF30 |
1 | ||
| 53184F - SEAL, HEADLAMP COVER, LH | ||||
| 53184-50040 |
UCF30 |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
UCF30 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20008 |
UCF30 85V 35W |
2 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81116-50010 |
UCF30 |
1 | ||
| 81117A - BRACKET, HEADLAMP, RH | ||||
| 81117-50010 |
UCF30 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-50240 |
UCF30..LHD |
1 | ||
| 81130-50241 |
UCF30..LHD |
1 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81156-50010 |
UCF30 |
1 | ||
| 81157A - BRACKET, HEADLAMP, LH | ||||
| 81117-50010 |
UCF30 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-50241 |
UCF30..LHD |
1 | ||
| 81170-50240 |
UCF30..LHD |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-50180 |
UCF30 |
2 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-50220 |
UCF30 RH |
1 | ||
| 81179-50220 |
UCF30 LH |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-50010 |
UCF30 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-50010 |
UCF30 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-50010 |
UCF30 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-50010 |
UCF30 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
UCF30 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
UCF30 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
UCF30 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 81138-22680 |
UCF30 |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-41010 |
UCF30 |
2 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90189-06074 | ||||
