UCF30L-AEAGKW (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

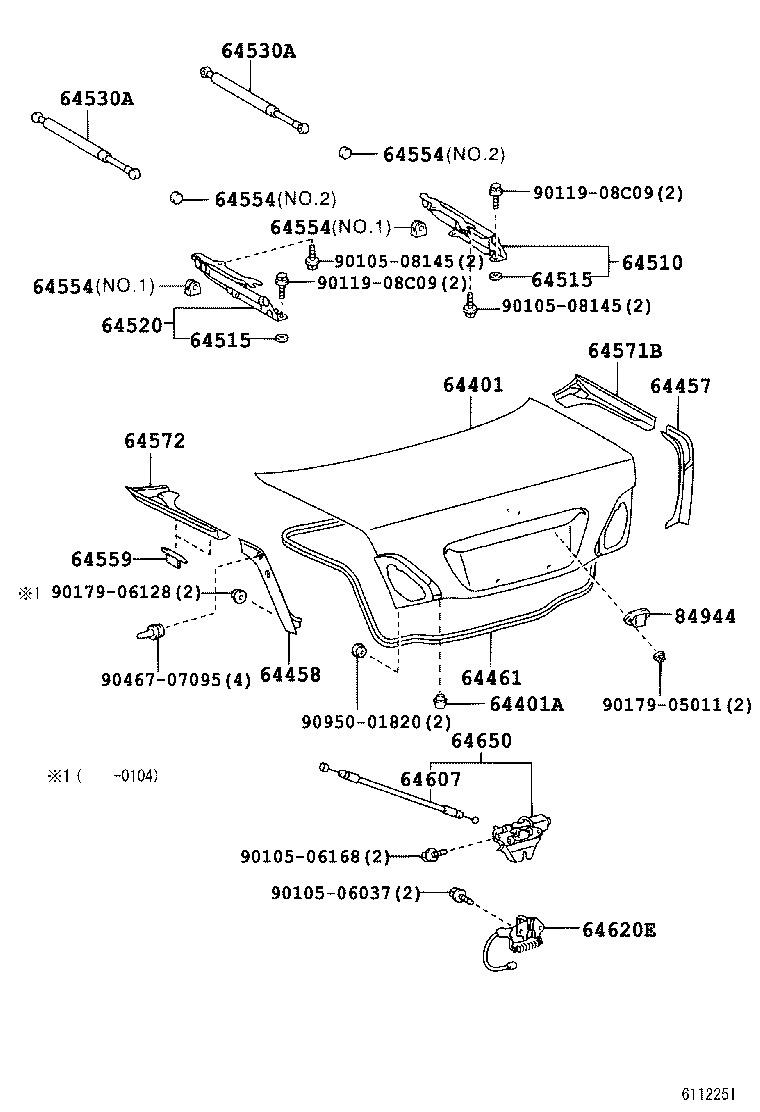

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-50140 |
UCF30 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-10027 |
UCF30 |
2 | ||
| 64457 - COVER, LUGGAGE DOOR STOPPER CUSHION, RH | ||||
| 64457-50030 |
UCF30 |
1 | ||
| 64458 - COVER, LUGGAGE DOOR STOPPER CUSHION, LH | ||||
| 64458-50030 |
UCF30 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-50030 |
UCF30 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-50030 |
UCF30 |
1 | ||
| 64515 - PAD, LUGGAGE DOOR HINGE | ||||
| 64515-50030 |
UCF30 T=1.0 |
4 | ||
| 64515-50040 |
UCF30 T=3.0 |
4 | ||
| 64515-50020 |
UCF30 T=2.0 |
4 | ||
| 64515 - PAD, LUGGAGE DOOR HINGE | ||||
| 64515-50030 |
UCF30 T=1.0 |
4 | ||
| 64515-50040 |
UCF30 T=3.0 |
4 | ||
| 64515-50020 |
UCF30 T=2.0 |
4 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-50030 |
UCF30 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-50030 |
UCF30 |
2 | ||
| 64530-50031 |
UCF30 |
2 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-50030 |
UCF30 |
2 | ||
| 64530-50031 |
UCF30 |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
4 | ||
| 64554-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
4 | ||
| 64554-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
4 | ||
| 64554-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
4 | ||
| 64554-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-50040 |
UCF30 |
4 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-50020 |
UCF30 |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-50010 |
UCF30 |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-50010 |
UCF30 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-50020 |
UCF30 |
1 | ||
| 64650 - CLOSER ASSY, LUGGAGE DOOR | ||||
| 64650-50010 |
UCF30 |
1 | ||
| 84944 - COVER, LUGGAGE ELECTRICAL KEY SWITCH | ||||
| 84944-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90105-06037 | ||||
| 90105-06168 | ||||
| 90105-08145 | ||||
| 90119-08C09 | ||||
| 90179-05011 | ||||
| 90179-06128 | ||||
| 90467-07095 | ||||
| 90950-01820 | ||||
