UCF30L-AEAGKW (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

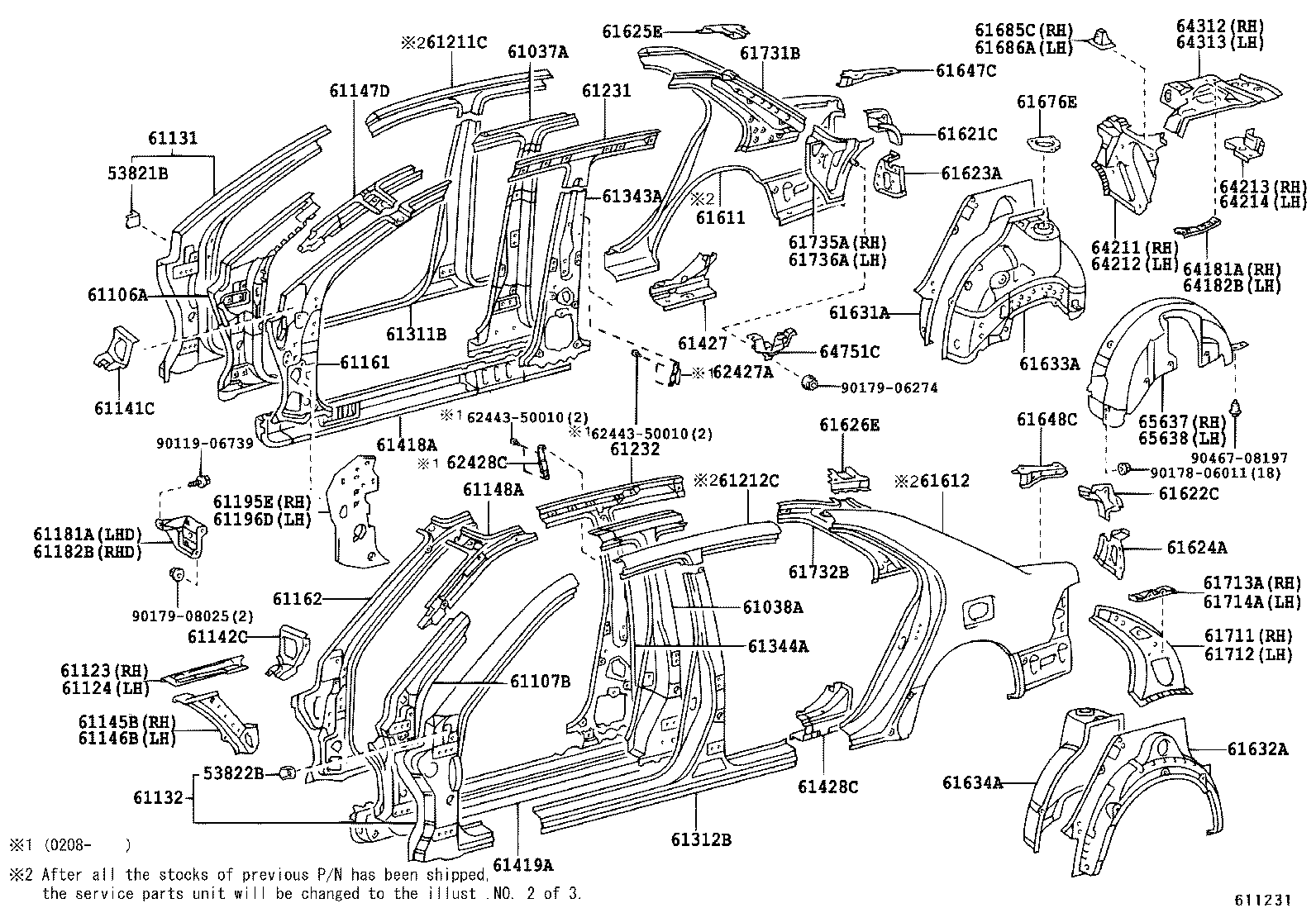

ILLUST NO. 1 OF 3(0008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
UCF30 |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
UCF30 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-50901 |
UCF30 |
1 | ||
| 61037-50900 |
UCF30 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-50900 |
UCF30 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-50030 |
UCF30..LHD |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-50040 |
UCF30..LHD |
1 | ||
| 61123 - PANEL, COWL SIDE LOWER, RH | ||||
| 61123-50020 |
UCF30 |
1 | ||
| 61124 - PANEL, COWL SIDE LOWER, LH | ||||
| 61124-50020 |
UCF30 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61101-50080 |
UCF30 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61102-50090 |
UCF30 |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-50030 |
UCF30 |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-50030 |
UCF30 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-50030 |
UCF30 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-50030 |
UCF30 |
1 | ||
| 61147D - EXTENSION, FRONT BODY PILLAR, UPPER OUTER RH | ||||
| 61043-50010 |
UCF30 |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61044-50010 |
UCF30 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61101-50070 |
UCF30 |
1 | ||
| 61161-50030 |
UCF30 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61102-50080 |
UCF30..LHD |
1 | ||
| 61195E - COVER, FRONT PILLAR END, RH | ||||
| 61195-50040 |
UCF30..LHD |
1 | ||
| 61195-50060 |
UCF30..LHD |
1 | ||
| 61196D - COVER, FRONT PILLAR END, LH | ||||
| 61196-50010 |
UCF30..LHD |
1 | ||
| 61196-50030 |
UCF30..LHD |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61211-50030 |
UCF30..EUR,GCC |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-50030 |
UCF30..EUR,GCC |
1 | ||
| 61212-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61201-50010 |
UCF30 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61202-50010 |
UCF30 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-50020 |
UCF30 W(ROOF RACK) |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-50030 |
UCF30 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-50030 |
UCF30 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-50030 |
UCF30 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61401-50010 |
UCF30 |
1 | ||
| 61401-50020 |
UCF30 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61402-50010 |
UCF30 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-50020 |
UCF30 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-50020 |
UCF30 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-50040 |
UCF30 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-50070 |
UCF30 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-50030 |
UCF30 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-50030 |
UCF30 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-50020 |
UCF30 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-50020 |
UCF30 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-50020 |
UCF30 |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-50020 |
UCF30 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-50020 |
UCF30 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-50020 |
UCF30 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-50930 |
UCF30 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-50920 |
UCF30 |
1 | ||
| 61647C - REINFORCEMENT, WHEEL HOUSE, RH | ||||
| 61647-50020 |
UCF30 |
1 | ||
| 61648C - REINFORCEMENT, WHEEL HOUSE, LH | ||||
| 61648-50020 |
UCF30 |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-50020 |
UCF30 |
2 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-50030 |
UCF30 |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-50030 |
UCF30 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-50030 |
UCF30 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-50030 |
UCF30 |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-50010 |
UCF30 |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-50010 |
UCF30 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-50020 |
UCF30 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-50020 |
UCF30 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-50020 |
UCF30 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-50020 |
UCF30 |
1 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-50030 |
UCF30 |
1 | ||
| 62428C - BRACKET, CENTER PILLAR GARNISH, LH | ||||
| 62428-50010 |
UCF30 |
1 | ||
| 64181A - REINFORCEMENT, REAR SEAT BELT ANCHOR, RH | ||||
| 64181-50010 |
UCF30 |
1 | ||
| 64182B - REINFORCEMENT, REAR SEAT BELT ANCHOR, LH | ||||
| 64181-50010 |
UCF30 |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-50030 |
UCF30 |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-50030 |
UCF30 |
1 | ||
| 64213 - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-50020 |
UCF30 |
1 | ||
| 64214 - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-50020 |
UCF30 |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-50050 |
UCF30 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-50050 |
UCF30 |
1 | ||
| 64751C - BRACKET, LUGGAGE COMPARTMENT COVER, NO.1, RH | ||||
| 64751-50030 |
UCF30 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-50010 |
UCF30 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 62443-50010 | ||||
| 90119-06739 | ||||
| 90178-06011 | ||||
| 90179-06274 | ||||
| 90179-08025 | ||||
| 90467-08197 | ||||

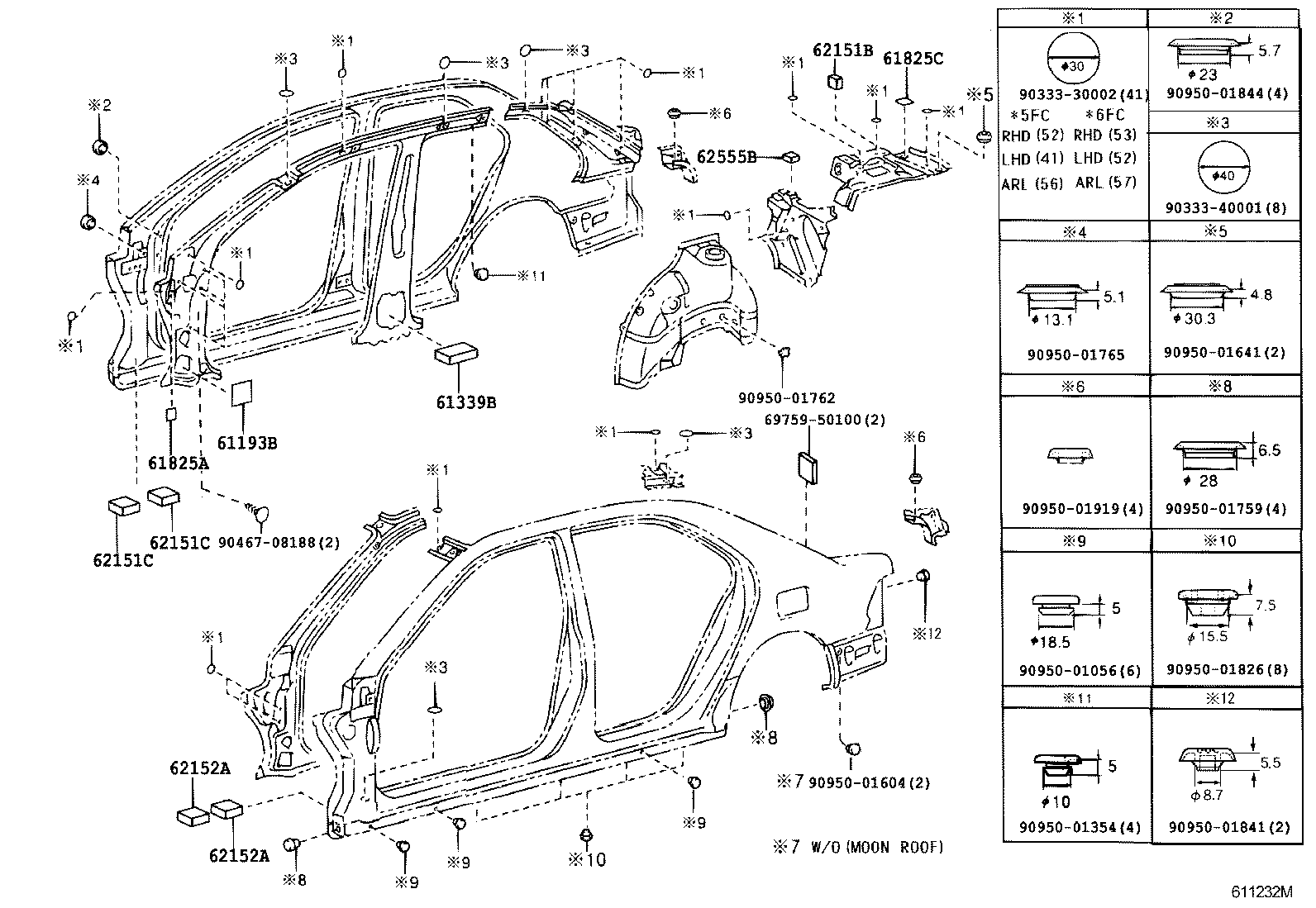

ILLUST NO. 3 OF 3(0008- )
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-50030 |
UCF30 |
2 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-50030 |
UCF30 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-22050 |
UCF30 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
UCF30 |
4 | ||
| 61825-22050 |
UCF30 |
4 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
UCF30 |
2 | ||
| 62151C - PAD, COWL SIDE SILENCER, RH | ||||
| 62151-30070 |
UCF30 |
2 | ||
| 62151C - PAD, COWL SIDE SILENCER, RH | ||||
| 62151-30070 |
UCF30 |
2 | ||
| 62152A - PAD, COWL SIDE SILENCER, LH | ||||
| 62151-30070 |
UCF30 |
2 | ||
| 62152A - PAD, COWL SIDE SILENCER, LH | ||||
| 62151-30070 |
UCF30 |
2 | ||
| 62555B - PAD, PILLAR, NO.5 | ||||
| 62555-89101 |
UCF30 |
2 | ||
| Common parts | ||||
| 69759-50100 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90467-08188 | ||||
| 90950-01056 | ||||
| 90950-01354 | ||||
| 90950-01604 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01765 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01844 | ||||
| 90950-01919 | ||||

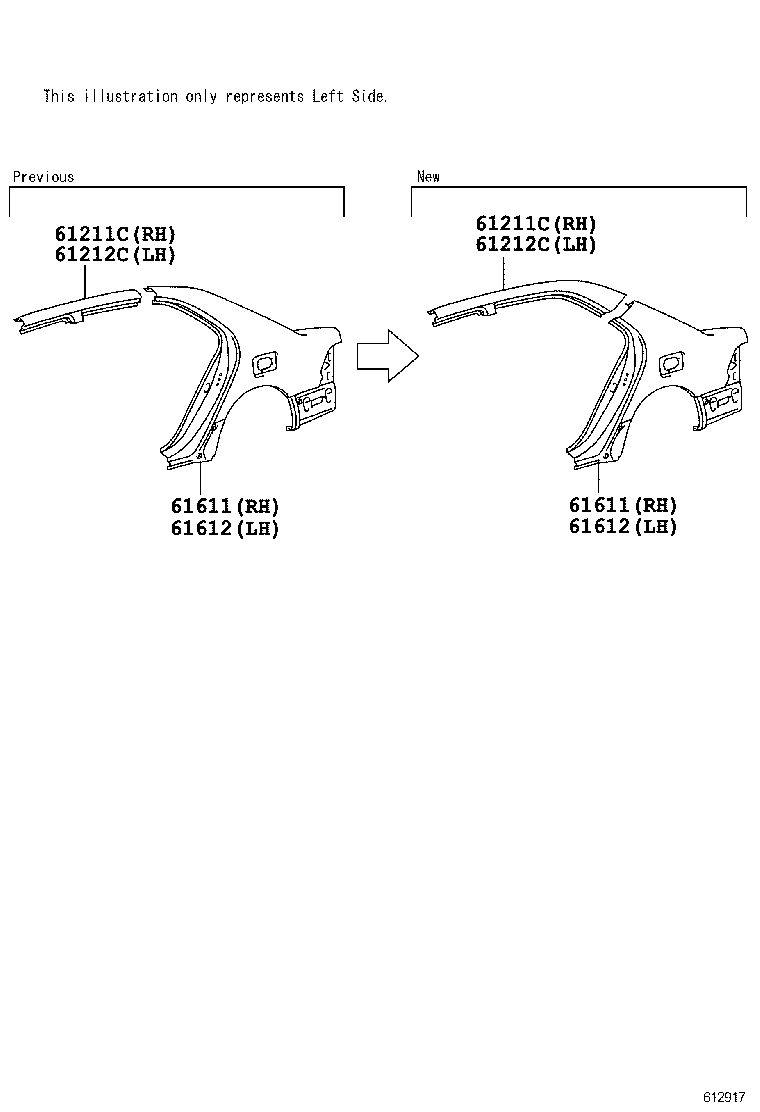

ILLUST NO. 2 OF 3(0008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61211-50030 |
UCF30..EUR,GCC |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61211-50030 |
UCF30..EUR,GCC |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-50030 |
UCF30..EUR,GCC |
1 | ||
| 61212-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-50030 |
UCF30..EUR,GCC |
1 | ||
| 61212-50040 |
UCF30..ARL,EUR W(ROOF RACK) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-50040 |
UCF30 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-50040 |
UCF30 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-50070 |
UCF30 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-50070 |
UCF30 |
1 | ||
