UCF30L-AEAGKV (2000)
Toyota Lexus Ls430

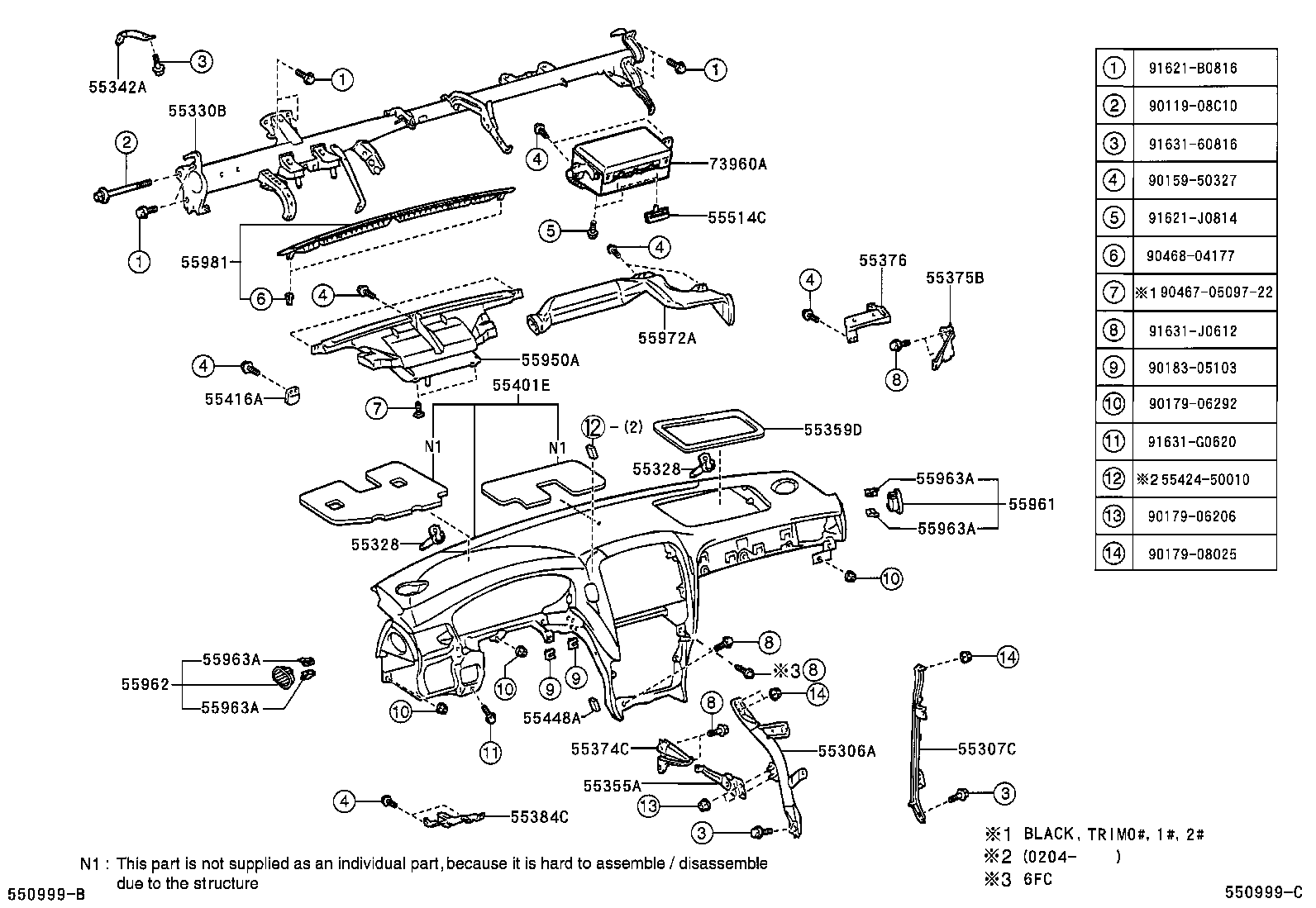

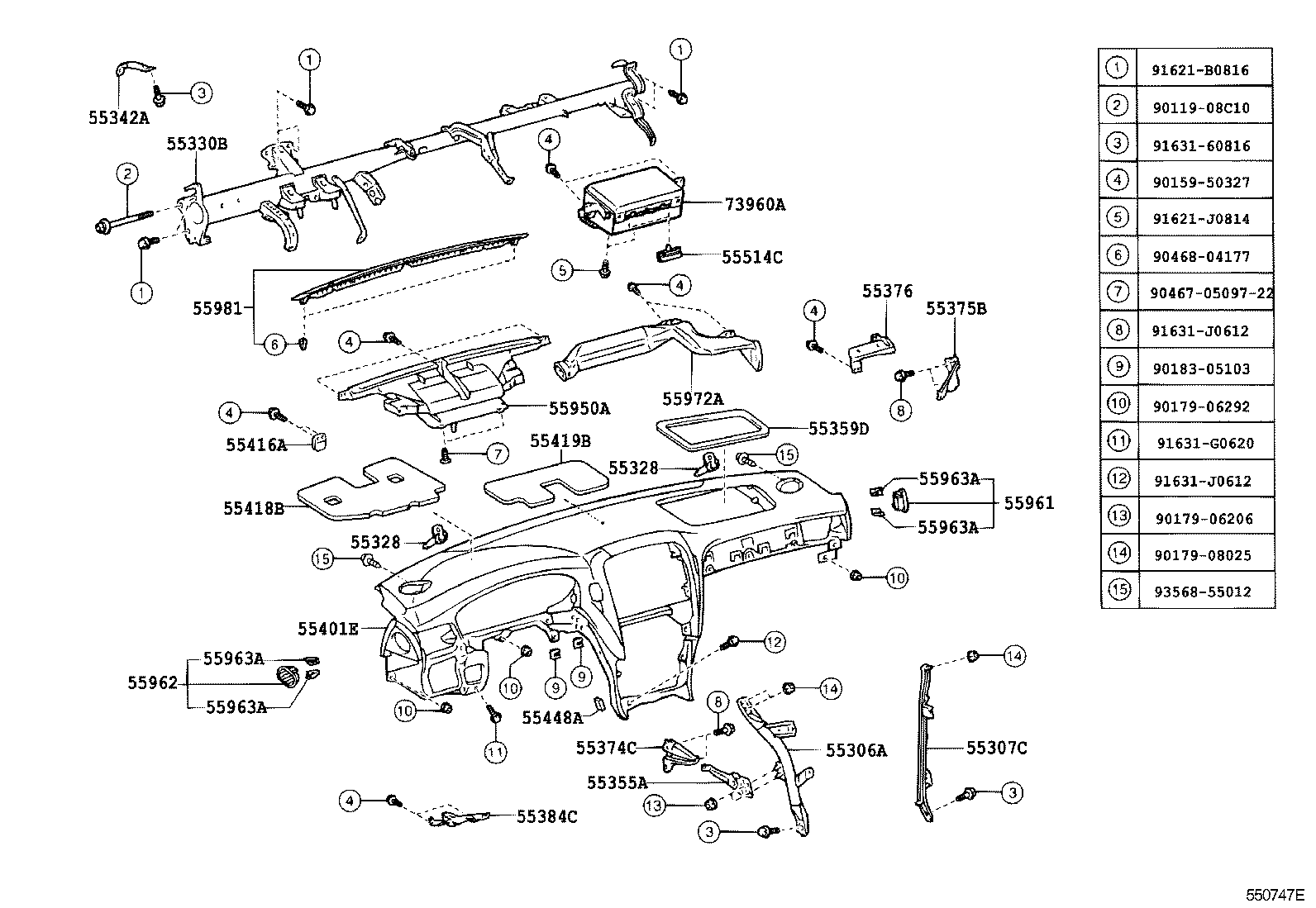

ILLUST NO. 1 OF 2(0008-0203)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50060 |
UCF30..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50080 |
UCF30..LHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50010 |
UCF30 |
2 | ||
| 55328-30100 |
UCF30 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50010 |
UCF30 |
2 | ||
| 55328-30100 |
UCF30 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-50100 |
UCF30..LHD |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-50050 |
UCF30..LHD |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-50040 |
UCF30..LHD |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-30030 |
UCF30 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-50050 |
UCF30..LHD |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-50060 |
UCF30..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-50020 |
UCF30..LHD |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50050 |
UCF30..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-50900B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55401-50900E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55401-50900E1 |
UCF30..LHD CLOVE BRWON,TRIM03 |
1 | ||
| 55401-50900C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55401-50902E1 |
UCF30..LHD CLOVE BROWN,TRIM03 |
1 | ||
| 55401-50902C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55401-50902B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55401-50902E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UCF30 |
2 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-50040 |
UCF30..LHD |
1 | ||
| 55419B - SPACER, METER HOOD, NO.2 | ||||
| 55419-50040 |
UCF30..LHD |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-20070 |
UCF30 |
1 | ||
| 55514C - RETAINER, AIR BAG PASSENGER DOOR | ||||
| 55514-50050 |
UCF30 |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-50020 |
UCF30 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-50020B1 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 55961-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55961-50020E1 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 55961-50020E2 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-50020E1 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 55962-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55962-50020E2 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55962-50020B1 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-50040 |
UCF30..LHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50090B0 |
UCF30 DARK CHARCOAL,TRIM1# |
1 | ||
| 55981-50100E1 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55981-50100E0 |
UCF30 SANDALWOOD,TRIM04 |
1 | ||
| 55981-50090C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-50060 |
UCF30 |
1 | ||
| 73960-50080 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-08C10 | ||||
| 90159-50327 | ||||
| 90179-06206 | ||||
| 90179-06292 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90467-0509722 | ||||
| 90468-04177 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-60816 | ||||
| 91631-G0620 | ||||
| 91631-J0612 | ||||
| 93568-55012 | ||||

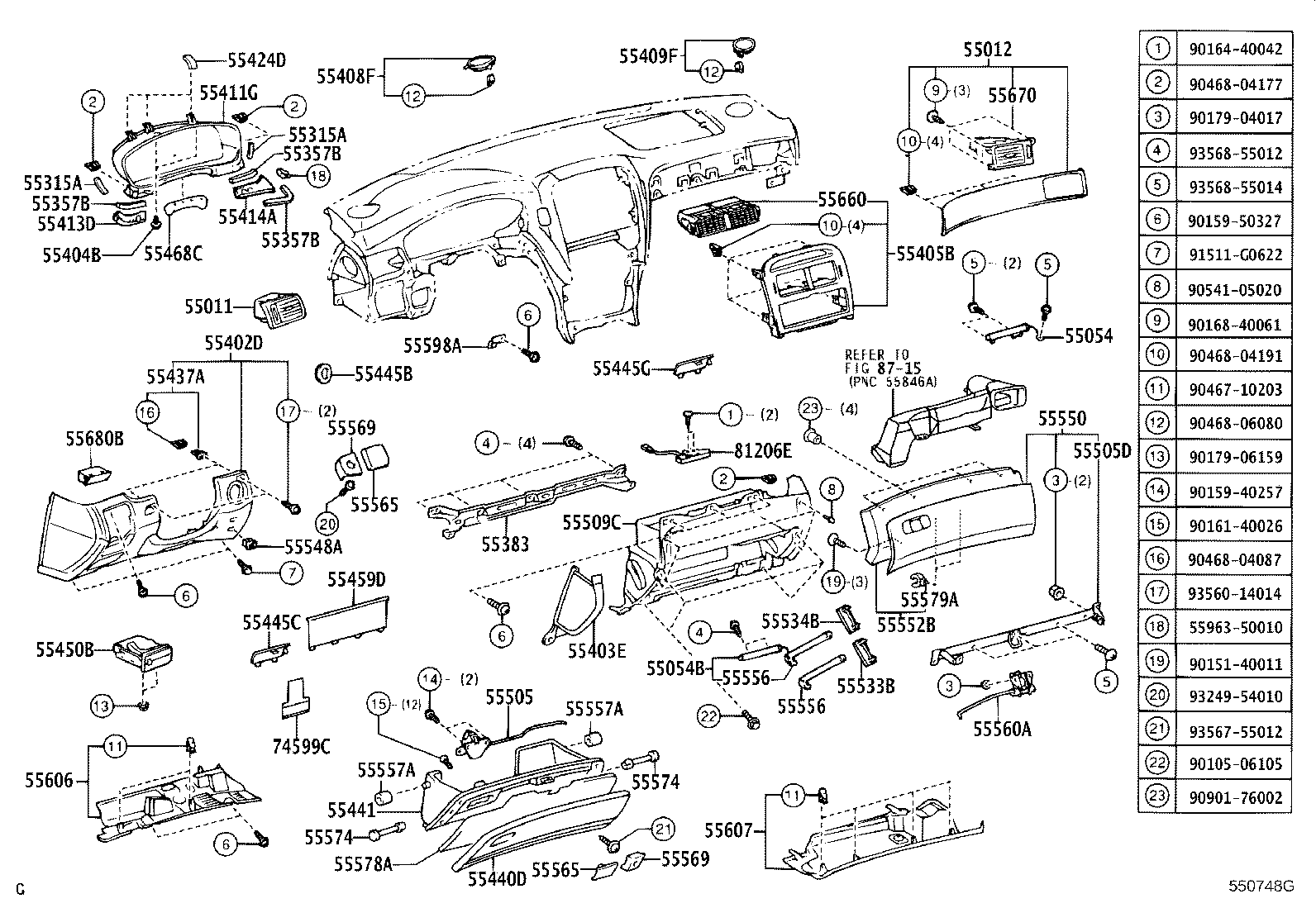

ILLUST NO. 2 OF 2(0008-0307)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-50030E1 |
UCF30..LHD LIGHTBROWN,TRIM03,2# |
1 | ||
| 55011-50010E0 |
UCF30..LHD MD.BROWN,TRIM04,1# |
1 | ||
| 55012 - GARNISH SUB-ASSY, INSTRUMENT PANEL, LH | ||||
| 55012-50030E0 |
UCF30..GCC MD.BROWN,TRIM0#,1# |
1 | ||
| 55012-50050E1 |
UCF30..GCC LIGHTBROWN,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50060 |
UCF30 |
1 | ||
| 55054B - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50070 |
UCF30 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-12020 |
UCF30 |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-12020 |
UCF30 |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-20020 |
UCF30 |
3 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-20020 |
UCF30 |
3 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-20020 |
UCF30 |
3 | ||
| 55383 - BRACKET, FINISH PANEL MOUNTING, NO.3 | ||||
| 55383-50050 |
UCF30..LHD |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-50900A0 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55402-50900A1 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55402-50900B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55402-50900C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-50060A1 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55403-50060B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55403-50060A0 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55403-50060C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90467-0505622 |
UCF30 BLACK,TRIM1#,2# |
2 | ||
| 90467-05158 |
UCF30 |
2 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-50060 |
UCF30..LHD W(REAR AIR CONDITIONER) & W/O(NAVIGATION SYSTEM) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-50090B0 |
UCF30..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 55408-50090E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55408-50090E1 |
UCF30..LHD CLOVEBROWN,TRIM03 |
1 | ||
| 55408-50090C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-50030E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55409-50030B0 |
UCF30..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 55409-50030E1 |
UCF30..LHD CLOVEBROWN,TRIM03 |
1 | ||
| 55409-50030C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-50100 |
UCF30..LHD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-50010B0 |
UCF30..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 55413-50020B0 |
UCF30..LHD W(SMART KEY SYSTEM),DK.CHARCOAL,TRIM1# |
1 | ||
| 55413-50010E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55413-50010E1 |
UCF30..LHD CLOVEBROWN,TRIM03 |
1 | ||
| 55413-50010C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55413-50020E1 |
UCF30..LHD W(SMART KEY SYSTEM),CLOVEBROWN,TRIM03 |
1 | ||
| 55413-50020C0 |
UCF30..LHD W(SMART KEY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55413-50020E0 |
UCF30..LHD W(SMART KEY SYSTEM),SANDAL WOOD,TRIM04 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-50900C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55414-50900B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55414-50900E1 |
UCF30..LHD CLOVE BRWON,TRIM03 |
1 | ||
| 55414-50900E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-50010 |
UCF30 |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-50010 |
UCF30..LHD |
2 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55406-50060A1 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55406-50060B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55406-50060C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55406-50060A0 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-50060 |
UCF30..LHD |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-50030B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 55445-50040A1 |
UCF30 W(SMART KEY SYSTEM),ECRU,TRIM03 |
1 | ||
| 55445-50040A0 |
UCF30 W(SMART KEY SYSTEM),IVORY,TRIM04 |
1 | ||
| 55445-50030A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 55445-50030A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 55445-50030C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55445-50040C0 |
UCF30 W(SMART KEY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55445-50040B0 |
UCF30 W(SMART KEY SYSTEM),MD.CHARCOAL,TRIM1# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-50010 |
UCF30 |
1 | ||
| 55445G - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-30210 |
UCF30 |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-50060A0 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55450-50060A1 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55450-50060C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55450-50060B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-50060 |
UCF30 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-50040 |
UCF30 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50110 |
UCF30..LHD |
1 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-50060 |
UCF30..LHD |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-50050 |
UCF30..LHD |
1 | ||
| 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH | ||||
| 55533-24010 |
UCF30 |
1 | ||
| 55534B - PANEL, GLOVE COMPARTMENT SIDE, LH | ||||
| 55534-24010 |
UCF30 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-50020A2 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55548-50020B3 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55548-50020A1 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55548-50020C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-50900B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55550-50900A1 |
UCF30..LHD ECRU,TRIM03 |
1 | ||
| 55550-50900C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55550-50900A0 |
UCF30..LHD IVORY,TRIM04 |
1 | ||
| 55552B - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-50070 |
UCF30..LHD |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50070 |
UCF30 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50070 |
UCF30 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-50020 |
UCF30 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-50020 |
UCF30 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50120 |
UCF30..LHD |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-50030A1 |
UCF30 ECRU,TRIM03,UPPER |
1 | ||
| 55565-50030A0 |
UCF30 IVORY,TRIM04,UPPER |
1 | ||
| 55565-50030C0 |
UCF30 BLACK,TRIM2#,UPPER |
1 | ||
| 55565-50010A2 |
UCF30 ECRU,TRIM03,LOWER |
1 | ||
| 55565-50010A1 |
UCF30 IVORY,TRIM04,LOWER |
1 | ||
| 55565-50010B5 |
UCF30 MD.CHARCOAL,TRIM1#,LOWER |
1 | ||
| 55565-50030B0 |
UCF30 MD.CHARCOAL,TRIM1#,UPPER |
1 | ||
| 55565-5001022 |
UCF30 BLACK,TRIM2#,LOWER |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-50030A1 |
UCF30 ECRU,TRIM03,UPPER |
1 | ||
| 55565-50030A0 |
UCF30 IVORY,TRIM04,UPPER |
1 | ||
| 55565-50030C0 |
UCF30 BLACK,TRIM2#,UPPER |
1 | ||
| 55565-50010A2 |
UCF30 ECRU,TRIM03,LOWER |
1 | ||
| 55565-50010A1 |
UCF30 IVORY,TRIM04,LOWER |
1 | ||
| 55565-50010B5 |
UCF30 MD.CHARCOAL,TRIM1#,LOWER |
1 | ||
| 55565-50030B0 |
UCF30 MD.CHARCOAL,TRIM1#,UPPER |
1 | ||
| 55565-5001022 |
UCF30 BLACK,TRIM2#,LOWER |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50010A1 |
UCF30 IVORY,TRIM04,LOWER |
1 | ||
| 55569-50010A2 |
UCF30 ECRU,TRIM03,LOWER |
1 | ||
| 55569-5001022 |
UCF30 BLACK,TRIM2#,LOWER |
1 | ||
| 55569-50030A0 |
UCF30 IVORY,TRIM04,UPPER |
1 | ||
| 55569-50030B0 |
UCF30 MD.CHARCOAL,TRIM1#,UPPER |
1 | ||
| 55569-50030A1 |
UCF30 ECRU,TRIM03,UPPER |
1 | ||
| 55569-50010B5 |
UCF30 MD.CHARCOAL,TRIM1#,LOWER |
1 | ||
| 55569-50030C0 |
UCF30 BLACK,TRIM2#,UPPER |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50010A1 |
UCF30 IVORY,TRIM04,LOWER |
1 | ||
| 55569-50010A2 |
UCF30 ECRU,TRIM03,LOWER |
1 | ||
| 55569-5001022 |
UCF30 BLACK,TRIM2#,LOWER |
1 | ||
| 55569-50030A0 |
UCF30 IVORY,TRIM04,UPPER |
1 | ||
| 55569-50030B0 |
UCF30 MD.CHARCOAL,TRIM1#,UPPER |
1 | ||
| 55569-50030A1 |
UCF30 ECRU,TRIM03,UPPER |
1 | ||
| 55569-50010B5 |
UCF30 MD.CHARCOAL,TRIM1#,LOWER |
1 | ||
| 55569-50030C0 |
UCF30 BLACK,TRIM2#,UPPER |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
UCF30 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
UCF30 |
2 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-50010 |
UCF30..LHD |
1 | ||
| 55579A - BAND, GLOVE COMPARTMENT BOX | ||||
| 55579-50010 |
UCF30 |
1 | ||
| 55598A - BRACKET, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55598-50020 |
UCF30..LHD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-50100 |
UCF30..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-50100 |
UCF30..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50110 |
UCF30 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-50050 |
UCF30..LHD |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-50020A1 |
UCF30 ECRU,TRIM03 |
1 | ||
| 55680-22020B3 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 55680-50010C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55680-22020A1 |
UCF30 IVORY,TRIM04 |
1 | ||
| 81206E - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-50020 |
UCF30 |
2 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90105-06105 | ||||
| 90151-40011 | ||||
| 90159-40257 | ||||
| 90159-50327 | ||||
| 90161-40026 | ||||
| 90164-40042 | ||||
| 90168-40061 | ||||
| 90179-04017 | ||||
| 90179-06159 | ||||
| 90467-10203 | ||||
| 90468-04087 | ||||
| 90468-04177 | ||||
| 90468-04191 | ||||
| 90468-06080 | ||||
| 90541-05020 | ||||
| 90901-76002 | ||||
| 91511-G0622 | ||||
| 93249-54010 | ||||
| 93560-14014 | ||||
| 93567-55012 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0203- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50060 |
UCF30..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50080 |
UCF30..LHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50010 |
UCF30 |
2 | ||
| 55328-30100 |
UCF30 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50010 |
UCF30 |
2 | ||
| 55328-30100 |
UCF30 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-50100 |
UCF30..LHD |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-50050 |
UCF30..LHD |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-50040 |
UCF30..LHD |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-30030 |
UCF30 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-50050 |
UCF30..LHD |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-50060 |
UCF30..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-50020 |
UCF30..LHD |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50050 |
UCF30..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-50900B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55401-50900E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55401-50900E1 |
UCF30..LHD CLOVE BRWON,TRIM03 |
1 | ||
| 55401-50900C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55401-50902E1 |
UCF30..LHD CLOVE BROWN,TRIM03 |
1 | ||
| 55401-50902C0 |
UCF30..LHD BLACK,TRIM2# |
1 | ||
| 55401-50902B0 |
UCF30..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 55401-50902E0 |
UCF30..LHD SANDAL WOOD,TRIM04 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UCF30 |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-20070 |
UCF30 |
1 | ||
| 55514C - RETAINER, AIR BAG PASSENGER DOOR | ||||
| 55514-50050 |
UCF30 |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-50020 |
UCF30 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-50020B1 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 55961-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55961-50020E1 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 55961-50020E2 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-50020E1 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 55962-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 55962-50020E2 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55962-50020B1 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55963A - RETAINER, SIDE DEFROSTER | ||||
| 55963-50010 |
UCF30 |
4 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-50040 |
UCF30..LHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50090B0 |
UCF30 DARK CHARCOAL,TRIM1# |
1 | ||
| 55981-50100E1 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 55981-50100E0 |
UCF30 SANDALWOOD,TRIM04 |
1 | ||
| 55981-50090C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-50060 |
UCF30 |
1 | ||
| 73960-50080 |
UCF30 |
1 | ||
| Common parts | ||||
| 55424-50010 | ||||
| 90119-08C10 | ||||
| 90159-50327 | ||||
| 90179-06206 | ||||
| 90179-06292 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90467-0509722 | ||||
| 90468-04177 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-60816 | ||||
| 91631-G0620 | ||||
| 91631-J0612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
