UCF30L-AEAGKV (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

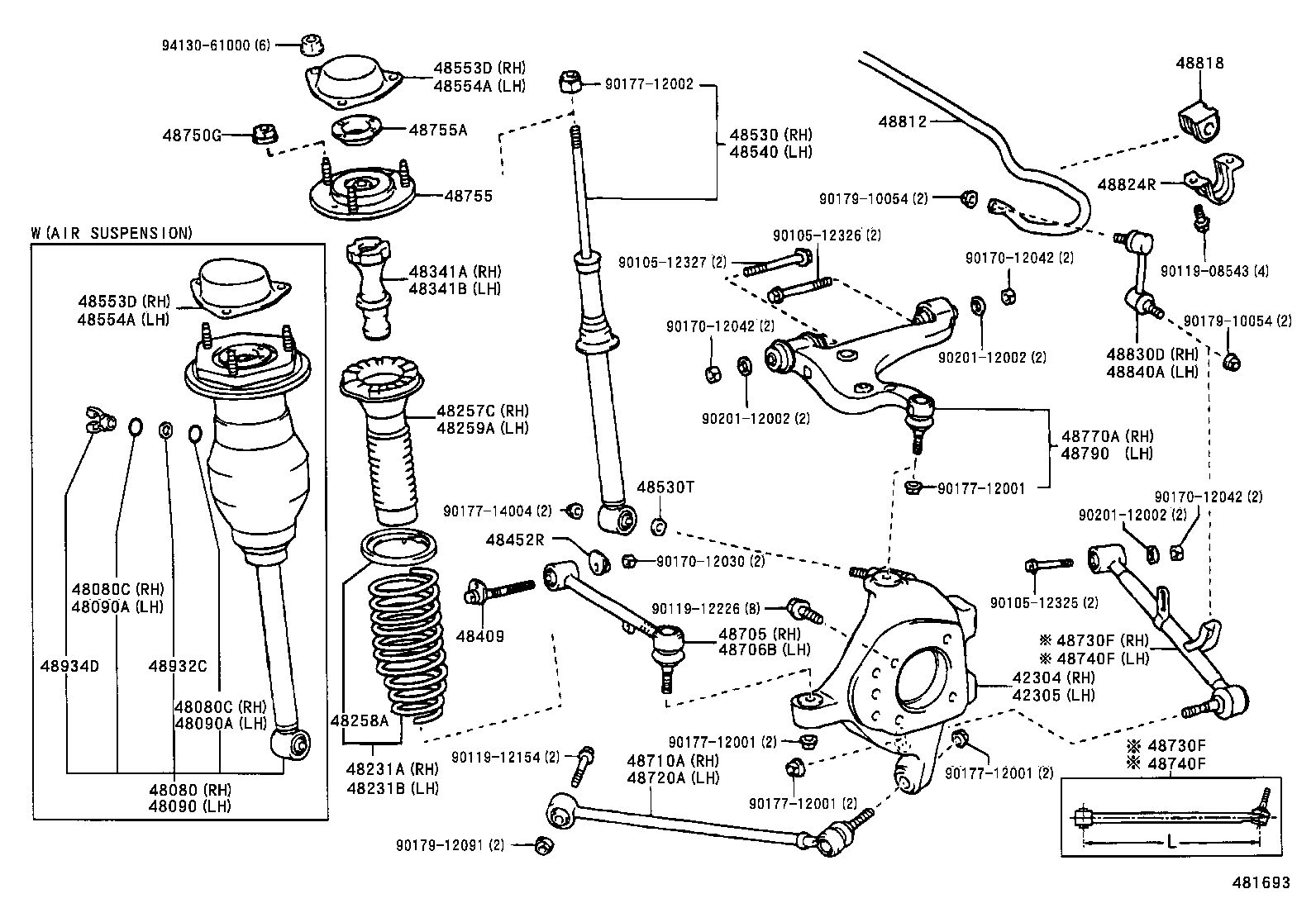

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-50090 |
UCF30 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-50090 |
UCF30 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-50160 |
UCF30 SOUTH AMERICA SPEC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-50160 |
UCF30 SOUTH AMERICA SPEC |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-50020 |
UCF30 |
1 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-50020 |
UCF30 |
2 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-50020 |
UCF30 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-50070 |
UCF30 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-50070 |
UCF30 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-50010 |
UCF30 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32040 |
UCF30 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59416 |
UCF30 |
1 | ||
| 48530-59415 |
UCF30 MARK 48530-50140 |
1 | ||
| 48530T - SPACER(FOR REAR SHOCK ABSORBER) | ||||
| 90560-17024 |
UCF30 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-59415 |
UCF30 MARK 48530-50140 |
1 | ||
| 48530-59416 |
UCF30 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-50100 |
UCF30 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-50100 |
UCF30 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-50100 |
UCF30 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-50100 |
UCF30 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-50010 |
UCF30 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48705-50010 |
UCF30 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-50060 |
UCF30 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-50060 |
UCF30 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-50050 |
UCF30 L=441.5 |
1 | ||
| 48730-50040 |
UCF30 L=446.5 |
1 | ||
| 48730-50060 |
UCF30 L=451.5 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-50050 |
UCF30 L=441.5 |
1 | ||
| 48730-50040 |
UCF30 L=446.5 |
1 | ||
| 48730-50060 |
UCF30 L=451.5 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-50030 |
UCF30 L=451.5 |
1 | ||
| 48740-50010 |
UCF30 L=446.5 |
1 | ||
| 48740-50020 |
UCF30 L=441.5 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-50030 |
UCF30 L=451.5 |
1 | ||
| 48740-50010 |
UCF30 L=446.5 |
1 | ||
| 48740-50020 |
UCF30 L=441.5 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-10088 |
UCF30 |
6 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-50100 |
UCF30 |
2 | ||
| 48755A - MEMBER, REAR SUSPENSION SLEEVE, LOWER | ||||
| 48755-50110 |
UCF30 |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-59045 |
UCF30 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-59045 |
UCF30 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-50130 |
UCF30 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-50020 |
UCF30 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-22060 |
UCF30 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-50030 |
UCF30 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90105-12325 | ||||
| 90105-12326 | ||||
| 90105-12327 | ||||
| 90119-08543 | ||||
| 90119-12154 | ||||
| 90119-12226 | ||||
| 90170-12030 | ||||
| 90170-12042 | ||||
| 90177-12001 | ||||
| 90177-12002 | ||||
| 90177-14004 | ||||
| 90179-10054 | ||||
| 90179-12091 | ||||
| 90201-12002 | ||||
| 94130-61000 | ||||
