UCF20R-AEPGKW (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410-9502)

Click highlighted areas on diagram

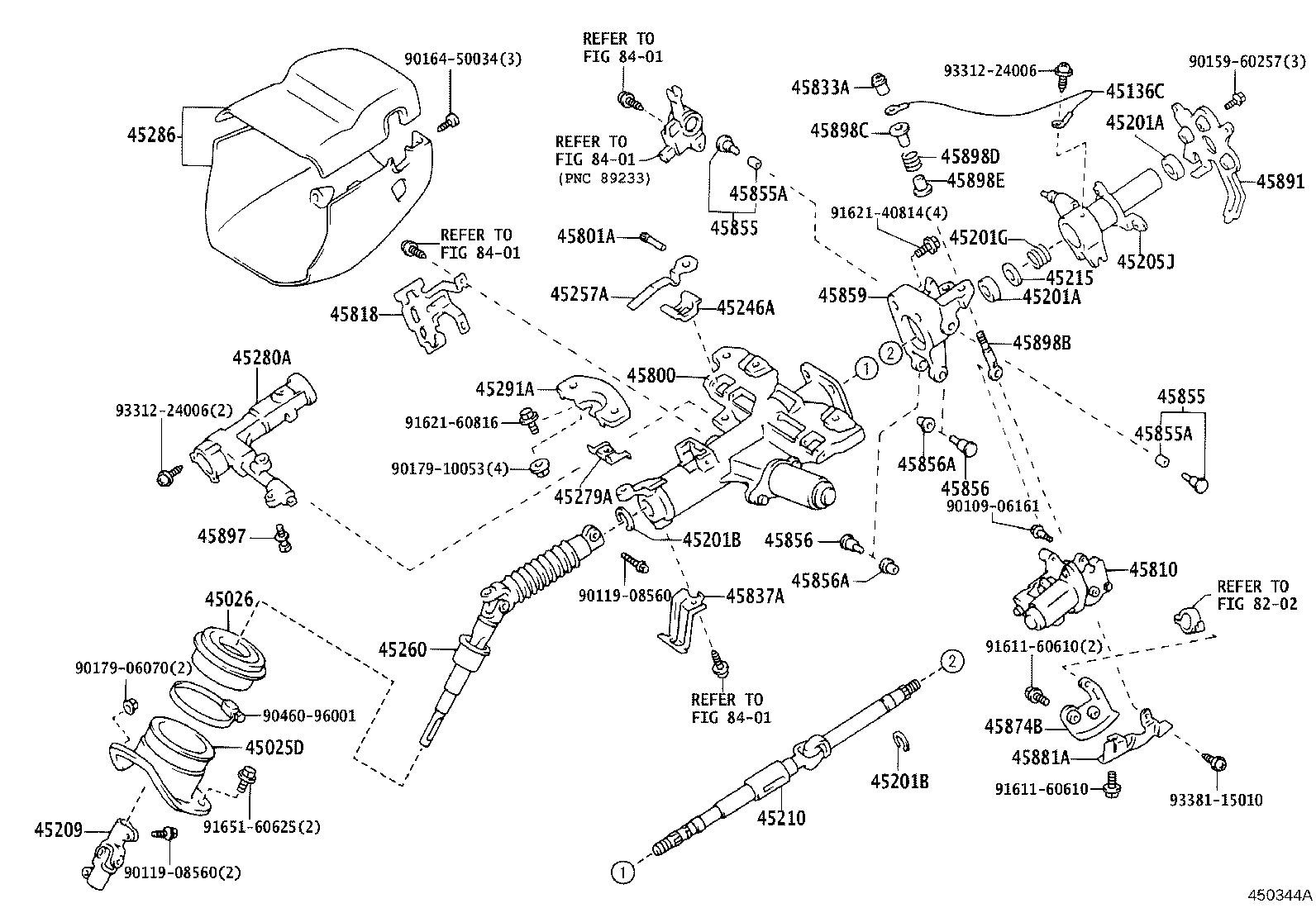

diagram 45025D 45026 45136C 45201A 45201A 45201B 45201B 45201G 45205J 45209 45210 45215 45246A 45257A 45260 45279A 45280A 45286 45291A 45800 45801A 45810 45818 45833A 45837A 45855 45855 45855A 45855A 45856 45856 45856A 45856A 45859 45874B 45881A 45891 45897 45898B 45898C 45898D 45898E 8202 8401 8401 8401 8401 9010906161 9011908560 9011908560 9015960257 9016450034 9017906070 9017910053 9046096001 9161160610 9161160610 9162140814 9162160816 9165160625 9331224006 9331224006 9338115010
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-50030

UCF20..RHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-50010

UCF20

 1
45136C - CABLE, BOND(FOR HORN EARTH)
90980-07312

UCF20

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

UCF20

 2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

UCF20

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

UCF20

T=1.20,UPPER

 1
90520-17005

UCF20

T=1.20,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

UCF20

T=1.20,UPPER

 1
90520-17005

UCF20

T=1.20,LOWER

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017

UCF20

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-50010

UCF20

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-50010

UCF20

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-50020

UCF20

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010

UCF20

 1
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-50020

UCF20

 2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-50030

UCF20

 2
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-50050

UCF20

 1
45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR
45279-50020

UCF20

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-50060

UCF20..RHD

 1
45286 - COVER, STEERING COLUMN
45286-50907B0

UCF20

DK.BLUE GRAY,TRIM1#

 1
45286-50907E0

UCF20

OAK,TRIM0#

 1
45286-50907G0

UCF20..ARL,EUR,GEN

DK.AGATE,TRIM6#

 1
45286-50907C0

UCF20

BLACK,TRIM2#

 1
45291A - SUPPORT, STEERING COLUMN TUBE
45291-50010

UCF20

 1
45800 - GEAR ASSY, TELESCOPIC STEERING, W/MOTOR
45800-50050

UCF20

 1
45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING
45801-50010

UCF20

 2
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-50020

UCF20

 1
45818 - BRACKET, CONNECTOR
45818-50030

UCF20

 1
45833A - NUT, SUPPORT STOPPER
94182-10600

UCF20

 2
45837A - BRACKET, STEERLNG LOWER TUBE, NO.1
45837-50010

UCF20

 1
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855A - BUSH(FOR TILT STEERING BOLT NO.1)
90389-10024

UCF20

 2
45855A - BUSH(FOR TILT STEERING BOLT NO.1)
90389-10024

UCF20

 2
45856 - BOLT, TILT STEERING, NO.2
45856-50010

UCF20

OD=16.2

 2
45856 - BOLT, TILT STEERING, NO.2
45856-50010

UCF20

OD=16.2

 2
45856A - BUSH(FOR TILT STEERING BOLT NO.2)
90389-08081

UCF20

 2
45856A - BUSH(FOR TILT STEERING BOLT NO.2)
90389-08081

UCF20

 2
45859 - SUPPORT, TILT STEERING HOUSING
45859-50010

UCF20

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-50020

UCF20

 1
45881A - PROTECTOR, STEERING COLUMN, NO.2
45881-50010

UCF20

 1
45891 - BRACKET, TURN SIGNAL
45891-50020

UCF20

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

UCF20

 2
45898B - BOLT, TILT STEERING SUPPORT STOPPER
45898-50011

UCF20

 2
45898C - SPACER(FOR TILT STEERING SUPPORT STOPPER BOLT)
90561-06010

UCF20

 2
45898D - SPRING(FOR TILT STEERING SUPPORT STOPPER BOLT)
90501-18096

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-11010

UCF20

 2
Common parts
90109-06161
90119-08560
90159-60257
90164-50034
90179-06070
90179-10053
90460-96001
91611-60610
91621-40814
91621-60816
91651-60625
93312-24006
93381-15010
Linked diagrams
8202
8401
