UCF20R-AEPGKW (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410-9707)RHD

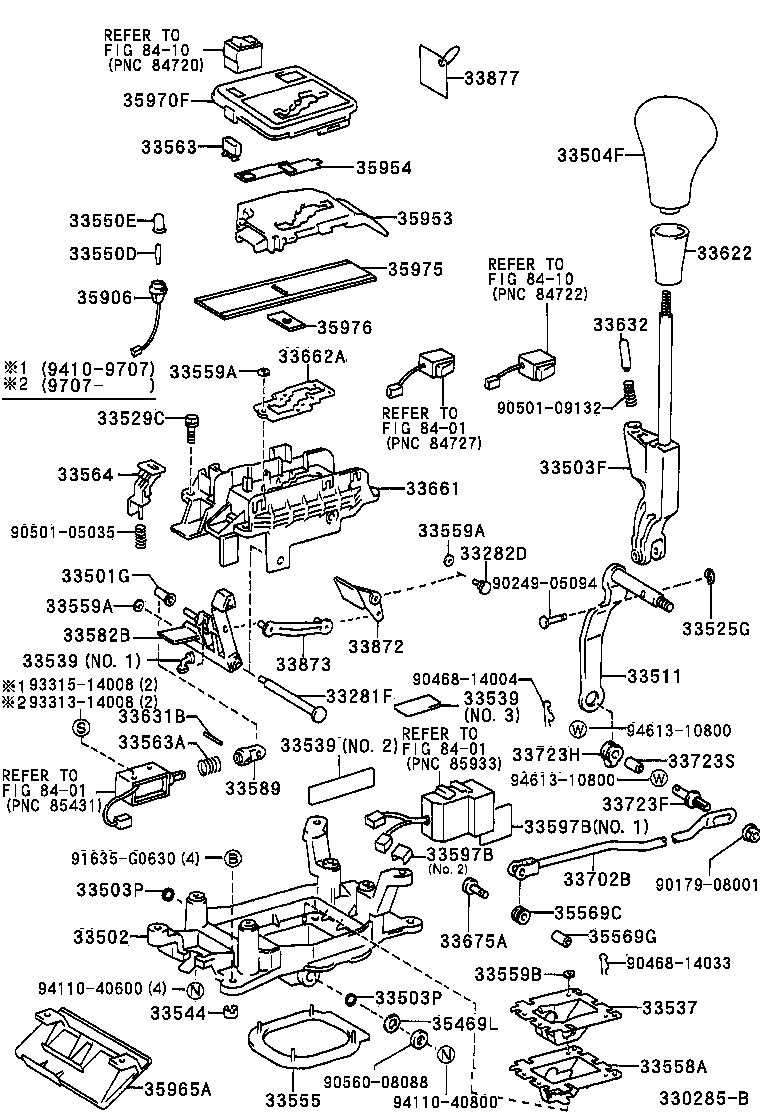

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT) | ||||
| 33281-50010 |
UCF20 |
1 | ||
| 33282D - PIN, LEVER LOCK, NO.2 | ||||
| 33282-50010 |
UCF20 |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-03001 |
UCF20 |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-50030 |
UCF20 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-50050 |
UCF20 |
1 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24014 |
UCF20 |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24014 |
UCF20 |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-50040B0 |
UCF20 LEATHER,DK. BLUE GRAY,TRIM1# |
1 | ||
| 33542-50040G0 |
UCF20..ARL,EUR,GEN LEATHER,DK.AGATE,TRIM6# |
1 | ||
| 33542-50040C0 |
UCF20 LEATHER,BLACK,TRIM2# |
1 | ||
| 33542-50040E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-50010 |
UCF20..RHD |
1 | ||
| 33525G - RING, SHIFT LEVER | ||||
| 33525-50010 |
UCF20 |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-50010 |
UCF20 |
4 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-50010 |
UCF20 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-50010 |
UCF20 NO.2 |
1 | ||
| 33539-50020 |
UCF20 NO.3 |
1 | ||
| 33539-14010 |
UCF20 NO.1 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-50010 |
UCF20 NO.2 |
1 | ||
| 33539-50020 |
UCF20 NO.3 |
1 | ||
| 33539-14010 |
UCF20 NO.1 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-50010 |
UCF20 NO.2 |
1 | ||
| 33539-50020 |
UCF20 NO.3 |
1 | ||
| 33539-14010 |
UCF20 NO.1 |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-50010 |
UCF20 |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
UCF20 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04053 |
UCF20 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-50020 |
UCF20 |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-50020 |
UCF20 |
1 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
UCF20 |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
UCF20 |
5 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
UCF20 |
5 | ||
| 33559B - NUT, SHIFT LEVER, NO.2 | ||||
| 33559-50010 |
UCF20 |
4 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-50050 |
UCF20 |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06086 |
UCF20 |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-50030 |
UCF20 |
1 | ||
| 33582B - STOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT) | ||||
| 33582-50030 |
UCF20..RHD |
1 | ||
| 33589 - LINK, SHIFT LOCK SOLENOID | ||||
| 33589-20030 |
UCF20 |
1 | ||
| 33597B - SEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT) | ||||
| 33597-50020 |
UCF20 NO.2 |
1 | ||
| 33597-50010 |
UCF20 NO.1 |
1 | ||
| 33597B - SEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT) | ||||
| 33597-50020 |
UCF20 NO.2 |
1 | ||
| 33597-50010 |
UCF20 NO.1 |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-50060 |
UCF20 |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-02004 |
UCF20 |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-50010 |
UCF20 |
1 | ||
| 33661 - HOUSING, SHIFT LEVER GUIDE | ||||
| 33661-50010 |
UCF20..RHD |
1 | ||
| 33661-50030 |
UCF20..RHD |
1 | ||
| 33662A - CUSHION, SHIFT LEVER GUIDE | ||||
| 33662-50010 |
UCF20..RHD |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
UCF20 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-50020 |
UCF20 |
1 | ||
| 33702-50030 |
UCF20 |
1 | ||
| 33702-50040 |
UCF20 |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-50010 |
UCF20 |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
UCF20 |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
UCF20 |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-50010 |
UCF20..RHD |
1 | ||
| 33873 - LINK, SHIFT LOCK RELEASE, NO.3 | ||||
| 33873-50010 |
UCF20 |
1 | ||
| 33873-50011 |
UCF20 |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
UCF20 |
1 | ||
| 35469L - SPACER, SHIFT LEVER | ||||
| 35469-50010 |
UCF20 |
2 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17023 |
UCF20 |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
UCF20 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-50030 |
UCF20 |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-50010 |
UCF20..RHD |
1 | ||
| 35954 - SHEET, POSITION INDICATOR | ||||
| 35954-50010 |
UCF20..RHD |
1 | ||
| 35965A - GUIDE, SHIFT LEVER SLIDE COVER | ||||
| 35965-50010 |
UCF20 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-50050 |
UCF20..RHD |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-50020 |
UCF20 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 90179-08001 | ||||
| 90249-05094 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 90501-05035 | ||||
| 90501-09132 | ||||
| 90560-08088 | ||||
| 91635-G0630 | ||||
| 93313-14008 | ||||
| 93315-14008 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
