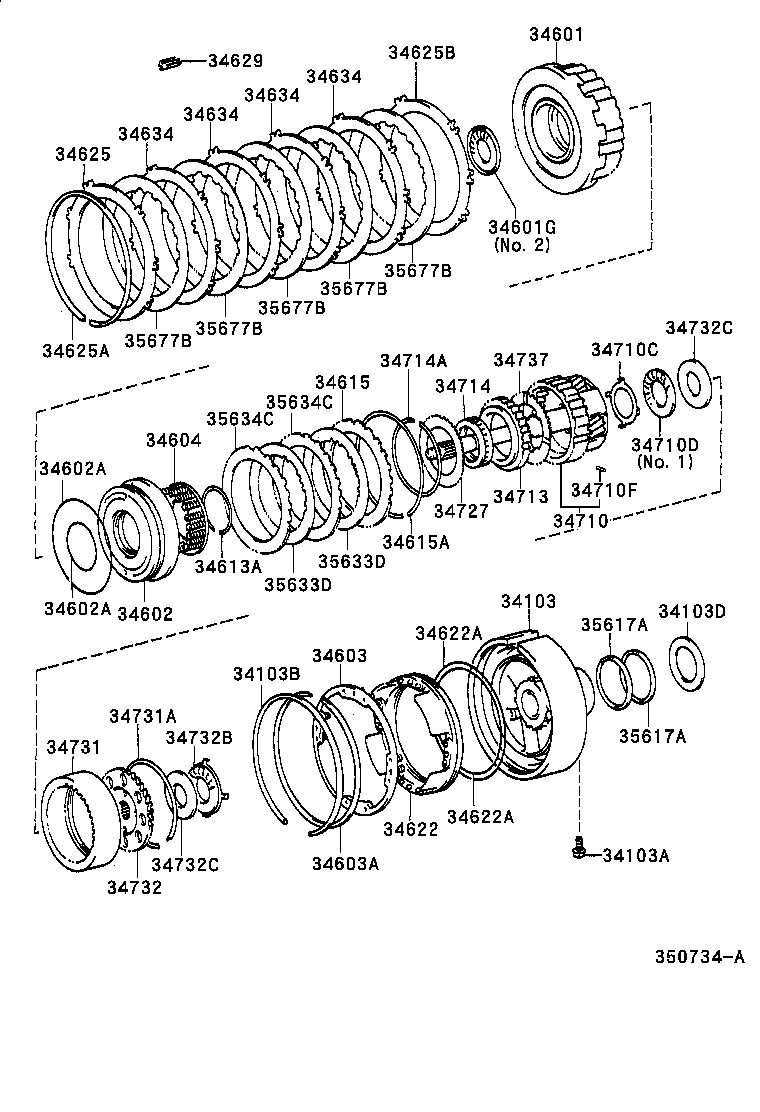

UCF20R-AEPGKQ (1994)
Toyota Lexus Ls400
(9410- )
A341E,A342E,A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34103 - SUPPORT SUB-ASSY, OVERDRIVE | ||||
| 34103-50010 |
UCF20 |
1 | ||
| 34103A - BOLT (FOR OVERDRIVE SUPPORT) | ||||
| 90105-08281 |
UCF20 |
2 | ||
| 34103B - RING, HOLE SNAP (FOR OVERDRIVE SUPPORT) | ||||
| 90521-99033 |
UCF20 |
1 | ||
| 34103D - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR) | ||||
| 35789-30090 |
UCF20 |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-50040 |
UCF20..ARL SINGAPORE & THAILAND SPEC |
1 | ||
| 34601-50030 |
UCF20..ARL |
1 | ||
| 34601G - BEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTC | ||||
| 90374-28008 |
UCF20 |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30020 |
UCF20 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99036 |
UCF20 OUTER |
1 | ||
| 90301-65005 |
UCF20 INNER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99036 |
UCF20 OUTER |
1 | ||
| 90301-65005 |
UCF20 INNER |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-50010 |
UCF20 |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99031 |
UCF20 |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-30010 |
UCF20 |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-58001 |
UCF20 |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30060 |
UCF20 T=3.2 |
1 | ||
| 34615-30070 |
UCF20 T=3.1 |
1 | ||
| 34615-50010 |
UCF20 T=3.7 |
1 | ||
| 34615-50020 |
UCF20 T=3.8 |
1 | ||
| 34615-30020 |
UCF20 T=3.6 |
1 | ||
| 34615-30030 |
UCF20 T=3.5 |
1 | ||
| 34615-30040 |
UCF20 T=3.4 |
1 | ||
| 34615-30050 |
UCF20 T=3.3 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99001 |
UCF20 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-50010 |
UCF20 |
1 | ||
| 34622-30080 |
UCF20 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99064 |
UCF20 INNER |
1 | ||
| 90301-99063 |
UCF20 OUTER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99064 |
UCF20 INNER |
1 | ||
| 90301-99063 |
UCF20 OUTER |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-30140 |
UCF20 T=3.7,MARK 80 |
1 | ||
| 34625-30120 |
UCF20 T=3.9,MARK 82 |
1 | ||
| 34625-30180 |
UCF20 T=4.0,MARK 83 |
1 | ||
| 34625-30150 |
UCF20 T=3.6,MARK 79 |
1 | ||
| 34625-30130 |
UCF20 T=3.8,MARK 81 |
1 | ||
| 34625-30170 |
UCF20 T=3.3,MARK 77 |
1 | ||
| 34625-30160 |
UCF20 T=3.5,MARK 78 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99027 |
UCF20 |
1 | ||
| 34625B - FLANGE, OVERDRIVE BRAKE, NO.2 | ||||
| 34625-30110 |
UCF20 |
1 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30021 |
UCF20 |
4 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30021 |
UCF20 |
4 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30021 |
UCF20 |
4 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30021 |
UCF20 |
4 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-14020 |
UCF20..ARL SINGAPORE & THAILAND SPEC |
1 | ||
| 34710-50010 |
UCF20..ARL |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30050 |
UCF20 |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-25005 |
UCF20 |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-32010 |
UCF20 |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-50010 |
UCF20 |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99028 |
UCF20 |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
UCF20 |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-50010 |
UCF20..ARL SINGAPORE & THAILAND SPEC |
1 | ||
| 34731-30030 |
UCF20..ARL |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99024 |
UCF20 |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-50010 |
UCF20 |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-33002 |
UCF20 |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-22060 |
UCF20 O/D FRANGE RR |
1 | ||
| 35789-30060 |
UCF20 O/D FRANGE FR |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-22060 |
UCF20 O/D FRANGE RR |
1 | ||
| 35789-30060 |
UCF20 O/D FRANGE FR |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-50010 |
UCF20..ARL SINGAPORE & THAILAND SPEC |
1 | ||
| 34737-30030 |
UCF20..ARL |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
UCF20 |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
UCF20 |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-14010 |
UCF20 |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-14010 |
UCF20 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
UCF20 T=2.0 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
UCF20 T=2.0 |
2 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-50010 |
UCF20 |
5 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-50010 |
UCF20 |
5 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-50010 |
UCF20 |
5 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-50010 |
UCF20 |
5 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-50010 |
UCF20 |
5 | ||
