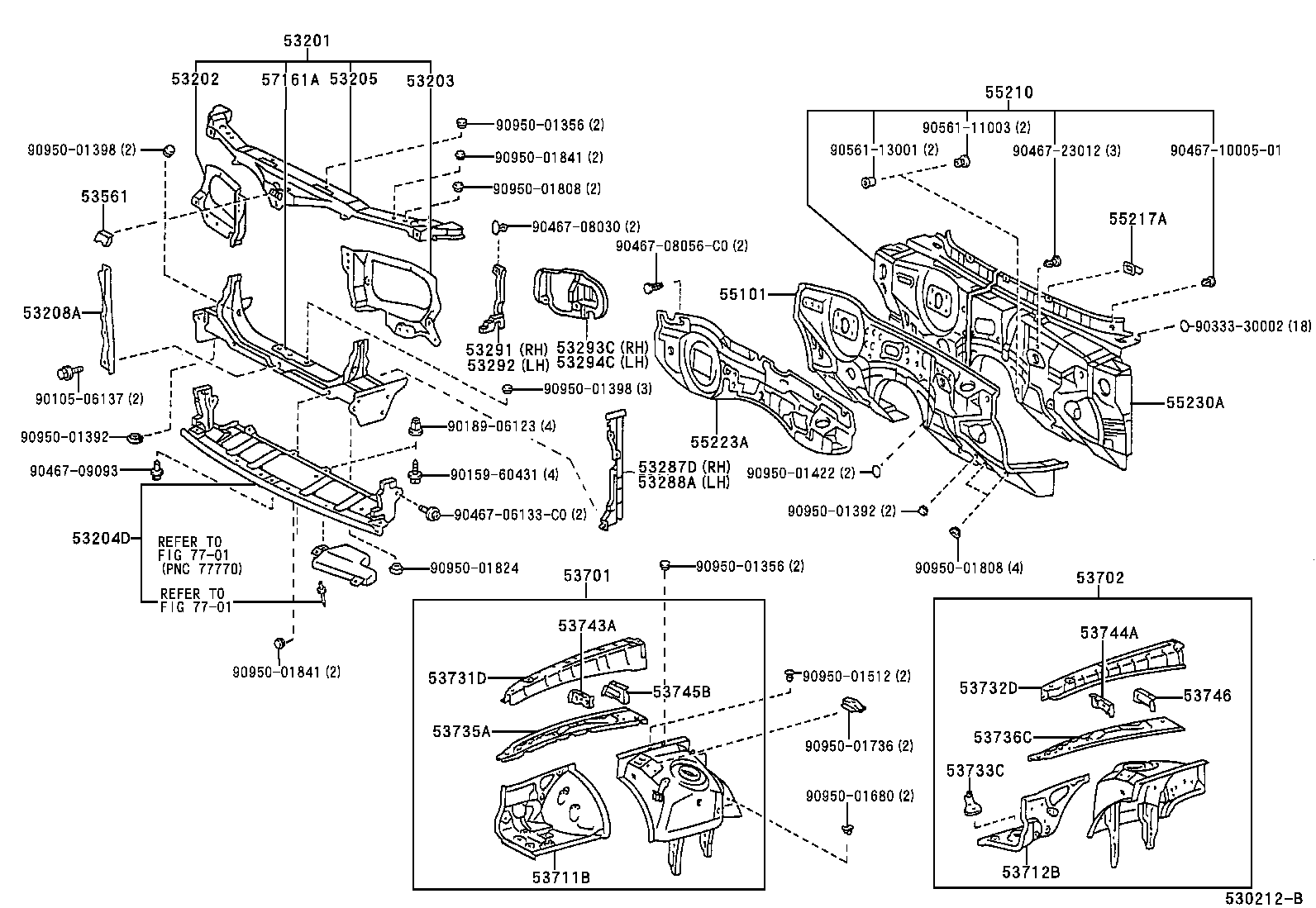

Toyota Lexus ls400 UCF20 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-50050	UCF20..ARL,GEN	10/1994 - 06/1997	1
53201-50051	UCF20..ARL,GEN	06/1997 - 07/1997	1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-50020	UCF20	10/1994 - 06/1997	1
53211-50021	UCF20	06/1997 - 07/1997	1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-50020	UCF20	10/1994 - 06/1997	1
53212-50021	UCF20	06/1997 - 07/1997	1
53204D - GUIDE SUB-ASSY, LOWER WIND
53204-50020	UCF20	10/1994 - 07/1997	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-50020	UCF20	10/1994 - 07/1997	1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-50010	UCF20	10/1994 - 07/1997	1
53287D - DUCT, COOL AIR INTAKE
53287-50010	UCF20	10/1994 - 12/2999	1
53288A - DUCT, COOL AIR INTAKE
53288-50010	UCF20	10/1994 - 12/2999	1
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-50030	UCF20	10/1994 - 07/1997	1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-50030	UCF20	10/1994 - 07/1997	1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-50020	UCF20	10/1994 - 07/1997	1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-50020	UCF20	10/1994 - 07/1997	1
53561 - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-30010	UCF20	10/1994 - 12/2999	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-50110	UCF20..RHD	10/1994 - 04/1997	1
53701-50111	UCF20..RHD	04/1997 - 12/2999	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-50150	UCF20..ARL,GEN W(*TRC)	10/1994 - 08/1996	1
53702-50151	UCF20..RHD	08/1996 - 12/2999	1
53702-50170	UCF20..RHD	10/1994 - 08/1996	1
53711B - APRON, FRONT FENDER, FRONT RH
53711-50050	UCF20	10/1994 - 04/1998	1
53712B - APRON, FRONT FENDER, FRONT LH
53712-50030	UCF20	10/1994 - 12/2999	1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-50030	UCF20	10/1994 - 12/2999	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-50030	UCF20	10/1994 - 12/2999	1
53733C - PATCH, FRONT FENDER APRON
53733-50030	UCF20	10/1994 - 12/2999	1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-50030	UCF20	10/1994 - 12/2999	1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-50030	UCF20	10/1994 - 12/2999	1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-50020	UCF20	10/1994 - 12/2999	1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-50020	UCF20	10/1994 - 12/2999	1
53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH
53745-50020	UCF20	10/1994 - 12/2999	1
53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH
53746-50020	UCF20	10/1994 - 12/2999	1
55101 - PANEL SUB-ASSY, DASH
55101-50040	UCF20..RHD	10/1994 - 07/1997	1
55210 - INSULATOR ASSY, DASH PANEL
55210-50040	UCF20..RHD	10/1994 - 04/1997	1
55210-50041	UCF20..RHD	04/1997 - 07/1997	1
55217A - RETAINER, DASH PANEL SILENCER
55217-50020	UCF20	10/1994 - 07/1997	3
55223A - INSULATOR, DASH PANEL, OUTER
55223-50060	UCF20..RHD	10/1994 - 02/1997	1
55223-50061	UCF20..RHD	02/1997 - 12/2999	1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57104-50060	UCF20..ARL,GEN	10/1994 - 07/1997	1
Common parts
90105-06137
90159-60431
90189-06123
90333-30002
90467-06133C0
90467-08030
90467-08056C0
90467-09093
90467-1000501
90467-23012
90561-11003
90561-13001
90950-01356
90950-01392
90950-01398
90950-01422
90950-01512
90950-01680
90950-01736
90950-01808
90950-01824
90950-01841
Linked diagrams
7701

UCF20R-AEPGK (1994)

(9410- )RHD
