UCF20R-AEAGKQ (1997)

Toyota Lexus Ls400

Production Jul 1997 - Aug 2000
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )

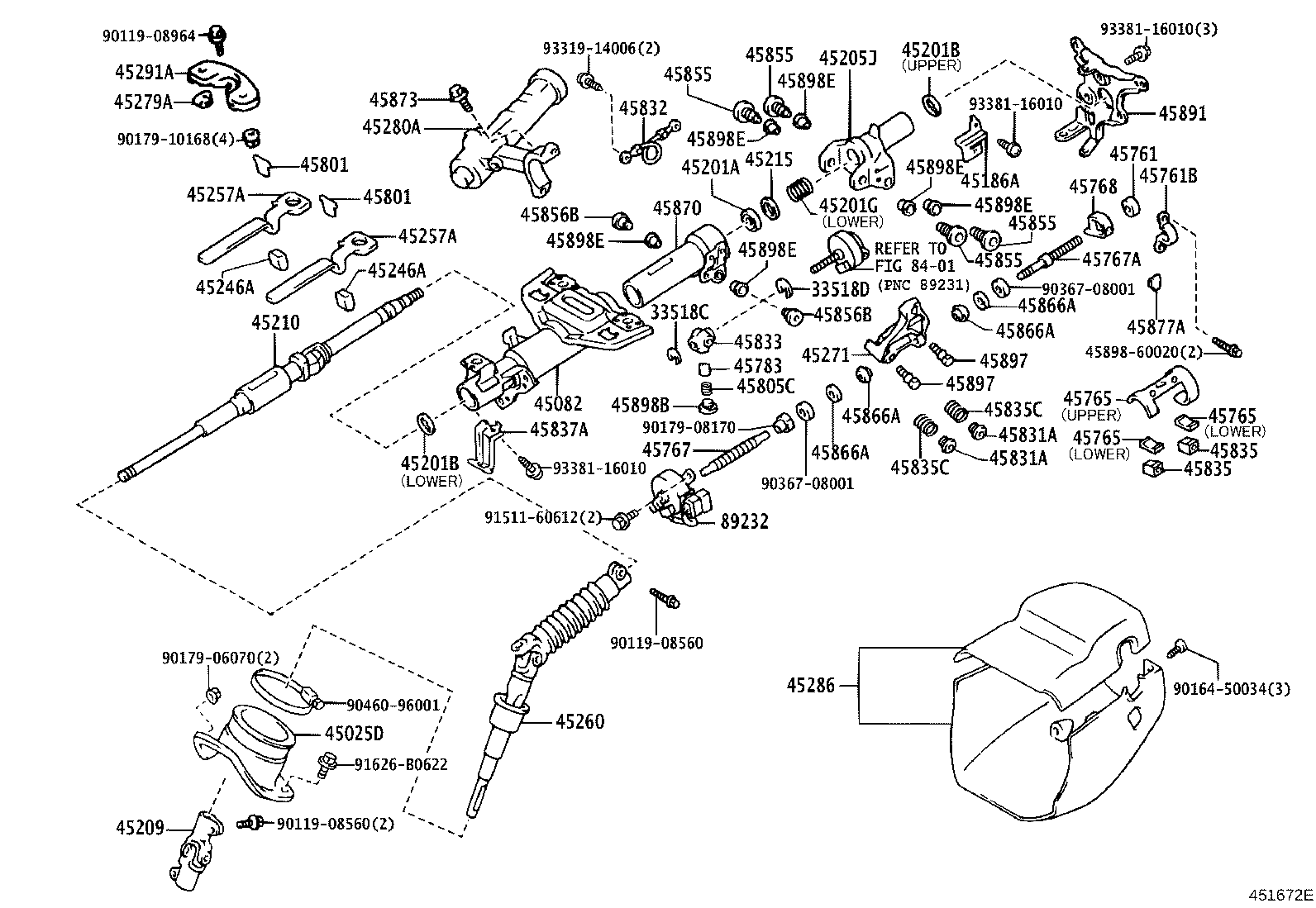

Click highlighted areas on diagram

diagram 33518C 33518D 45025D 45082 45186A 45201A 45201B 45201B 45201G 45205J 45209 45210 45215 45246A 45246A 45257A 45257A 45260 45271 45279A 45280A 45286 45291A 45761 45761B 45765 45765 45765 45767 45767A 45768 45783 45801 45801 45805C 45831A 45831A 45832 45833 45835 45835 45835C 45835C 45837A 45855 45855 45855 45855 45856B 45856B 45866A 45866A 45866A 45866A 45870 45873 45877A 45891 45897 45897 4589860020 45898B 45898E 45898E 45898E 45898E 45898E 45898E 8401 89232 9011908560 9011908560 9011908964 9016450034 9017906070 9017908170 9017910168 9036708001 9036708001 9046096001 9151160612 91626B0622 9331914006 9338116010 9338116010 9338116010
Part # Description Qty Price
33518C - E RING (FOR TILT MOTOR SHAFT, UPPER)
90523-06019

UCF20

 1
33518D - E RING (FOR TILT MOTOR SHAFT, LOWER)
90523-08001

UCF20

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-50030

UCF20..RHD

 1
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-50090

UCF20

 1
45186A - BRACKET, CONNECTOR, NO.2
45816-60020

UCF20

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

UCF20

 2
90363-18005

UCF20

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

UCF20

T=1.20,UPPER

 1
90520-17005

UCF20

T=1.20,LOWER

 1
90520-17042

UCF20

T=1.20,UPPER

 2
90520-17042

UCF20

T=1.20,UPPER

 1
90905-20003

UCF20

T=0.5,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

UCF20

T=1.20,UPPER

 1
90520-17005

UCF20

T=1.20,LOWER

 1
90520-17042

UCF20

T=1.20,UPPER

 2
90520-17042

UCF20

T=1.20,UPPER

 1
90905-20003

UCF20

T=0.5,LOWER

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017

UCF20

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-50010

UCF20

 1
45205-60180

UCF20

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-50010

UCF20

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-50030

UCF20

 1
45210-50020

UCF20

 1
45210-50021

UCF20

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010

UCF20

 1
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-12110

UCF20

 2
45246-50040

UCF20

 2
45246-50020

UCF20

 2
45246A - GUIDE, STEERING ENERGY ABSORBING PLATE
45246-12110

UCF20

 2
45246-50040

UCF20

 2
45246-50020

UCF20

 2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-50030

UCF20

 2
45257-12070

UCF20

 2
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-50030

UCF20

 2
45257-12070

UCF20

 2
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-50050

UCF20

 1
45260-50060

UCF20

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-60030

UCF20

 1
45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR
45279-33030

UCF20

 1
45279-50020

UCF20

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-50060

UCF20..RHD

 1
45280-50080

UCF20..RHD

 1
45286 - COVER, STEERING COLUMN
45286-50907B0

UCF20

DK.BLUE GRAY,TRIM1#

 1
45286-50911C0

UCF20

BLACK,TRIM2#

 1
45286-50907E1

UCF20

SANDAL WOOD,TRIM0#

 1
45286-50907E0

UCF20

OAK,TRIM0#

 1
45286-50911B0

UCF20

DK.BLUE GRAY,TRIM1#

 1
45286-50907G0

UCF20..ARL,EUR,GEN

DK.AGATE,TRIM6#

 1
45286-50911G0

UCF20..ARL,EUR,GEN

DK.AGATE,TRIM6#

 1
45286-50911E0

UCF20

SANDAL WOOD,TRIM0#

 1
45286-50907C0

UCF20

BLACK,TRIM2#

 1
45291A - SUPPORT, STEERING COLUMN TUBE
45291-33020

UCF20

 1
45291-50010

UCF20

 1
45761 - SLIDER, TELESCOPIC STEERING
45761-60010

UCF20

 1
45761B - SUPPORT, TELESCOPIC STEERING SLIDER
45766-60010

UCF20

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-60020

UCF20

LOWER

 2
45765-60021

UCF20

LOWER

 2
45765-60010

UCF20

UPPER

 1
45765-60011

UCF20

UPPER

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-60020

UCF20

LOWER

 2
45765-60021

UCF20

LOWER

 2
45765-60010

UCF20

UPPER

 1
45765-60011

UCF20

UPPER

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-60020

UCF20

LOWER

 2
45765-60021

UCF20

LOWER

 2
45765-60010

UCF20

UPPER

 1
45765-60011

UCF20

UPPER

 1
45767 - CABLE, TELESCOPIC STEERING COLUMN
45767-50010

UCF20

 1
45767A - SCREW, TELESCOPIC STEERING
45811-60010

UCF20

 1
45768 - BUSH, TELESCOPIC STEERING
45768-60011

UCF20

 1
45783 - STOPPER, TILT STEERING, NO.1
45783-60010

UCF20

 1
45801 - SUPPORT SUB-ASSY, STEERING POST
45875-12010

UCF20

 2
45801 - SUPPORT SUB-ASSY, STEERING POST
45875-12010

UCF20

 2
45805C - SPRING, COMPRESSION(FOR TILT STEERING SUPPORT)
90501-14159

UCF20

 1
90504-14007

UCF20

 1
45831A - BOLT, TELESCOPE LEVER LOCK
45831-60010

UCF20

 2
45831A - BOLT, TELESCOPE LEVER LOCK
45831-60010

UCF20

 2
45832 - CABLE, TILT STEERING SUPPORT BOND
45832-60010

UCF20

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-60010

UCF20

 1
45835 - WEDGE, LOCK
45835-60010

UCF20

 2
45835 - WEDGE, LOCK
45835-60010

UCF20

 2
45835C - SPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)
90501-23140

UCF20

 2
45835C - SPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)
90501-23140

UCF20

 2
45837A - BRACKET, STEERLNG LOWER TUBE, NO.1
45837-50020

UCF20

 1
45837-50010

UCF20

 1
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855-60010

UCF20

OD=11.993-11.979

 4
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855-60010

UCF20

OD=11.993-11.979

 4
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855-60010

UCF20

OD=11.993-11.979

 4
45855 - BOLT, TILT STEERING, NO.1
45086-50010

UCF20

OD=20

 2
45855-60010

UCF20

OD=11.993-11.979

 4
45856B - SHAFT, T1LT STEERING, NO.2
45856-60010

UCF20

 2
45856B - SHAFT, T1LT STEERING, NO.2
45856-60010

UCF20

 2
45866A - STOPPER, STEERING MAIN SHAFT BUSH
45866-60020

UCF20

OUTER

 2
45866-60010

UCF20

INNER

 2
45866A - STOPPER, STEERING MAIN SHAFT BUSH
45866-60020

UCF20

OUTER

 2
45866-60010

UCF20

INNER

 2
45866A - STOPPER, STEERING MAIN SHAFT BUSH
45866-60020

UCF20

OUTER

 2
45866-60010

UCF20

INNER

 2
45866A - STOPPER, STEERING MAIN SHAFT BUSH
45866-60020

UCF20

OUTER

 2
45866-60010

UCF20

INNER

 2
45870 - TUBE ASSY, STEERING COLUMN
45870-50020

UCF20

 1
45873 - STOPPER, STEERING COLUMN TUBE
45873-60010

UCF20

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-60011

UCF20

 1
45891 - BRACKET, TURN SIGNAL
45891-50020

UCF20

 1
45891-50030

UCF20

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

UCF20

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

UCF20

 2
45898B - BOLT, TILT STEERING SUPPORT STOPPER
45898-60010

UCF20

 1
45898-50011

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
45898E - BUSH(FOR TILT STEERING SUPPORT BOLT)
90389-08124

UCF20

 6
90389-11010

UCF20

 2
89232 - MOTOR, POWER TELESCOPIC
89232-50041

UCF20

 1
89232-50040

UCF20

 1
Common parts
45898-60020
90119-08560
90119-08964
90164-50034
90179-06070
90179-08170
90179-10168
90367-08001
90460-96001
91511-60612
91626-B0622
93319-14006
93381-16010
Linked diagrams
8401
