UCF20L-AEPGKW (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

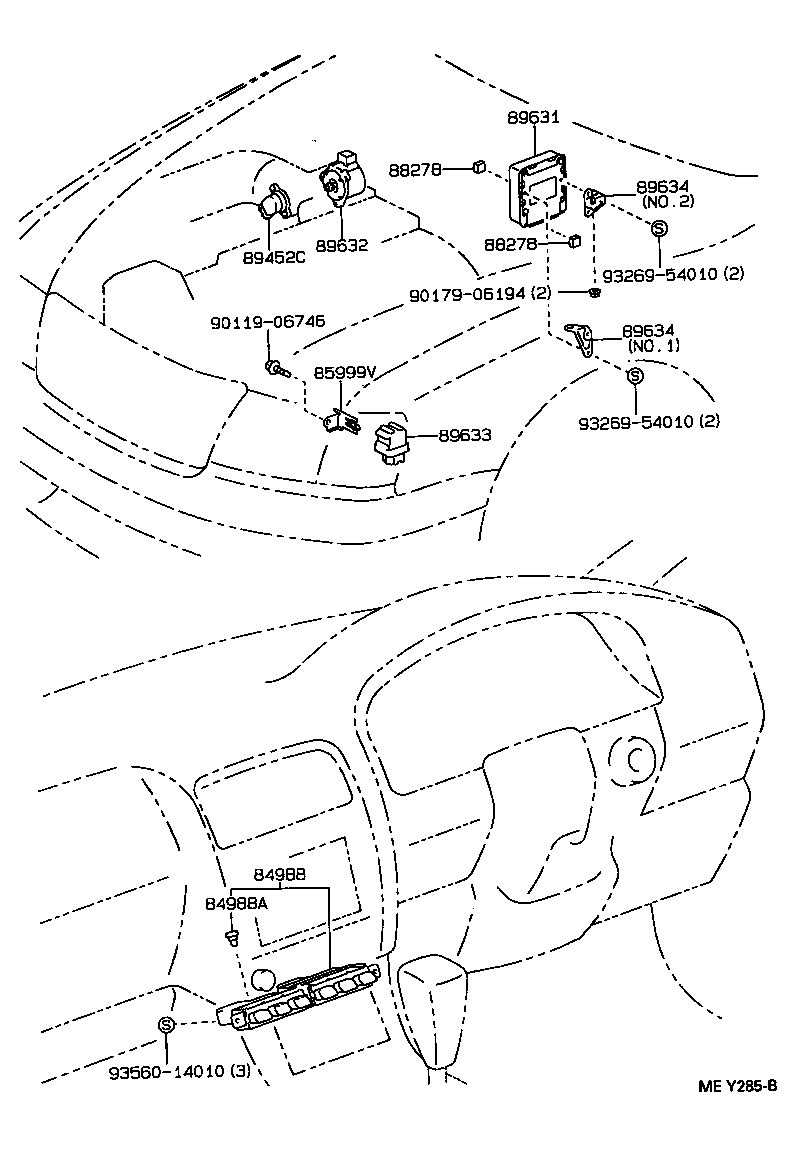

ILLUST NO. 1 OF 2(9410-9707)

Click highlighted areas on diagram

diagram 84988 84988A 85999V 88278 88278 89452C 89631 89632 89633 89634 89634 9011906746 9017906194 9326954010 9326954010 9356014010
Part # Description Qty Price
84988 - SWITCH, TRACTION CONTROL
84988-50120

UCF20..ARL,EUR

W(HEADLAMP CLEANER)

 1
84988-50130

UCF20..ARL;UCF20..LHD..EUR

W(HEADLAMP CLEANER & FRONT SEAT HEATER)

 1
84988A - BULB, TRACTION CONTROL SWITCH
84999-10650

UCF20..5FC;UCF20..LHD..EUR..4FC;UCF20..(ARL,GEN)..4FC

14V 0.63W

 1
85999V - BRACKET, RELAY
85999-50170

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
88278 - CUSHION, SKID CONTROL COMPUTER
88278-50010

UCF20..ARL,GEN;UCF20..LHD..EUR

 2
88278 - CUSHION, SKID CONTROL COMPUTER
88278-50010

UCF20..ARL,GEN;UCF20..LHD..EUR

 2
89452C - SENSOR, THROTTLE POSITION
89452-50020

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89452-32060

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89452-50040

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89631 - COMPUTER, TRACTION CONTROL
89631-50020

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89632 - MOTOR, TRACTION THROTTLE VALVE
89632-50020

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89633 - RELAY, TRACTION CONTROL
89633-50030

UCF20..ARL,GEN;UCF20..LHD..EUR

 1
89634 - BRACKET, TRACTION CONTROL COMPUTER
89634-50060

UCF20..ARL,GEN;UCF20..LHD..EUR

NO.2

 1
89634-50050

UCF20..ARL,GEN;UCF20..LHD..EUR

NO.1

 1
89634 - BRACKET, TRACTION CONTROL COMPUTER
89634-50060

UCF20..ARL,GEN;UCF20..LHD..EUR

NO.2

 1
89634-50050

UCF20..ARL,GEN;UCF20..LHD..EUR

NO.1

 1
Common parts
90119-06746
90179-06194
93269-54010
93560-14010
