UCF20L-AEPGKW (1994)
Toyota Lexus Ls400
(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-50030 |
UCF20 |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-50030 |
UCF20 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-50020E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 69205-50020C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 69205-50020B0 |
UCF20 DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205-50020G0 |
UCF20..ARL,EUR,GEN DK.AGATE,TRIM6# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90541-04014 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90541-04014 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 90541-04014 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-50020E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 69206-50020B0 |
UCF20 DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-50020C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 69206-50020G0 |
UCF20..ARL,EUR,GEN DK.AGATE,TRIM6# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-50020C0 |
UCF20..EUR,GEN,V BLACK,202 |
1 | ||
| 69230-50020A0 |
UCF20 SU.WHITE PM,051 |
1 | ||
| 69230-50020B0 |
UCF20 SILVER ME,199 |
1 | ||
| 69230-50020E0 |
UCF20 BEIGE ME.,4M9 |
1 | ||
| 69230-50020J1 |
UCF20 DK BLUE MC.,8L1 |
1 | ||
| 69230-50020G0 |
UCF20 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69230-50020G2 |
UCF20 DK.GREEN M.M.,6P3 |
1 | ||
| 69230-50021G2 |
UCF20 DK.GREEN M.M.,6P3 |
1 | ||
| 69230-50020G1 |
UCF20 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 69230-50021G0 |
UCF20 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69230-50021C0 |
UCF20..5FC;UCF20..(EUR,GEN,V)..4FC BLACK,202 |
1 | ||
| 69230-50020E1 |
UCF20 GRAYISH BROWN ME.,4N1 |
1 | ||
| 69230-50021E1 |
UCF20 GRAYISH BROWN ME.,4N1 |
1 | ||
| 69230-50021G1 |
UCF20 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 69230-50021J1 |
UCF20 DK.BLUE MC.,8L1 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
UCF20 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-50020G0 |
UCF20 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69240-50020E0 |
UCF20 BEIGE ME.,4M9 |
1 | ||
| 69240-50020C0 |
UCF20..EUR,GEN,V BLACK,202 |
1 | ||
| 69240-50020A0 |
UCF20 SU.WHITE PM,051 |
1 | ||
| 69240-50020B0 |
UCF20 SILVER ME,199 |
1 | ||
| 69240-50020E1 |
UCF20 GRAYISH BROWN ME.,4N1 |
1 | ||
| 69240-50020G1 |
UCF20 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 69240-50020J1 |
UCF20 DK BLUE MC.,8L1 |
1 | ||
| 69240-50021G1 |
UCF20 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 69240-50021E1 |
UCF20 GRAYISH BROWN ME.,4N1 |
1 | ||
| 69240-50020G2 |
UCF20 DK.GREEN M.M.,6P3 |
1 | ||
| 69240-50021J1 |
UCF20 DK.BLUE MC.,8L1 |
1 | ||
| 69240-50021G0 |
UCF20 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69240-50021C0 |
UCF20..5FC;UCF20..(EUR,GEN,V)..4FC BLACK,202 |
1 | ||
| 69240-50021G2 |
UCF20 DK.GREEN M.M.,6P3 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69297-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 69297-50010B0 |
UCF20 DK.BLUE GRAY,TRIM1# |
1 | ||
| 69297-50010G0 |
UCF20..ARL,EUR,GEN DK.AGATE,TRIM6# |
1 | ||
| 69297-50010E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69298-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 69298-50010G0 |
UCF20..ARL,EUR,GEN DK.AGATE,TRIM6# |
1 | ||
| 69298-50010E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 69298-50010B0 |
UCF20 DK.BLUE GRAY,TRIM1# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-50020 |
UCF20 |
1 | ||
| 69338 - KNOB, CHILD PROTECTOR LOCK LEVER | ||||
| 69338-50020 |
UCF20 |
2 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-50020 |
UCF20 |
1 | ||
| 69393A - COVER, REAR DOOR LOCK, OUTER RH | ||||
| 69393-50010 |
UCF20 |
1 | ||
| 69394 - COVER, REAR DOOR LOCK, OUTER LH | ||||
| 69394-50010 |
UCF20 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-50010 |
UCF20 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-50010 |
UCF20 |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-50020 |
UCF20 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-50020 |
UCF20 |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-50030 |
UCF20 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
UCF20 GREEN |
1 | ||
| 69759-24060 |
UCF20 GRAY |
1 | ||
| 69759-50040 |
UCF20 NATURAL |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
UCF20 GREEN |
1 | ||
| 69759-24060 |
UCF20 GRAY |
1 | ||
| 69759-50040 |
UCF20 NATURAL |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-24010 |
UCF20 NATURAL |
1 | ||
| 69759-20060 |
UCF20 GRAY |
1 | ||
| 69759-20070 |
UCF20 GREEN |
1 | ||
| 69759-24020 |
UCF20 BLUE |
1 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-24010 |
UCF20 NATURAL |
1 | ||
| 69759-20060 |
UCF20 GRAY |
1 | ||
| 69759-20070 |
UCF20 GREEN |
1 | ||
| 69759-24020 |
UCF20 BLUE |
1 | ||
| 69759W - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
UCF20 NATURAL |
1 | ||
| 69759-20030 |
UCF20 BLUE |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-50080 |
UCF20 |
2 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-50020 |
UCF20 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-50020 |
UCF20 |
1 | ||
| Common parts | ||||
| 82711-3F190 | ||||
| 82711-50860 | ||||
| 90148-60039 | ||||
| 90148-80027 | ||||
| 90158-60008 | ||||
| 90159-60303 | ||||
| 90168-40006 | ||||
| 90189-06199 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 91651-40612 | ||||

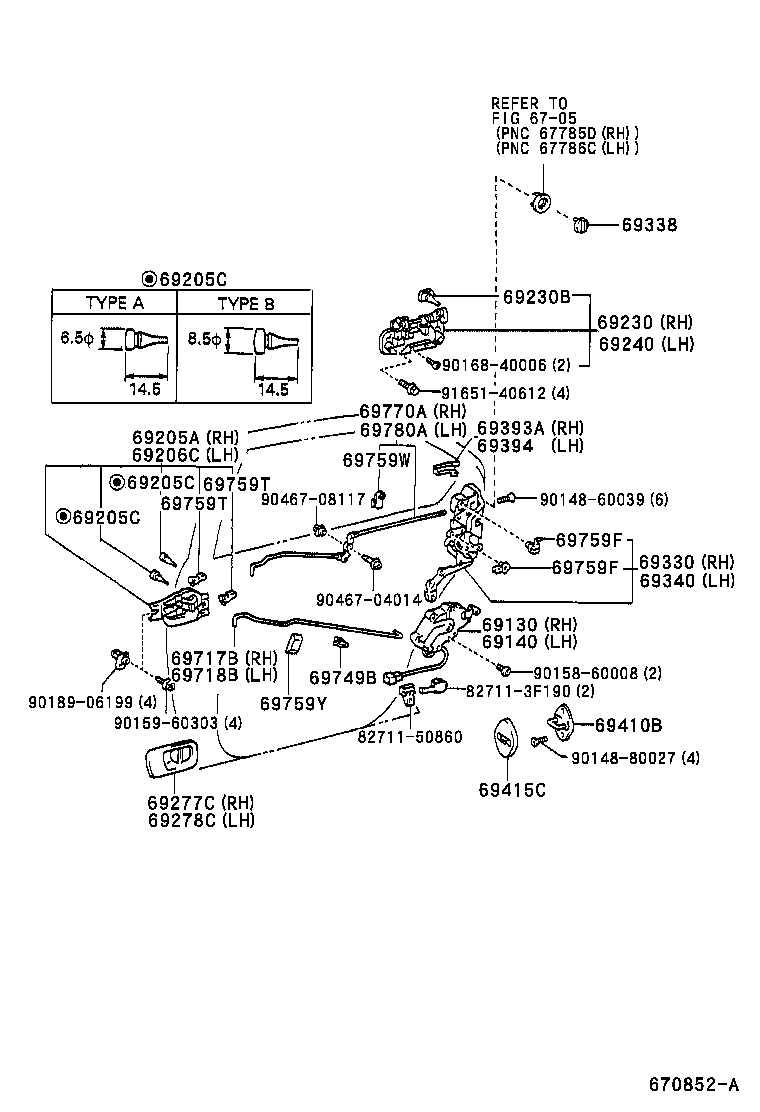

| Linked diagrams | ||||
| 6705 | ||||
