UCF20L-AEPGKW (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9410-9707)

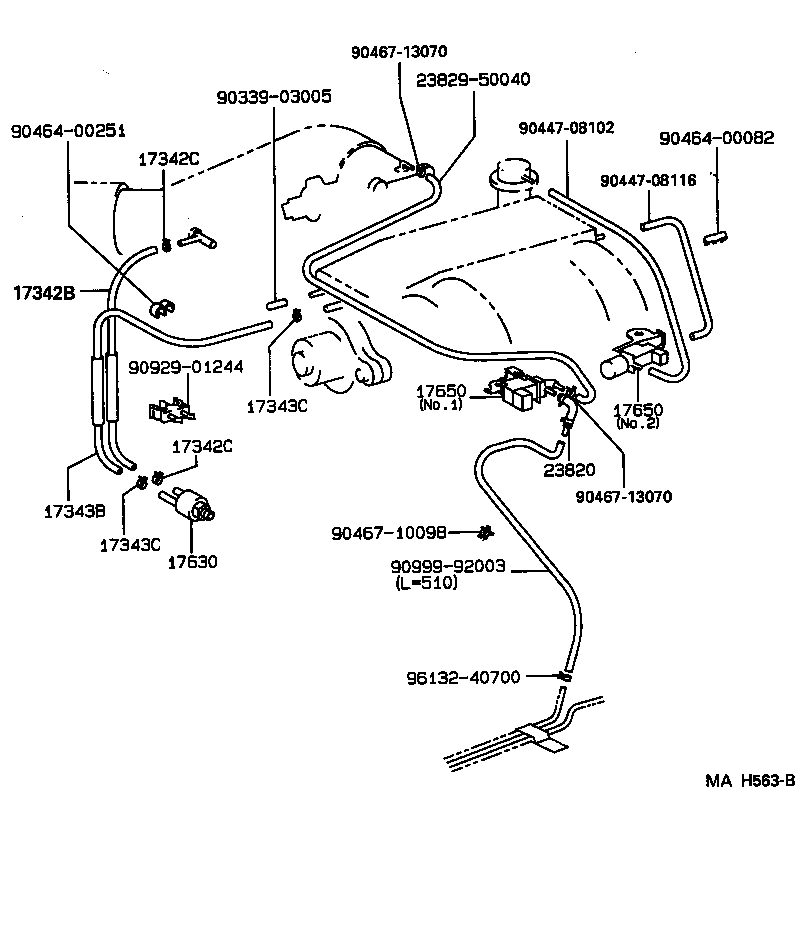

Click highlighted areas on diagram

diagram 17342B 17342C 17342C 17343B 17343C 17343C 17630 17650 17650 23820 2382950040 9033903005 9044708102 9044708116 9046400082 9046400251 9046710098 9046713070 9046713070 9092901244 9099992003 9613240700
Part # Description Qty Price
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50010

1UZFE..UCF20

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099

1UZFE..UCF20

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099

1UZFE..UCF20

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50010

1UZFE..UCF20

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

1UZFE..UCF20

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

1UZFE..UCF20

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1UZFE..UCF20

 1
17630-16040

1UZFE..UCF20

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50060

1UZFE..UCF20

NO.1

 1
25860-50070

1UZFE..UCF20

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50060

1UZFE..UCF20

NO.1

 1
25860-50070

1UZFE..UCF20

NO.2

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-50010

1UZFE..UCF20

 1
Common parts
23829-50040
90339-03005
90447-08102
90447-08116
90464-00082
90464-00251
90467-10098
90467-13070
90929-01244
90999-92003
96132-40700
