UCF20L-AEPGKV (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9410- )

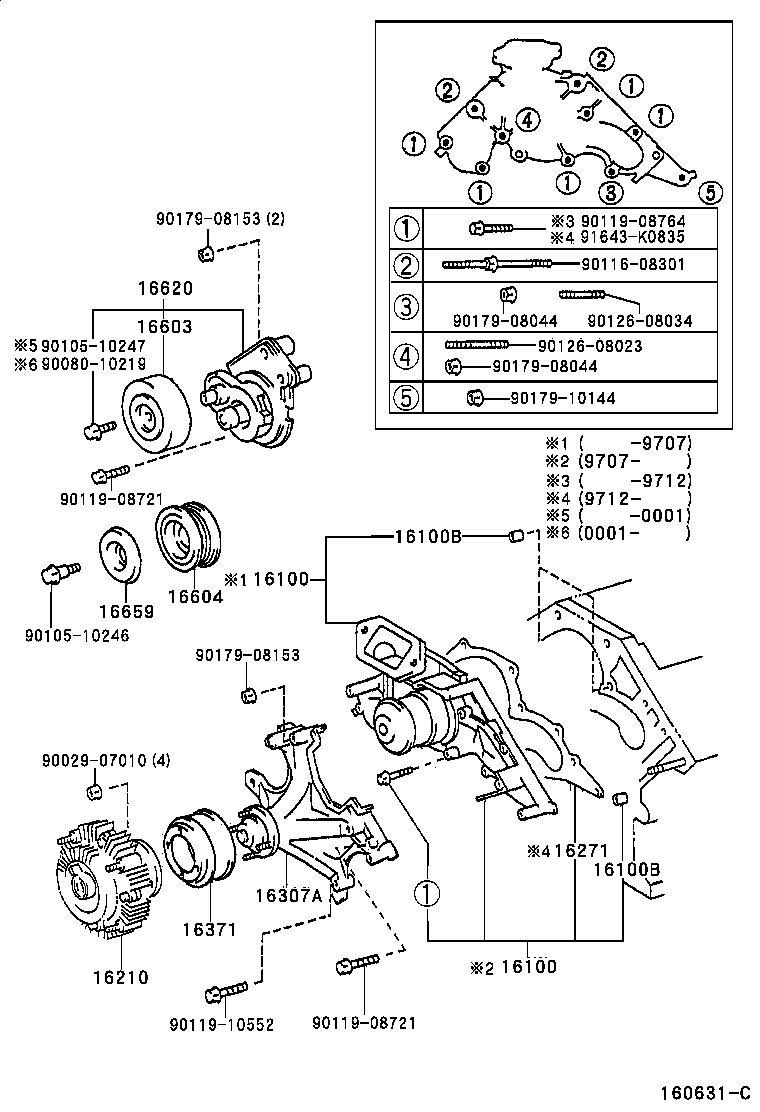

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-50022	1UZFE..UCF20	10/1994 - 07/1997	1
16100 - PUMP ASSY, ENGINE WATER
16100-50022	1UZFE..UCF20	10/1994 - 07/1997	1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021	1UZFE..UCF20	10/1994 - 12/2999	2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021	1UZFE..UCF20	10/1994 - 12/2999	2
16210 - COUPLING ASSY, FLUID
16210-50040	1UZFE..UCF20..V	10/1994 - 07/1997	1
16307A - BRACKET SUB-ASSY, FAN
16307-50011	1UZFE..UCF20	10/1994 - 07/1997	1
16371 - PULLEY, FAN
16371-50030	1UZFE..UCF20	08/1995 - 12/2999	1
16371-50020	1UZFE..UCF20	10/1994 - 08/1995	1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-50010	1UZFE..UCF20	10/1994 - 05/1995	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-50010	1UZFE..UCF20	10/1994 - 07/1997	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W032	1UZFE..UCF20	07/1995 - 08/1995	1
16620-0W030	1UZFE..UCF20	10/1994 - 05/1995	1
16620-0W033	1UZFE..UCF20	08/1995 - 09/1995	1
16620-0W031	1UZFE..UCF20	05/1995 - 07/1995	1
16620-0W035	1UZFE..UCF20	06/1997 - 07/1997	1
16620-0W034	1UZFE..UCF20	09/1995 - 06/1997	1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-50020	1UZFE..UCF20	10/1994 - 10/1996	1
Common parts
90029-07010
90080-10219
90105-10246
90105-10247
90116-08301
90119-08721
90119-08764
90119-10552
90126-08023
90126-08034
90179-08044
90179-08153
90179-10144
91643-K0835
