UCF20L-AEPGKV (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

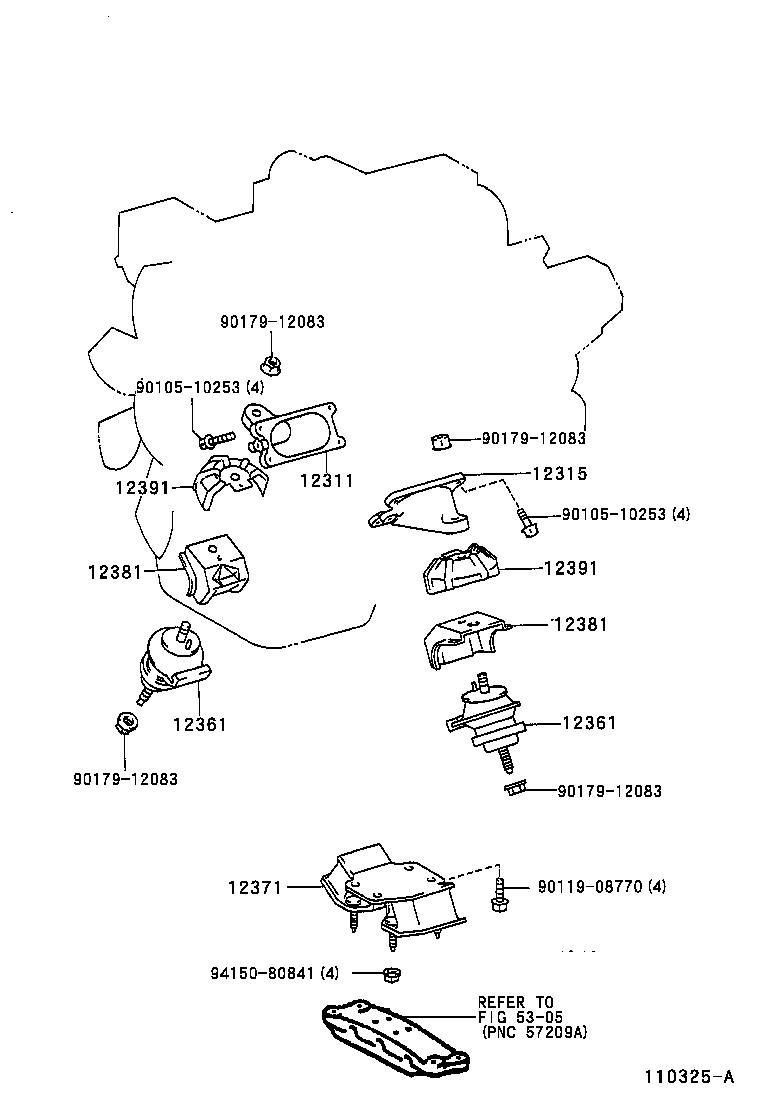

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 12391 5305 9010510253 9010510253 9011908770 9017912083 9017912083 9017912083 9017912083 9415080841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50020

1UZFE..UCF20

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50010

1UZFE..UCF20

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50021

1UZFE..UCF20

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50021

1UZFE..UCF20

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50060

1UZFE..UCF20

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-50040

1UZFE..UCF20

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-50040

1UZFE..UCF20

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-50020

1UZFE..UCF20

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-50020

1UZFE..UCF20

 2
Common parts
90105-10253
90119-08770
90179-12083
94150-80841
Linked diagrams
5305
