UCF20L-AEAGKV (1997)
Toyota Lexus Ls400

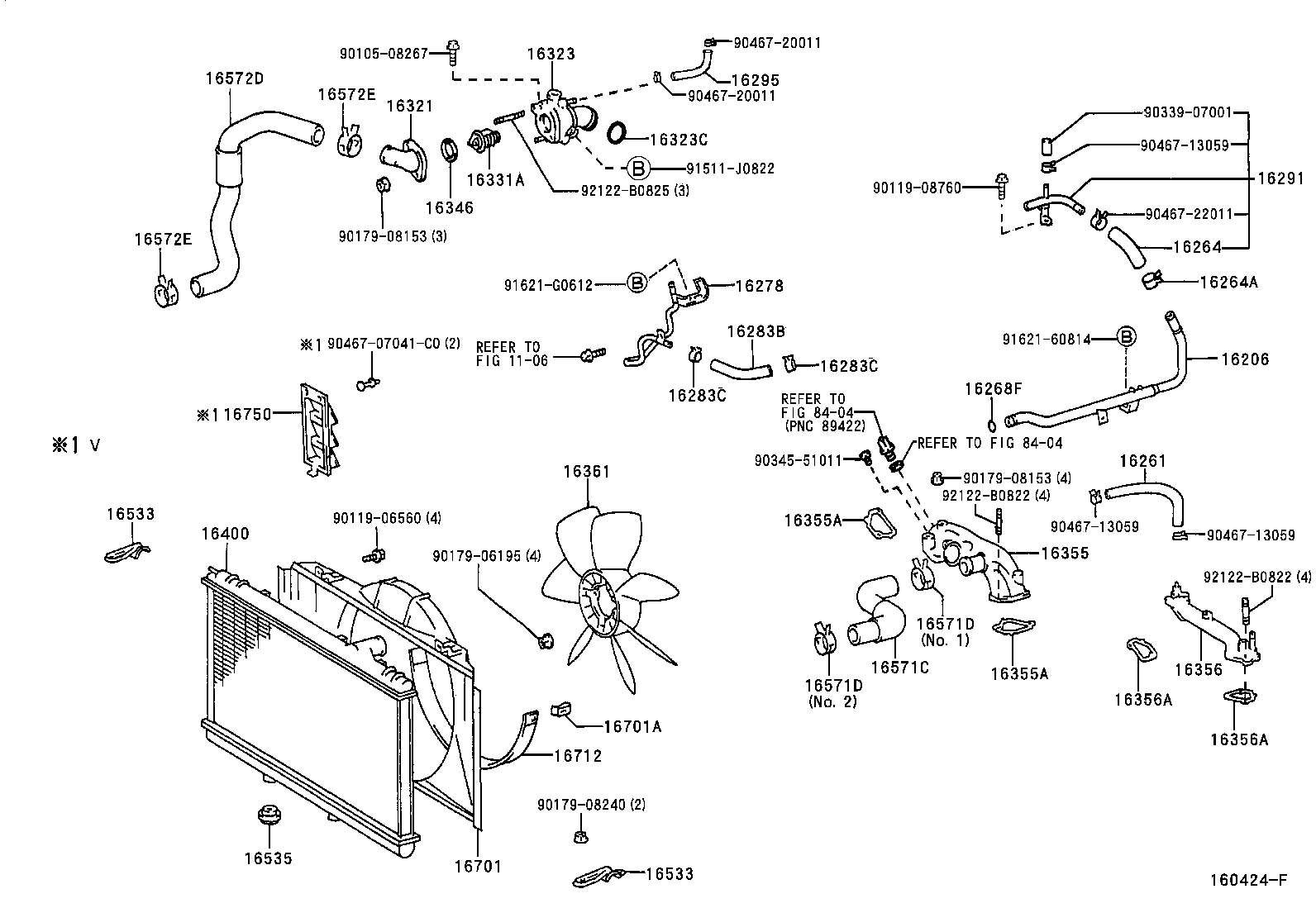

ILLUST NO. 1 OF 2(9707- )1UZFE..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50090 |
1UZFE..UCF20..LHD |
1 | ||
| 16206-50120 |
1UZFE..UCF20..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50090 |
1UZFE..UCF20 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-50040 |
1UZFE..UCF20..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22008 |
1UZFE..UCF20 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
1UZFE..UCF20 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-50011 |
1UZFE..UCF20 |
1 | ||
| 16278-50030 |
1UZFE..UCF20 |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16283-50011 |
1UZFE..UCF20 |
1 | ||
| 99565-00130 |
1UZFE..UCF20 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-11056 |
1UZFE..UCF20 |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-11056 |
1UZFE..UCF20 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-50010 |
1UZFE..UCF20..LHD |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-50050 |
1UZFE..UCF20..EUR,GEN,V |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-50020 |
1UZFE..UCF20 |
1 | ||
| 16321-50010 |
1UZFE..UCF20 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-50100 |
1UZFE..UCF20 |
1 | ||
| 16032-50031 |
1UZFE..UCF20..EUR,GEN,V |
1 | ||
| 16032-50060 |
1UZFE..UCF20 |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
1UZFE..UCF20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1UZFE..UCF20 *WAX 82-95 |
1 | ||
| 90916-03100 |
1UZFE..UCF20 *WAX 82-95 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-32010 |
1UZFE..UCF20 |
1 | ||
| 16346-50010 |
1UZFE..UCF20 |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50030 |
1UZFE..UCF20 |
1 | ||
| 16355-50070 |
1UZFE..UCF20 |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
1UZFE..UCF20 |
2 | ||
| 16341-50010 |
1UZFE..UCF20 |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
1UZFE..UCF20 |
2 | ||
| 16341-50010 |
1UZFE..UCF20 |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50080 |
1UZFE..UCF20..LHD |
1 | ||
| 16356-50060 |
1UZFE..UCF20..V |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
1UZFE..UCF20 |
2 | ||
| 16341-50010 |
1UZFE..UCF20..ARL,GEN,V |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
1UZFE..UCF20 |
2 | ||
| 16341-50010 |
1UZFE..UCF20..ARL,GEN,V |
2 | ||
| 16361 - FAN | ||||
| 16361-50020 |
1UZFE..UCF20 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50150 |
1UZFE..UCF20..(EUR,V)..4FC;1UZFE..UCF20..(ARL,EUR,V)..5FC |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16506-50040 |
1UZFE..UCF20 LH |
1 | ||
| 16505-50070 |
1UZFE..UCF20 RH |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16506-50040 |
1UZFE..UCF20 LH |
1 | ||
| 16505-50070 |
1UZFE..UCF20 RH |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1UZFE..UCF20 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-50110 |
1UZFE..UCF20 |
1 | ||
| 16571-50070 |
1UZFE..UCF20 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41007 |
1UZFE..UCF20 NO.2 |
2 | ||
| 90466-41003 |
1UZFE..UCF20 NO.1 |
1 | ||
| 90467-41007 |
1UZFE..UCF20 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41007 |
1UZFE..UCF20 NO.2 |
2 | ||
| 90466-41003 |
1UZFE..UCF20 NO.1 |
1 | ||
| 90467-41007 |
1UZFE..UCF20 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-50120 |
1UZFE..UCF20 |
1 | ||
| 16572-50090 |
1UZFE..UCF20 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-41007 |
1UZFE..UCF20 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-41007 |
1UZFE..UCF20 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-50060 |
1UZFE..UCF20..V |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06073 |
1UZFE..UCF20 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-50030 |
1UZFE..UCF20 |
1 | ||
| 16750 - DUCT ASSY, FAN SHROUD VENTILATION | ||||
| 16750-50011 |
1UZFE..UCF20..V |
1 | ||
| Common parts | ||||
| 90105-08267 | ||||
| 90119-06560 | ||||
| 90119-08760 | ||||
| 90179-06195 | ||||
| 90179-08153 | ||||
| 90179-08240 | ||||
| 90339-07001 | ||||
| 90345-51011 | ||||
| 90467-07041C0 | ||||
| 90467-13059 | ||||
| 90467-20011 | ||||
| 90467-22011 | ||||
| 91511-J0822 | ||||
| 91621-60814 | ||||
| 91621-G0612 | ||||
| 92122-B0822 | ||||
| 92122-B0825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8404 | ||||
