UCF10R-AEPGKW (1989)
Toyota Lexus Ls400
(8912- )

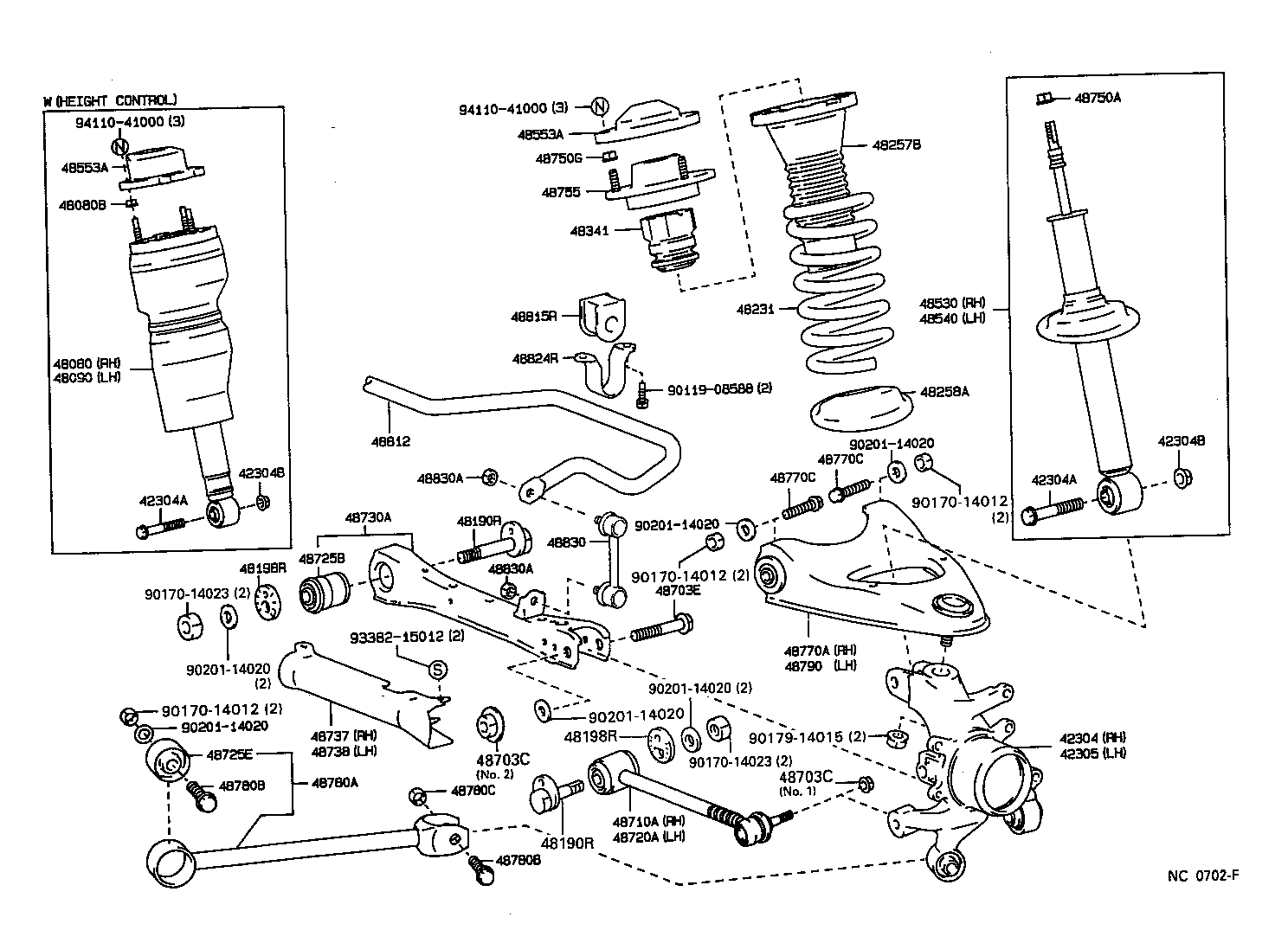

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-50030 |
UCF10 |
1 | ||
| 42304-50010 |
UCF10 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90119-14025 |
UCF10 |
2 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90119-14025 |
UCF10 |
2 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-14037 |
UCF10 |
2 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-14037 |
UCF10 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-50030 |
UCF10 |
1 | ||
| 42305-50010 |
UCF10 |
1 | ||
| 48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER | ||||
| 48080-50030 |
UCF10..EUR |
1 | ||
| 48080B - NUT(FOR PNEUMATIC CYLINDER REAR) | ||||
| 90179-10088 |
UCF10..EUR |
6 | ||
| 48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER | ||||
| 48090-50030 |
UCF10..EUR |
1 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-50011 |
UCF10 |
4 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-50011 |
UCF10 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-50011 |
UCF10 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-50011 |
UCF10 |
4 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-50020 |
UCF10..RHD..EUR IRELAND SPEC |
2 | ||
| 48231-50060 |
UCF10 |
2 | ||
| 48231-50040 |
UCF10 |
2 | ||
| 48231-50080 |
UCF10..RHD..EUR IRELAND SPEC |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-50010 |
UCF10 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-50010 |
UCF10 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-50010 |
UCF10 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59065 |
UCF10..RHD..EUR IRELAND SPEC |
1 | ||
| 48530-59035 |
UCF10 |
1 | ||
| 48530-59075 |
UCF10..RHD |
1 | ||
| 48530-59045 |
UCF10..RHD..EUR IRELAND SPEC |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-59045 |
UCF10..RHD..EUR IRELAND SPEC |
1 | ||
| 48530-59075 |
UCF10..RHD |
1 | ||
| 48530-59065 |
UCF10..RHD..EUR IRELAND SPEC |
1 | ||
| 48530-59035 |
UCF10 |
1 | ||
| 48553A - CAP, SHOCK ABSORBER | ||||
| 48553-50020 |
UCF10 |
2 | ||
| 48553-50030 |
UCF10..EUR W(AIR SUSPENSION) |
2 | ||
| 48553A - CAP, SHOCK ABSORBER | ||||
| 48553-50020 |
UCF10 |
2 | ||
| 48553-50030 |
UCF10..EUR W(AIR SUSPENSION) |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14045 |
UCF10 NO.2(CARRIER SIDE) |
2 | ||
| 90179-14045 |
UCF10 NO.2(CARRIER SIDE) |
2 | ||
| 90179-12027 |
UCF10 NO.1(CARRIER SIDE) |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14045 |
UCF10 NO.2(CARRIER SIDE) |
2 | ||
| 90179-14045 |
UCF10 NO.2(CARRIER SIDE) |
2 | ||
| 90179-12027 |
UCF10 NO.1(CARRIER SIDE) |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-14035 |
UCF10 *14-1.5PX70-64 |
2 | ||
| 90119-14026 |
UCF10 *14-1.5PX70-64 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-50020 |
UCF10..EUR W(AIR SUSPENSION) |
1 | ||
| 48710-50010 |
UCF10 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-50010 |
UCF10 |
1 | ||
| 48720-50010 |
UCF10..EUR W(AIR SUSPENSION) |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-50030 |
UCF10 |
2 | ||
| 48725E - BUSH, REAR STRUT ROD | ||||
| 48725-22110 |
UCF10 |
2 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-50010 |
UCF10 |
2 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-50010 |
UCF10 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-50010 |
UCF10 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 94187-11200 |
UCF10 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-10088 |
UCF10 |
6 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-50060 |
UCF10 |
2 | ||
| 48755-50040 |
UCF10 |
2 | ||
| 48755-50020 |
UCF10 |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-50010 |
UCF10 |
1 | ||
| 48770C - BOLT(FOR REAR UPPER CONTROL ARM) | ||||
| 90105-14074 |
UCF10 |
4 | ||
| 48770C - BOLT(FOR REAR UPPER CONTROL ARM) | ||||
| 90105-14074 |
UCF10 |
4 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-50010 |
UCF10 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14026 |
UCF10 CARRIER SIDE |
2 | ||
| 90105-14065 |
UCF10 BODY SIDE |
2 | ||
| 90119-14035 |
UCF10 CARRIER SIDE |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14026 |
UCF10 CARRIER SIDE |
2 | ||
| 90105-14065 |
UCF10 BODY SIDE |
2 | ||
| 90119-14035 |
UCF10 CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-14045 |
UCF10 |
2 | ||
| 90179-14045 |
UCF10 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-50010 |
UCF10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-50020 |
UCF10 |
1 | ||
| 48812-50040 |
UCF10 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-50050 |
UCF10 |
2 | ||
| 48815-50080 |
UCF10 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-50010 |
UCF10 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-50020 |
UCF10 |
2 | ||
| 48830-50010 |
UCF10 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
UCF10 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
UCF10 |
4 | ||
| Common parts | ||||
| 90119-08588 | ||||
| 90170-14012 | ||||
| 90170-14023 | ||||
| 90179-14015 | ||||
| 90201-14020 | ||||
| 93382-15012 | ||||
| 94110-41000 | ||||
