UCF10R-AEPGKW (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1UZFE..ARL,EUR ; (9108- )1UZFE..GEN

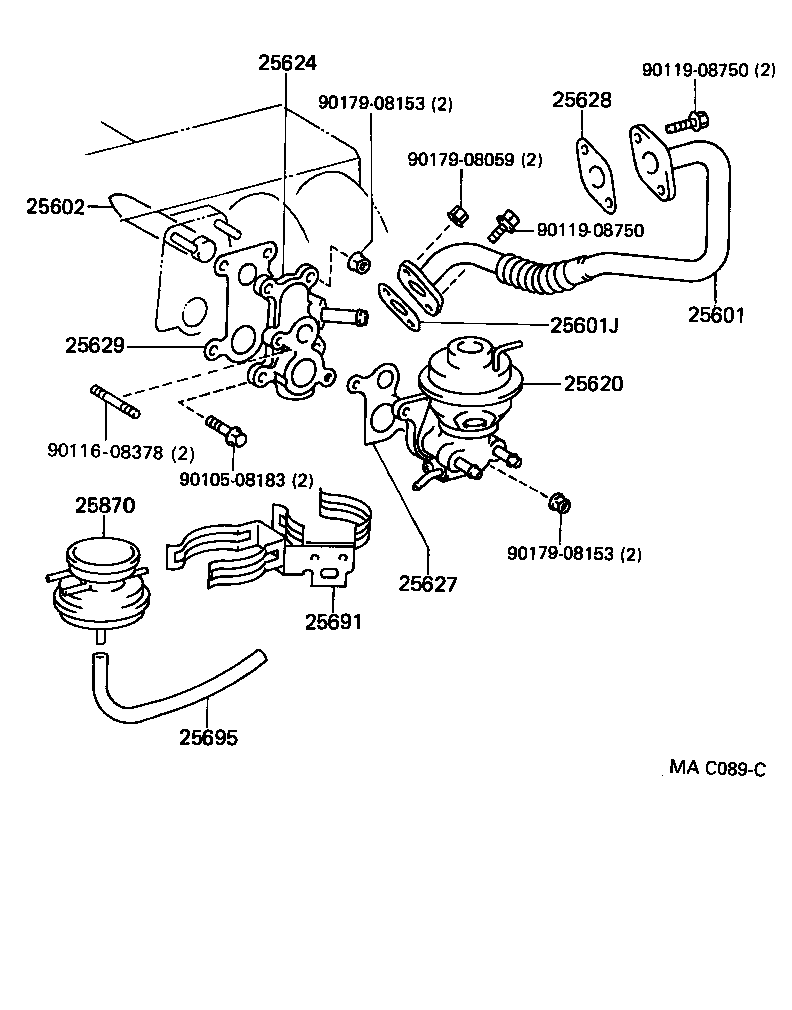

Click highlighted areas on diagram

GEN=HONGKONG SPEC

diagram 25601 25601J 25602 25620 25624 25627 25628 25629 25691 25695 25870 9010508183 9011608378 9011908750 9011908750 9017908059 9017908153 9017908153
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-50020

1UZFE..UCF10..RHD..(ARL,EUR)

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
25634-50010

1UZFE..UCF10..ARL,EUR

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-50010

1UZFE..UCF10

 1
25612-50010

1UZFE..UCF10..ARL,EUR

 1
25620 - VALVE ASSY, EGR
25620-50010

1UZFE..UCF10..ARL,EUR

 1
25624 - ADAPTER, EGR VALVE
25624-50010

1UZFE..UCF10..ARL,EUR

 1
25627 - GASKET, EGR VALVE
25627-50010

1UZFE..UCF10..ARL,EUR

 1
25628 - GASKET, EGR INLET
25628-50010

1UZFE..UCF10..ARL,EUR

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-50010

1UZFE..UCF10..ARL,EUR

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-50010

1UZFE..UCF10..ARL,EUR

 1
25691-50011

1UZFE..UCF10..ARL,EUR

 1
25691-50010

1UZFE..UCF10..ARL,EUR

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-50010

1UZFE..UCF10..ARL,EUR

 1
25870 - VALVE ASSY, EGR VACUUM MODULATOR
25870-50010

1UZFE..UCF10..ARL,EUR

 1
Common parts
90105-08183
90116-08378
90119-08750
90179-08059
90179-08153
