UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400
(8912- )ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
UCF10..ARL,EUR |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
UCF10..ARL,EUR |
2 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85376-50010 |
UCF10..ARL,EUR L=50,NO.1 |
1 | ||
| 90445-14071 |
UCF10..ARL,EUR L=50,NO.2 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85376-50010 |
UCF10..ARL,EUR L=50,NO.1 |
1 | ||
| 90445-14071 |
UCF10..ARL,EUR L=50,NO.2 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-50010 |
UCF10..ARL,EUR L=1124 |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-50011 |
UCF10..ARL,EUR |
1 | ||
| 85280-50010 |
UCF10..ARL,EUR |
1 | ||
| 85280-50020 |
UCF10..ARL,EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
UCF10..ARL,EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-5001001 |
UCF10..ARL,EUR BLACK,202 |
2 | ||
| 85044-5001005 |
UCF10..ARL,EUR BEIGE METALLIC,4K9 |
2 | ||
| 85044-5001003 |
UCF10..ARL,EUR BLUISH GRAY MICA M,172 |
2 | ||
| 85044-50010E0 |
UCF10..ARL,EUR LI.RE.BROWN ME,4K7 |
2 | ||
| 85044-5001008 |
UCF10..ARL,EUR WHITE PEARL MICA,051 |
2 | ||
| 85044-5001007 |
UCF10..ARL,EUR DARK GREEN M.I.O.,6K4 |
2 | ||
| 85044-5001023 |
UCF10..ARL,EUR GRAY MICA METALLIC,180 |
2 | ||
| 85044-50010J0 |
UCF10..ARL,EUR DK.BLUE MCFP,8J5 |
2 | ||
| 85044-50010A0 |
UCF10..ARL,EUR SU.WHITE PM.,051 |
2 | ||
| 85044-50010G0 |
UCF10..ARL,EUR DK.GREEN MI,6K4 |
2 | ||
| 85044-5001012 |
UCF10..ARL,EUR GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85044-5001002 |
UCF10..ARL,EUR DEEP RED MICA,3H8 |
2 | ||
| 85044-50010B0 |
UCF10..ARL,EUR SILVER ME.,199 |
2 | ||
| 85044-5001010 |
UCF10..ARL,EUR GRAY MICA M,180 |
2 | ||
| 85044-5001022 |
UCF10..ARL,EUR BLACK,202 |
2 | ||
| 85044-5001016 |
UCF10..ARL,EUR SUPER SILVER 3 M,176 |
2 | ||
| 85044-5001013 |
UCF10..ARL,EUR SUPER SILVER 3 M,176 |
2 | ||
| 85044-5001049 |
UCF10..ARL,EUR BEIGE MM,4K9 |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-5001001 |
UCF10..ARL,EUR BLACK,202 |
2 | ||
| 85044-5001005 |
UCF10..ARL,EUR BEIGE METALLIC,4K9 |
2 | ||
| 85044-5001003 |
UCF10..ARL,EUR BLUISH GRAY MICA M,172 |
2 | ||
| 85044-50010E0 |
UCF10..ARL,EUR LI.RE.BROWN ME,4K7 |
2 | ||
| 85044-5001008 |
UCF10..ARL,EUR WHITE PEARL MICA,051 |
2 | ||
| 85044-5001007 |
UCF10..ARL,EUR DARK GREEN M.I.O.,6K4 |
2 | ||
| 85044-5001023 |
UCF10..ARL,EUR GRAY MICA METALLIC,180 |
2 | ||
| 85044-50010J0 |
UCF10..ARL,EUR DK.BLUE MCFP,8J5 |
2 | ||
| 85044-50010A0 |
UCF10..ARL,EUR SU.WHITE PM.,051 |
2 | ||
| 85044-50010G0 |
UCF10..ARL,EUR DK.GREEN MI,6K4 |
2 | ||
| 85044-5001012 |
UCF10..ARL,EUR GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85044-5001002 |
UCF10..ARL,EUR DEEP RED MICA,3H8 |
2 | ||
| 85044-50010B0 |
UCF10..ARL,EUR SILVER ME.,199 |
2 | ||
| 85044-5001010 |
UCF10..ARL,EUR GRAY MICA M,180 |
2 | ||
| 85044-5001022 |
UCF10..ARL,EUR BLACK,202 |
2 | ||
| 85044-5001016 |
UCF10..ARL,EUR SUPER SILVER 3 M,176 |
2 | ||
| 85044-5001013 |
UCF10..ARL,EUR SUPER SILVER 3 M,176 |
2 | ||
| 85044-5001049 |
UCF10..ARL,EUR BEIGE MM,4K9 |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
UCF10..ARL,EUR |
1 | ||
| 85361C - BRACKET, WASHER | ||||
| 85277-50010 |
UCF10..ARL,EUR |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-50020 |
UCF10..ARL,EUR |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-50020 |
UCF10..ARL,EUR |
2 | ||
| Common parts | ||||
| 82711-22140 | ||||
| 85272-14010 | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90075-99111 | ||||

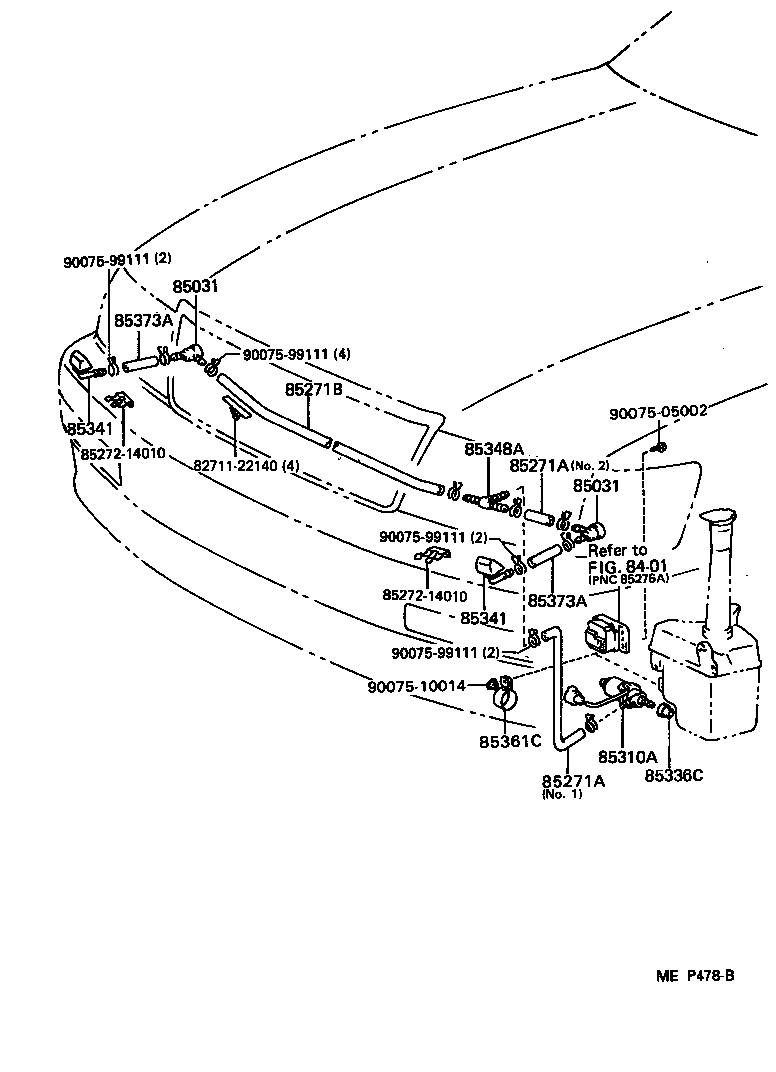

| Linked diagrams | ||||
| 8401 | ||||
