UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400
ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55445E - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-50020 |
UCF10 |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-50010 |
UCF10..ARL,GEN,V |
4 | ||
| 81230-30140 |
UCF10..ARL,GEN,V |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
UCF10 12V 3.8W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
UCF10..ARL,GEN,V |
4 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-50010 |
UCF10 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-5003004 |
UCF10 W(MOON ROOF),DARK BLUE,TRIM8# |
1 | ||
| 81260-5002004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 81260-5002006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 81260-5003003 |
UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 81260-5002005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 81260-5002003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 81260-50050J0 |
UCF10 W(MOON ROOF),DK.BLUE,TRIM8# |
1 | ||
| 81260-5003006 |
UCF10 W(MOON ROOF),DARK ROSE,TRIM4# |
1 | ||
| 81260-5003005 |
UCF10 W(MOON ROOF),GREIGE,TRIM0# |
1 | ||
| 81260-50040B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 81260-50050E0 |
UCF10 W(MOON ROOF),OAK,TRIM0# |
1 | ||
| 81260-50040K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 81260-50040E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 81260-50040J0 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 81260-50050K0 |
UCF10..ARL,GEN,V W(MOON ROOF),TAUPE,TRIM9# |
1 | ||
| 81260-50050B0 |
UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-5003004 |
UCF10 W(MOON ROOF),DARK BLUE,TRIM8# |
1 | ||
| 81260-5002004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 81260-5002006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 81260-5003003 |
UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 81260-5002005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 81260-5002003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 81260-50050J0 |
UCF10 W(MOON ROOF),DK.BLUE,TRIM8# |
1 | ||
| 81260-5003006 |
UCF10 W(MOON ROOF),DARK ROSE,TRIM4# |
1 | ||
| 81260-5003005 |
UCF10 W(MOON ROOF),GREIGE,TRIM0# |
1 | ||
| 81260-50040B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 81260-50050E0 |
UCF10 W(MOON ROOF),OAK,TRIM0# |
1 | ||
| 81260-50040K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 81260-50040E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 81260-50040J0 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 81260-50050K0 |
UCF10..ARL,GEN,V W(MOON ROOF),TAUPE,TRIM9# |
1 | ||
| 81260-50050B0 |
UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
UCF10 12V 10W,MAP LAMP |
2 | ||
| 99132-12100 |
UCF10 12V 10W,ROOM LAMP |
1 | ||
| 90981-12005 |
UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-50020 |
UCF10 |
1 | ||
| 81261-50030 |
UCF10 W(MOON ROOF) |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-50020 |
UCF10 |
1 | ||
| 81261-50030 |
UCF10 W(MOON ROOF) |
1 | ||
| 81261B - LENS,GLOVE BOX LAMP | ||||
| 81261-50010 |
UCF10 |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-50040E1 |
UCF10 GREIGE,TRIM0#,LH |
1 | ||
| 81350-50050J1 |
UCF10 DK. BLUE,TRIM8#,RH |
1 | ||
| 81350-50050E1 |
UCF10 OAK,TRIM0#,RH |
1 | ||
| 81340-50040B1 |
UCF10 SHADOW GRAY,TRIM1#,LH |
1 | ||
| 81340-50040E2 |
UCF10 DARK ROSE,TRIM4#,LH |
1 | ||
| 81350-50030J0 |
UCF10 DARK BLUE,TRIM8#,RH |
1 | ||
| 81340-50040J0 |
UCF10 DARK BLUE,TRIM8#,LH |
1 | ||
| 81350-50030E1 |
UCF10 GREIGE,TRIM0#,RH |
1 | ||
| 81340-50050K1 |
UCF10..ARL,GEN,V TAUPE,TRIM9#,LH |
1 | ||
| 81340-50050E1 |
UCF10 OAK,TRIM0#,LH |
1 | ||
| 81350-50030B1 |
UCF10 SHADOW GRAY,TRIM1#,RH |
1 | ||
| 81340-50050B1 |
UCF10 SHADOW GRAY,TRIM1#,LH |
1 | ||
| 81350-50050K1 |
UCF10..ARL,GEN,V TAUPE,TRIM9#,RH |
1 | ||
| 81350-50050B1 |
UCF10 SHADOW GRAY,TRIM1#,RH |
1 | ||
| 81340-50050J1 |
UCF10 DK. BLUE,TRIM8#,LH |
1 | ||
| 81350-50030E2 |
UCF10 DARK ROSE,TRIM4#,RH |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
UCF10 12V 3W |
2 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-50010 |
UCF10 |
2 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
2 | ||
| 90981-11041 |
UCF10..V;UCF10..RHD 14V 1.4W |
2 | ||
| 90981-11041 |
UCF10 14V 1.4W |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-50010 |
UCF10 |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11041 |
UCF10 14V 1.4W |
1 | ||
| 90981-11041 |
UCF10 14V 1.4W |
1 | ||
| 90981-11041 |
UCF10..V;UCF10..RHD 14V 1.4W |
1 | ||
| Common parts | ||||
| 90160-40021 | ||||
| 90189-04049 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93560-14010 | ||||

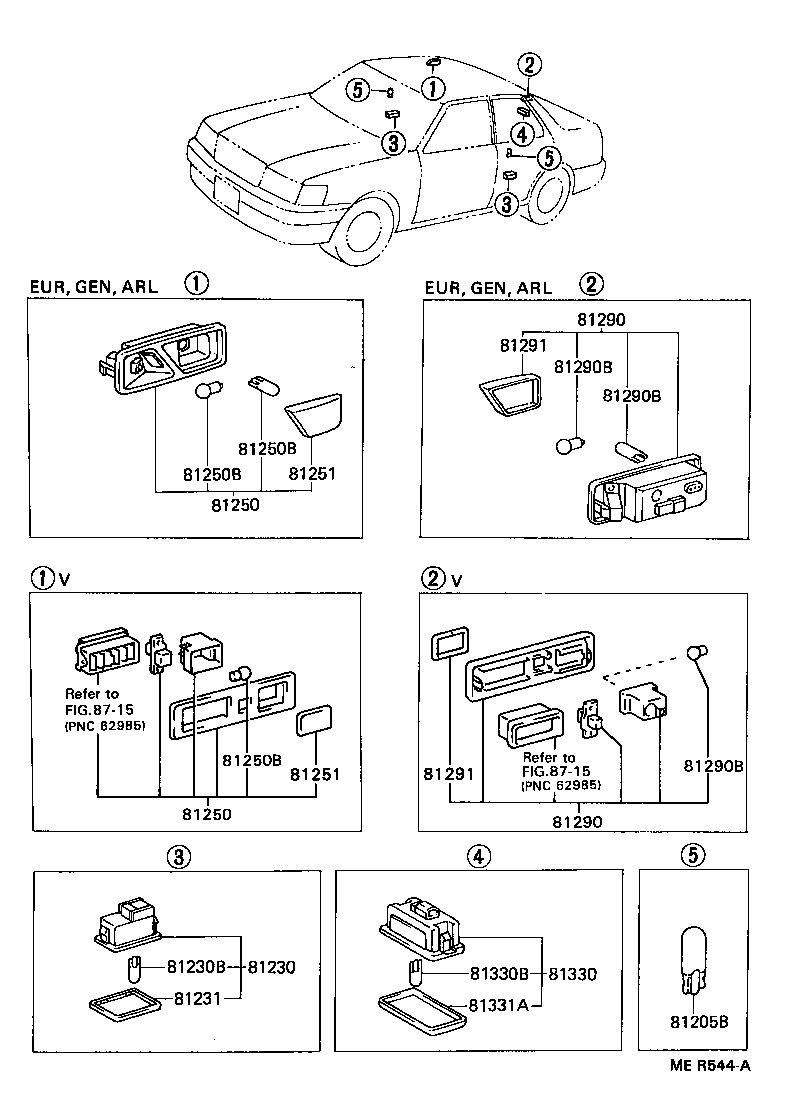

ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-50010 |
UCF10..ARL,GEN,V |
4 | ||
| 81230-30140 |
UCF10..ARL,GEN,V |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
UCF10 12V 3.8W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
UCF10..ARL,GEN,V |
4 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-5001004 |
UCF10..ARL,EUR,GEN DARK BLUE,TRIM8# |
1 | ||
| 81250-5001003 |
UCF10..ARL,EUR,GEN SHAD0W GRAY,TRIM1# |
1 | ||
| 81250-5001005 |
UCF10..ARL,EUR,GEN GREIGE,TRIM0# |
1 | ||
| 81250-50040B0 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81250-5001006 |
UCF10..ARL,EUR,GEN DARK ROSE,TRIM4# |
1 | ||
| 81250-50040J0 |
UCF10..ARL,EUR,GEN DK.BLUE,TRIM8# |
1 | ||
| 81250-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 81250-50040E0 |
UCF10..ARL,EUR,GEN OAK,TRIM0# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-5001004 |
UCF10..ARL,EUR,GEN DARK BLUE,TRIM8# |
1 | ||
| 81250-5001003 |
UCF10..ARL,EUR,GEN SHAD0W GRAY,TRIM1# |
1 | ||
| 81250-5001005 |
UCF10..ARL,EUR,GEN GREIGE,TRIM0# |
1 | ||
| 81250-50040B0 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81250-5001006 |
UCF10..ARL,EUR,GEN DARK ROSE,TRIM4# |
1 | ||
| 81250-50040J0 |
UCF10..ARL,EUR,GEN DK.BLUE,TRIM8# |
1 | ||
| 81250-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 81250-50040E0 |
UCF10..ARL,EUR,GEN OAK,TRIM0# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-50010 |
UCF10..ARL,EUR,GEN |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-50010 |
UCF10..ARL,EUR,GEN |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81290-5001006 |
UCF10..ARL,EUR,GEN DARK ROSE,TRIM4# |
1 | ||
| 81290-5001005 |
UCF10..ARL,EUR,GEN GREIGE,TRIM0# |
1 | ||
| 81290-5001003 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81290-5001004 |
UCF10..ARL,EUR,GEN DARK BLUE,TRIM8# |
1 | ||
| 81290-50040J0 |
UCF10..ARL,EUR,GEN DK.BLUE,TRIM8# |
1 | ||
| 81290-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 81290-50040B0 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81290-50040E0 |
UCF10..ARL,EUR,GEN OAK,TRIM0# |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81290-5001006 |
UCF10..ARL,EUR,GEN DARK ROSE,TRIM4# |
1 | ||
| 81290-5001005 |
UCF10..ARL,EUR,GEN GREIGE,TRIM0# |
1 | ||
| 81290-5001003 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81290-5001004 |
UCF10..ARL,EUR,GEN DARK BLUE,TRIM8# |
1 | ||
| 81290-50040J0 |
UCF10..ARL,EUR,GEN DK.BLUE,TRIM8# |
1 | ||
| 81290-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 81290-50040B0 |
UCF10..ARL,EUR,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 81290-50040E0 |
UCF10..ARL,EUR,GEN OAK,TRIM0# |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11020 |
UCF10..ARL,EUR,GEN 12V 3.8W |
1 | ||
| 90981-12020 |
UCF10..ARL,EUR,GEN 12V 8W |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81291-50010 |
UCF10..ARL,EUR,GEN |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81291-50010 |
UCF10..ARL,EUR,GEN |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50010 |
UCF10 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
UCF10 12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
UCF10 |
1 | ||
| Linked diagrams | ||||
| 8715 | ||||
