UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

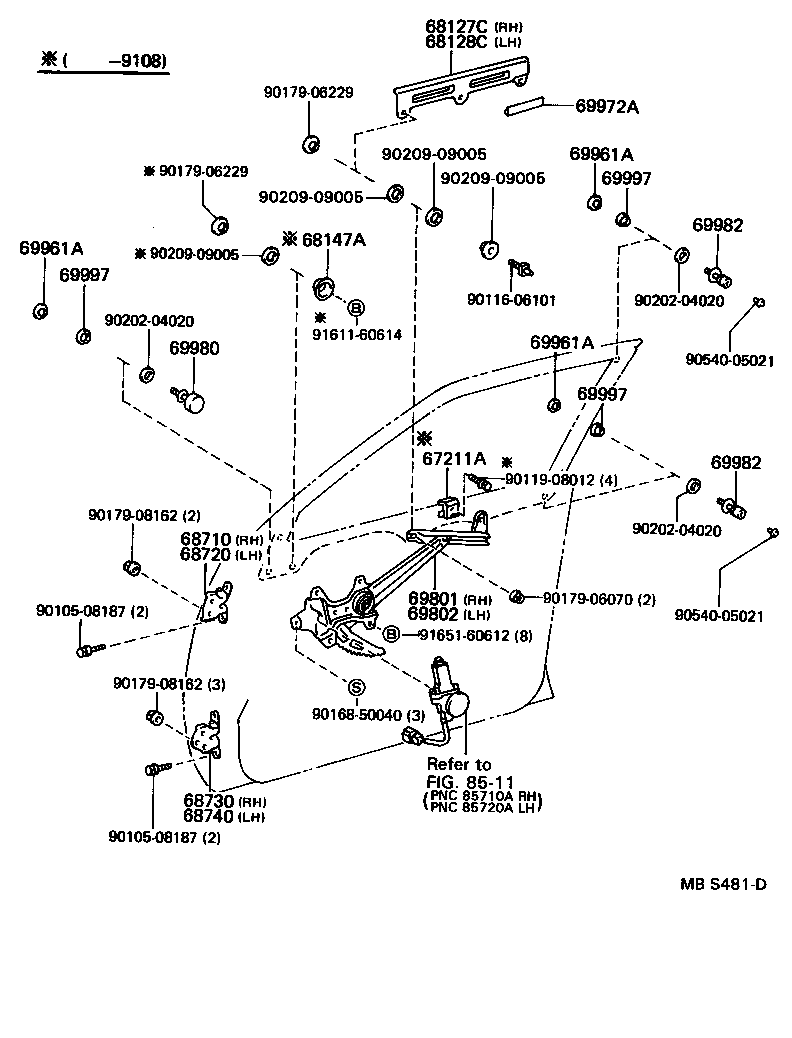

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-22020 |
UCF10 |
4 | ||
| 68127C - PLATE, FRONT DOOR GLASS, REAR RH | ||||
| 68127-50010 |
UCF10 |
1 | ||
| 68128C - PLATE, FRONT DOOR GLASS, REAR LH | ||||
| 68128-50010 |
UCF10 |
1 | ||
| 68147A - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-20020 |
UCF10 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-50010 |
UCF10 |
1 | ||
| 68710-50020 |
UCF10 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-50010 |
UCF10 |
1 | ||
| 68720-50020 |
UCF10 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-50020 |
UCF10 |
1 | ||
| 68730-50010 |
UCF10 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-50020 |
UCF10 |
1 | ||
| 68740-50010 |
UCF10 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-50010 |
UCF10 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-50010 |
UCF10 |
1 | ||
| 69961A - RETAINER, FRONT DOOR GLASS | ||||
| 69961-50020 |
UCF10 |
8 | ||
| 69961A - RETAINER, FRONT DOOR GLASS | ||||
| 69961-50020 |
UCF10 |
8 | ||
| 69961A - RETAINER, FRONT DOOR GLASS | ||||
| 69961-50020 |
UCF10 |
8 | ||
| 69972A - FILLER, FRONT DOOR GLASS BRACKET, INNER FRONT | ||||
| 69972-50010 |
UCF10 |
4 | ||
| 69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE | ||||
| 69980-50010 |
UCF10 |
4 | ||
| 69982 - ROLLER, FRONT DOOR GLASS GUIDE, NO.2 | ||||
| 69982-50020 |
UCF10 |
4 | ||
| 69982 - ROLLER, FRONT DOOR GLASS GUIDE, NO.2 | ||||
| 69982-50020 |
UCF10 |
4 | ||
| 69997 - SPACER, FRONT DOOR GLASS GUIDE | ||||
| 69997-24010 |
UCF10 |
8 | ||
| 69997 - SPACER, FRONT DOOR GLASS GUIDE | ||||
| 69997-24010 |
UCF10 |
8 | ||
| 69997 - SPACER, FRONT DOOR GLASS GUIDE | ||||
| 69997-24010 |
UCF10 |
8 | ||
| Common parts | ||||
| 90105-08187 | ||||
| 90116-06101 | ||||
| 90119-08012 | ||||
| 90168-50040 | ||||
| 90179-06070 | ||||
| 90179-06229 | ||||
| 90179-08162 | ||||
| 90202-04020 | ||||
| 90209-09005 | ||||
| 90540-05021 | ||||
| 91611-60614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8511 | ||||
