UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

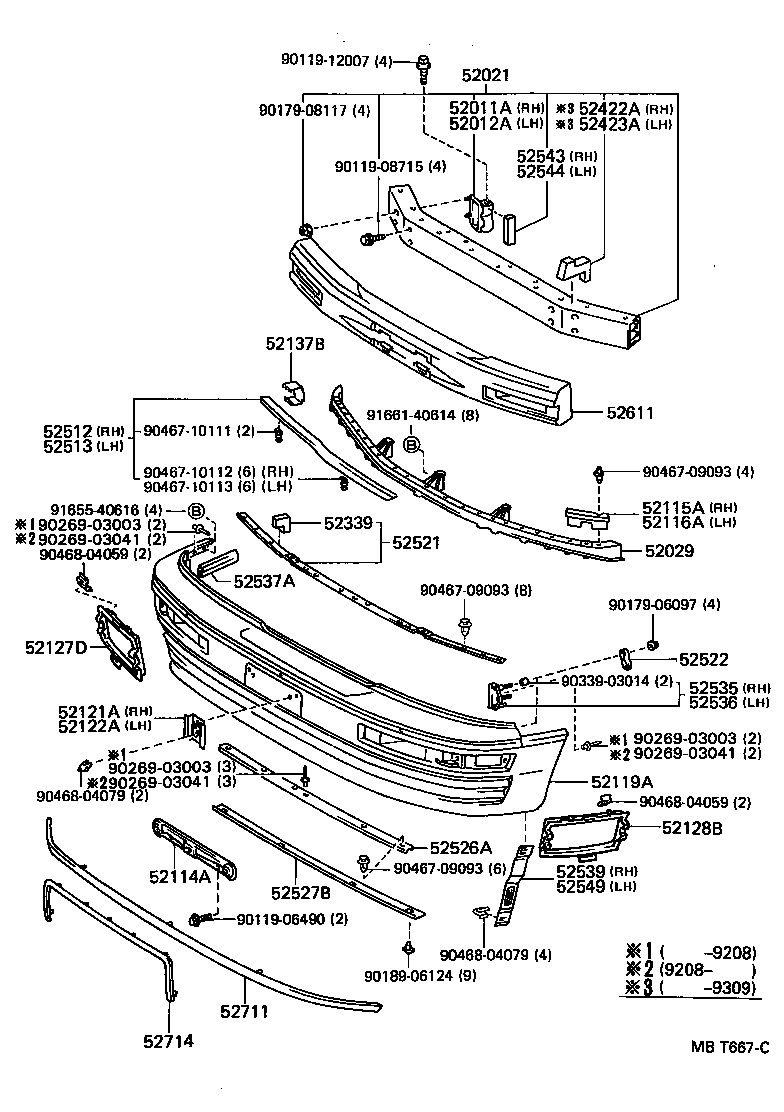

ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-50010 |
UCF10 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-50010 |
UCF10 |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-50011 |
UCF10 |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-50010 |
UCF10 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-14090 |
UCF10..ARL |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-50010 |
UCF10 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-50010 |
UCF10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-50909 |
UCF10..ARL W(HEAD LAMP CLEANER) |
1 | ||
| 52119-50901 |
UCF10..ARL |
1 | ||
| 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH | ||||
| 52121-14090 |
UCF10 |
1 | ||
| 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH | ||||
| 52122-14010 |
UCF10 |
1 | ||
| 52137B - PLATE, FRONT BUMPER BRACKET, NO.1 | ||||
| 52137-50010 |
UCF10 |
2 | ||
| 52339 - SEAL, FRONT BUMPER STEP | ||||
| 52339-50010 |
UCF10 |
2 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52421-50010 |
UCF10 |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52421-50010 |
UCF10 |
1 | ||
| 52512 - FILLER, FRONT BUMPER, RH | ||||
| 52512-50010 |
UCF10 |
1 | ||
| 52513 - FILLER, FRONT BUMPER, LH | ||||
| 52513-50010 |
UCF10 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-50010 |
UCF10 |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-50010 |
UCF10 |
2 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-50011 |
UCF10 |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-50010 |
UCF10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-50010 |
UCF10 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-50010 |
UCF10 |
1 | ||
| 52537A - RETAINER, FRONT BUMPER SIDE, NO.2 | ||||
| 52537-50010 |
UCF10 |
2 | ||
| 52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH | ||||
| 52539-50010 |
UCF10 |
1 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-50010 |
UCF10 |
2 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52543-50010 |
UCF10 |
2 | ||
| 52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH | ||||
| 52549-50010 |
UCF10 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-50010 |
UCF10 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-06490 | ||||
| 90119-08715 | ||||
| 90119-12007 | ||||
| 90179-06097 | ||||
| 90179-08117 | ||||
| 90189-06124 | ||||
| 90269-03003 | ||||
| 90269-03041 | ||||
| 90339-03014 | ||||
| 90467-09093 | ||||
| 90467-10111 | ||||
| 90467-10112 | ||||
| 90467-10113 | ||||
| 90468-04059 | ||||
| 90468-04079 | ||||
| 91655-40616 | ||||
| 91661-40614 | ||||

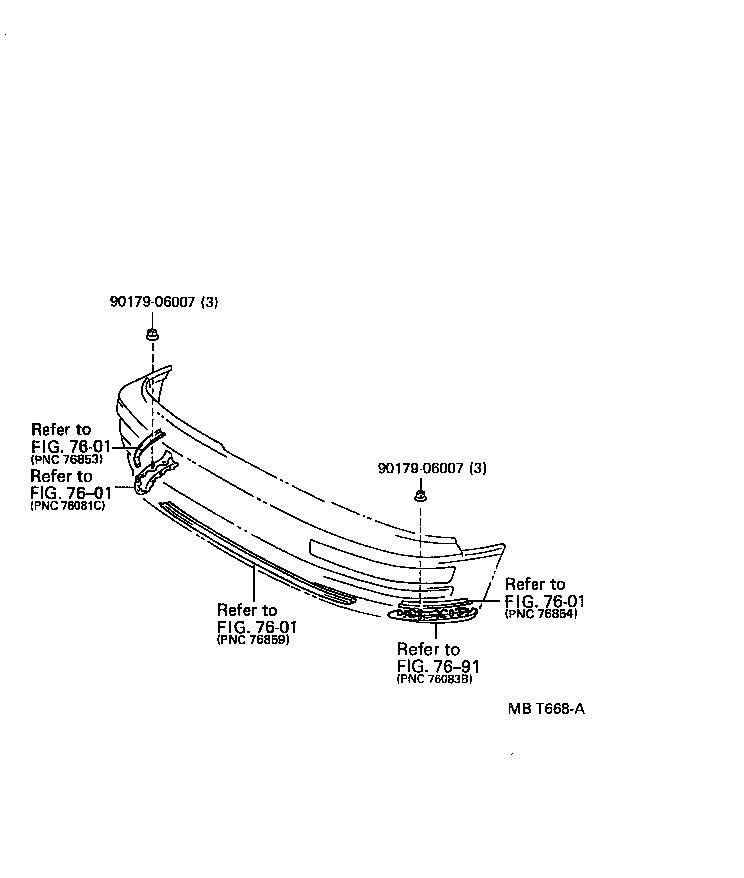

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06007 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 7691 | ||||
