UCF10L-AEPGKW (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

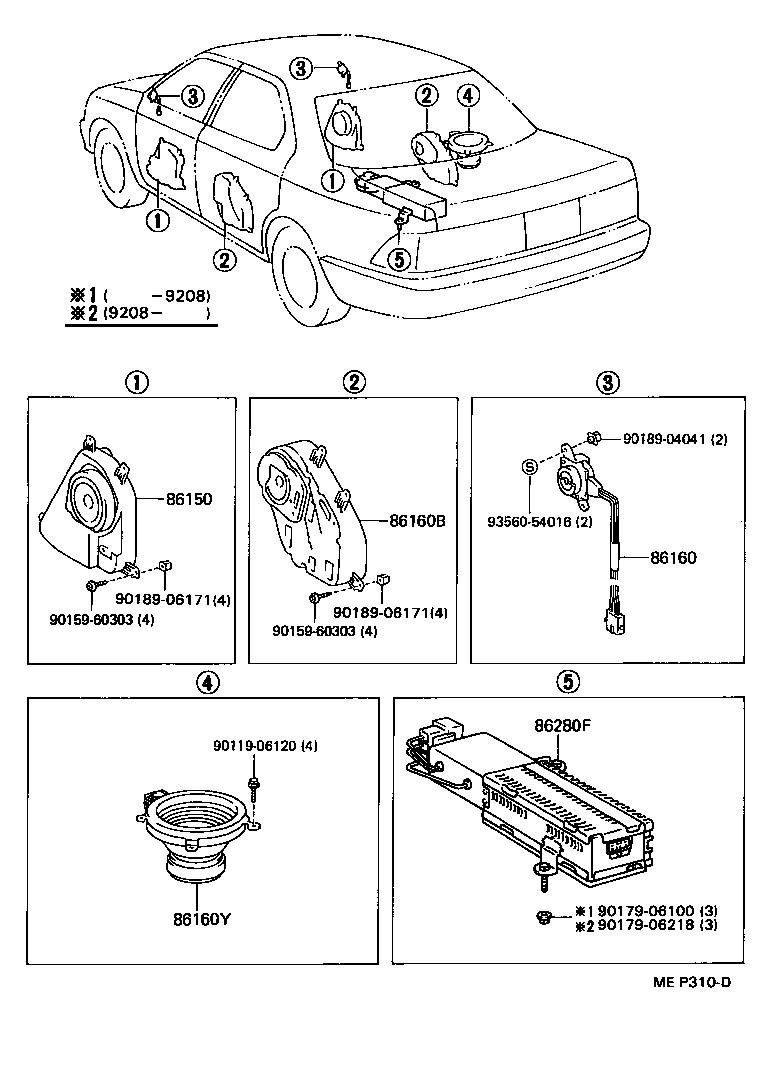

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-50020 |
UCF10 LH,PIONEER |
1 | ||
| 86150-50100 |
UCF10 LH,PIONEER |
1 | ||
| 86150-50010 |
UCF10 RH,PIONEER |
1 | ||
| 86150-50090 |
UCF10 RH,PIONEER |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-50030 |
UCF10 RH,PIONEER |
1 | ||
| 86160-50080 |
UCF10 RH,PIONEER |
1 | ||
| 86160-50040 |
UCF10 LH,PIONEER |
1 | ||
| 86160-50090 |
UCF10 LH,PIONEER |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86150-50060 |
UCF10 LH,PIONEER |
1 | ||
| 86150-50110 |
UCF10 RH,PIONEER |
1 | ||
| 86150-50050 |
UCF10 RH,PIONEER |
1 | ||
| 86150-50120 |
UCF10 LH,PIONEER |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-50010 |
UCF10 PIONEER |
1 | ||
| 86160-50070 |
UCF10 PIONEER |
1 | ||
| 86280F - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-50010 |
UCF10..ARL,EUR,GEN PIONEER |
1 | ||
| 86280-50010 |
UCF10..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90159-60303 | ||||
| 90179-06100 | ||||
| 90179-06218 | ||||
| 90189-04041 | ||||
| 90189-06171 | ||||
| 93560-54016 | ||||
