Toyota Lexus ls400 UCF10 RADIO RECEIVER & AMPLIFIER & CONDENSER

UCF10L-AEPGKW (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

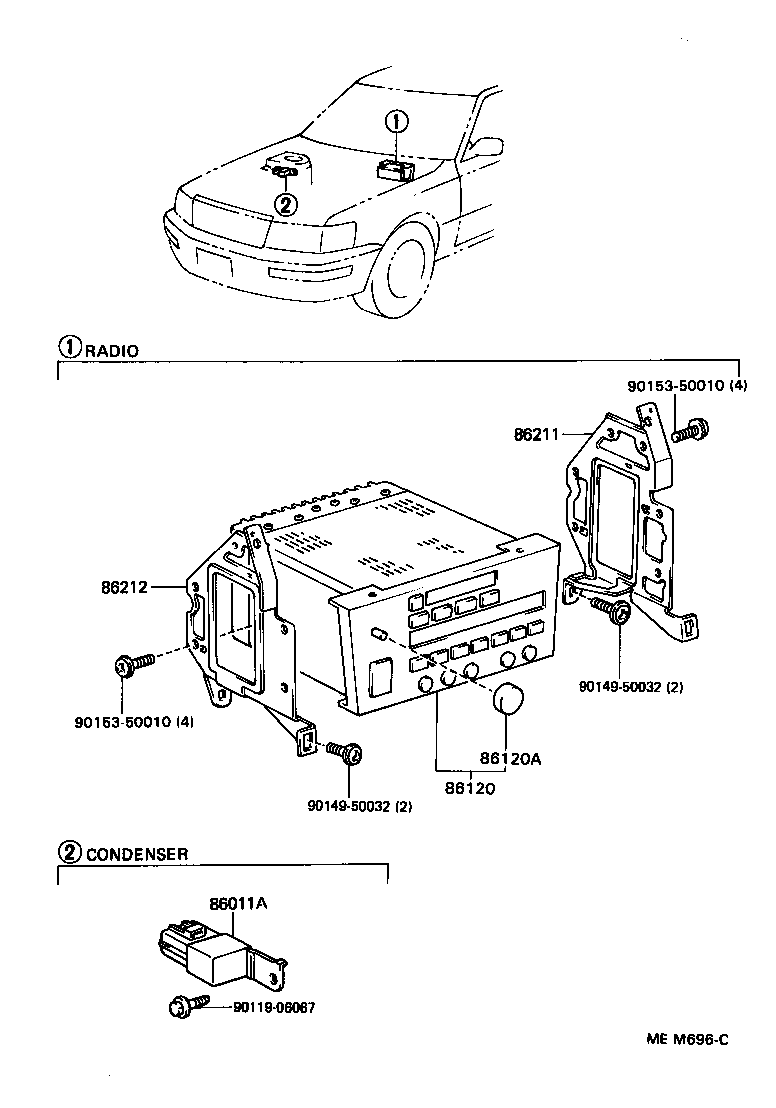

RADIO & CONDENSOR

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04077	UCF10 E/G ROOM	12/1989 - 10/1994	1
86120 - RECEIVER ASSY, RADIO
86120-50101	UCF10..LHD..EUR W(DISC PLAYER)	12/1990 - 08/1992	1
86120-50090	UCF10..LHD..EUR	12/1989 - 07/1991	1
86120-50100	UCF10..LHD..EUR PIONEER,W(DISC PLAYER)	12/1989 - 12/1990	1
86120-50092	UCF10..LHD..EUR	08/1992 - 02/1993	1
86120-50102	UCF10..LHD..EUR W(DISC PLAYER)	08/1992 - 02/1993	1
86120-50091	UCF10..LHD..EUR	07/1991 - 08/1992	1
86120-50300	UCF10..LHD..EUR	02/1993 - 10/1994	1
86120-50310	UCF10..LHD..EUR W(DISC PLAYER)	02/1993 - 10/1994	1
86120A - KNOB, RADIO RECEIVER SWITCH
86127-50030	UCF10..LHD..EUR	12/1989 - 10/1994	1
86211 - BRACKET, RADIO, NO.1
86211-50020	UCF10	08/1992 - 10/1994	1
86211-50010	UCF10	12/1989 - 08/1992	1
86212 - BRACKET, RADIO, NO.2
86212-50010	UCF10	12/1989 - 08/1992	1
86212-50020	UCF10	08/1992 - 10/1994	1
Common parts
90119-06067
90149-50032
90153-50010

Click highlighted areas on diagram

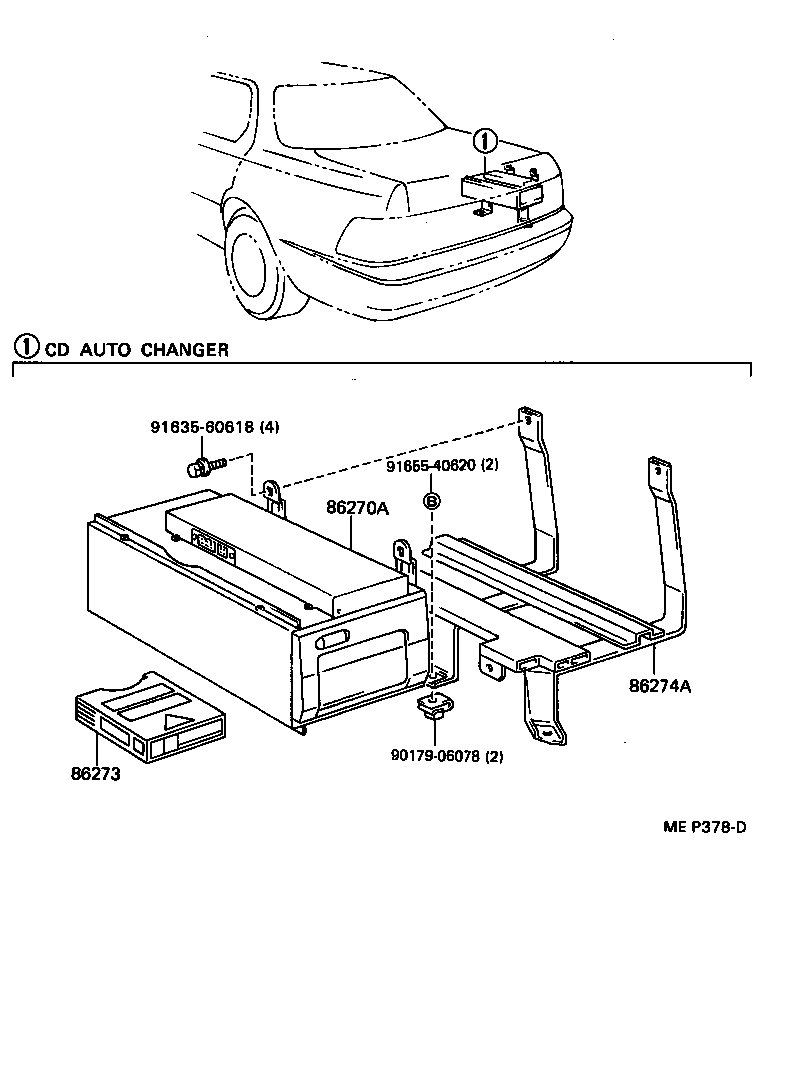

CD AUTO CHANGER

Click highlighted areas on diagram

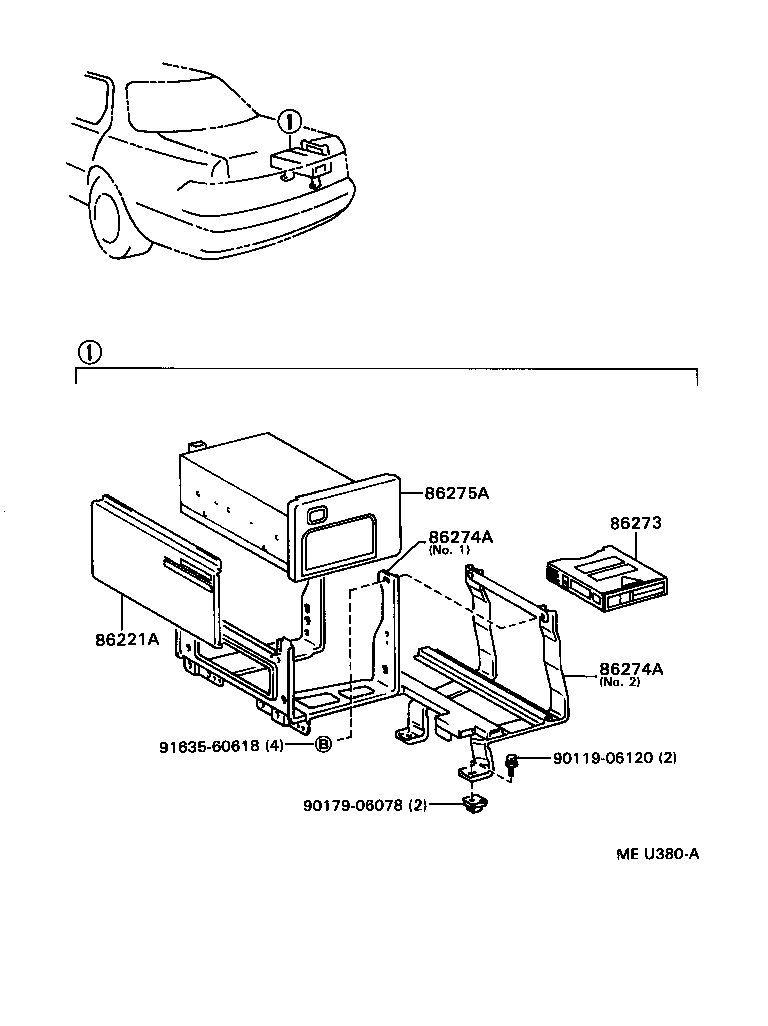

CD AUTO CHANGER & SPEAKER AMP

Part #	Description	Period	Qty
86221A - PANEL, RADIO RECEIVER
86221-50020	UCF10	08/1992 - 10/1994	1
86273 - MAGAZINE, DISC PLAYER
86273-50010	UCF10	12/1989 - 10/1994	1
86274A - BRACKET, DISC PLAYER
86274-50030	UCF10 NO.1	08/1992 - 10/1994	1
86274-50050	UCF10 NO.2	08/1992 - 10/1994	1
86274-50010	UCF10	12/1989 - 08/1992	1
86274A - BRACKET, DISC PLAYER
86274-50030	UCF10 NO.1	08/1992 - 10/1994	1
86274-50050	UCF10 NO.2	08/1992 - 10/1994	1
86274-50010	UCF10	12/1989 - 08/1992	1
86275A - CHANGER, DISC PLAYER
86275-50060	UCF10	08/1992 - 10/1994	1
Common parts
90119-06120
90179-06078
91635-60618
