UCF10L-AEPGKW (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

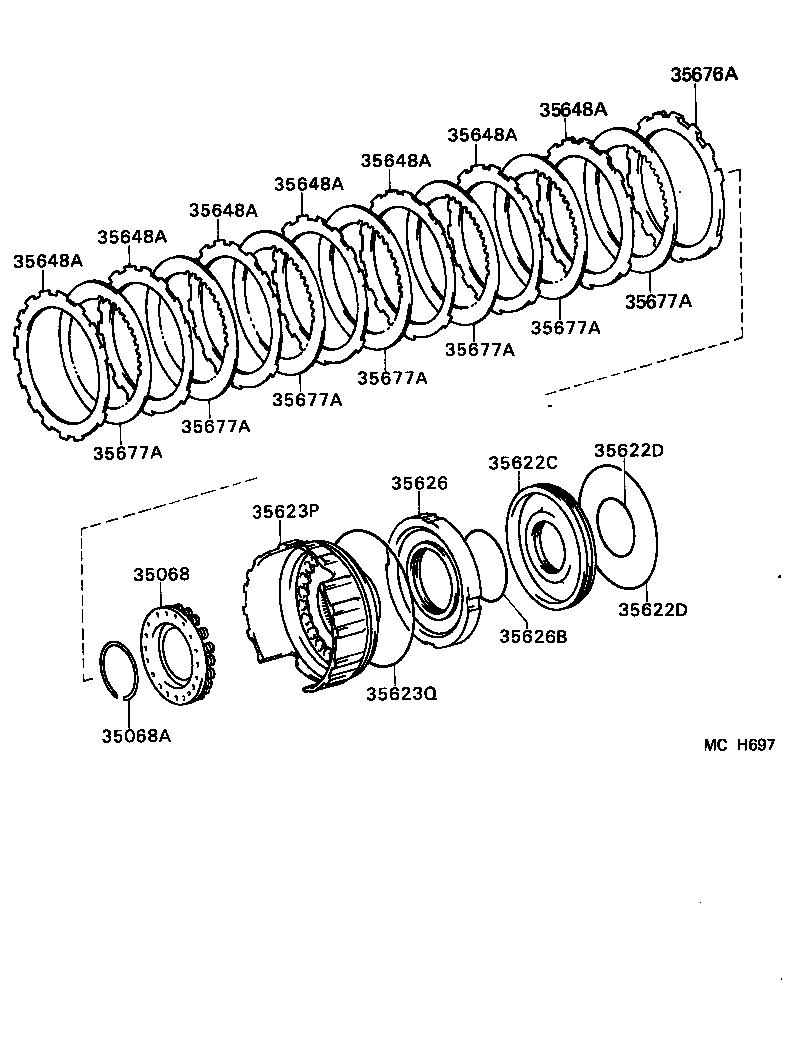

Click highlighted areas on diagram
A341E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-50010 |
UCF10 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
UCF10 |
1 | ||
| 35622C - PISTON, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35622-30010 |
UCF10 |
1 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-99193 |
UCF10 OUTER |
1 | ||
| 90301-57188 |
UCF10 INNER |
1 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-99193 |
UCF10 OUTER |
1 | ||
| 90301-57188 |
UCF10 INNER |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-50010 |
UCF10 |
1 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99192 |
UCF10 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
UCF10 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
UCF10 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UCF10 |
7 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-50040 |
UCF10 T=4.4 |
1 | ||
| 35676-50060 |
UCF10 T=4.0 |
1 | ||
| 35676-50030 |
UCF10 T=4.6 |
1 | ||
| 35676-50010 |
UCF10 T=5.0 |
1 | ||
| 35676-50020 |
UCF10 T=4.8 |
1 | ||
| 35676-50050 |
UCF10 T=4.2 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
UCF10 |
7 | ||
| 35677-30130 |
UCF10 |
7 | ||
