UCF10L-AEPGKV (1989)
Toyota Lexus Ls400

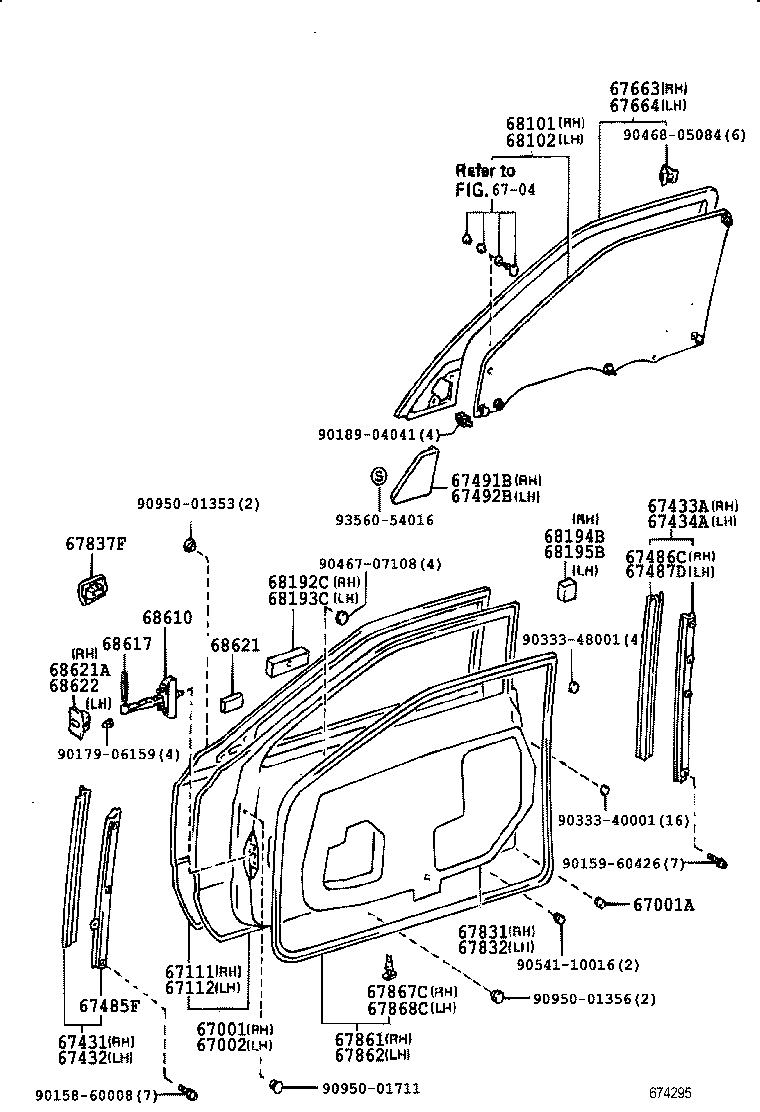

ILLUST NO. 1 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-50011 |
UCF10 |
1 | ||
| 67001-50011 |
UCF10..ARL,V |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-13007 |
UCF10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-50011 |
UCF10 |
1 | ||
| 67002-50011 |
UCF10..ARL,V |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-50011 |
UCF10 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-50011 |
UCF10 |
1 | ||
| 67431 - GUIDE, FRONT DOOR WINDOW, FRONT RH | ||||
| 67431-50010 |
UCF10 |
1 | ||
| 67432 - GUIDE, FRONT DOOR WINDOW, FRONT LH | ||||
| 67432-50010 |
UCF10 |
1 | ||
| 67433A - GUIDE, FRONT DOOR WINDOW, REAR RH | ||||
| 67433-50010 |
UCF10 |
1 | ||
| 67433-50011 |
UCF10 |
1 | ||
| 67434A - GUIDE, FRONT DOOR WINDOW, REAR LH | ||||
| 67434-50010 |
UCF10 |
1 | ||
| 67434-50011 |
UCF10 |
1 | ||
| 67485F - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.1 | ||||
| 67485-50020 |
UCF10 LH |
1 | ||
| 67485-50010 |
UCF10 RH |
1 | ||
| 67486C - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.2 | ||||
| 67486-50010 |
UCF10 |
1 | ||
| 67486-50011 |
UCF10 |
1 | ||
| 67487D - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.3 | ||||
| 67487-50011 |
UCF10 |
1 | ||
| 67487-50010 |
UCF10 |
1 | ||
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67491-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 67491-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 67491-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 67491-50010J0 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 67491-50010B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67491-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 67491-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 67491-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67492-50010B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67492-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 67492-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67492-50010J0 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 67492-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 67492-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 67492-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 67492-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67663-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 67663-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 67663-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 67663-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67663-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67663-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 67663-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 67663-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 67664-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 67664-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67664-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 67664-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 67664-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67664-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 67664-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 67664-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-50010 |
UCF10 |
1 | ||
| 67801-50011 |
UCF10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-50010 |
UCF10 |
1 | ||
| 67802-50011 |
UCF10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-50011 |
UCF10 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-50011 |
UCF10 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-50010 |
UCF10 |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-50010 |
UCF10 |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-50010 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68101-50011 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68101-50030 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68101-50020 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68101-50022 |
UCF10 *TT,T=5.0,BLUE |
1 | ||
| 68101-50020 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68101-50010 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68101-50030 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68101-50012 |
UCF10 *TT,T=5.0=BRONZE |
1 | ||
| 68101-50031 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68101-50032 |
UCF10 *TT,T=5.0,GRAY |
1 | ||
| 68101-50021 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-50010 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68102-50011 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68102-50030 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68102-50010 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68102-50021 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68102-50030 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68102-50032 |
UCF10 *TT,T=5.0,GRAY |
1 | ||
| 68102-50031 |
UCF10..EUR,GEN,V *TT,T=5.0,GRAY |
1 | ||
| 68102-50020 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68102-50020 |
UCF10..EUR,GEN,V *TT,T=5.0,BLUE |
1 | ||
| 68102-50022 |
UCF10 *TT,T=5.0,BLUE |
1 | ||
| 68102-50012 |
UCF10 *TT,T=5.0,BRONZE |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-50010 |
UCF10 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68192-50010 |
UCF10 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-50010 |
UCF10 |
2 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-50010 |
UCF10 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-50010 |
UCF10 RH |
1 | ||
| 68620-50011 |
UCF10 LH |
1 | ||
| 68610-50011 |
UCF10 RH |
1 | ||
| 68620-50010 |
UCF10 LH |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
UCF10 |
2 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-50010 |
UCF10 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-50010 |
UCF10 |
1 | ||

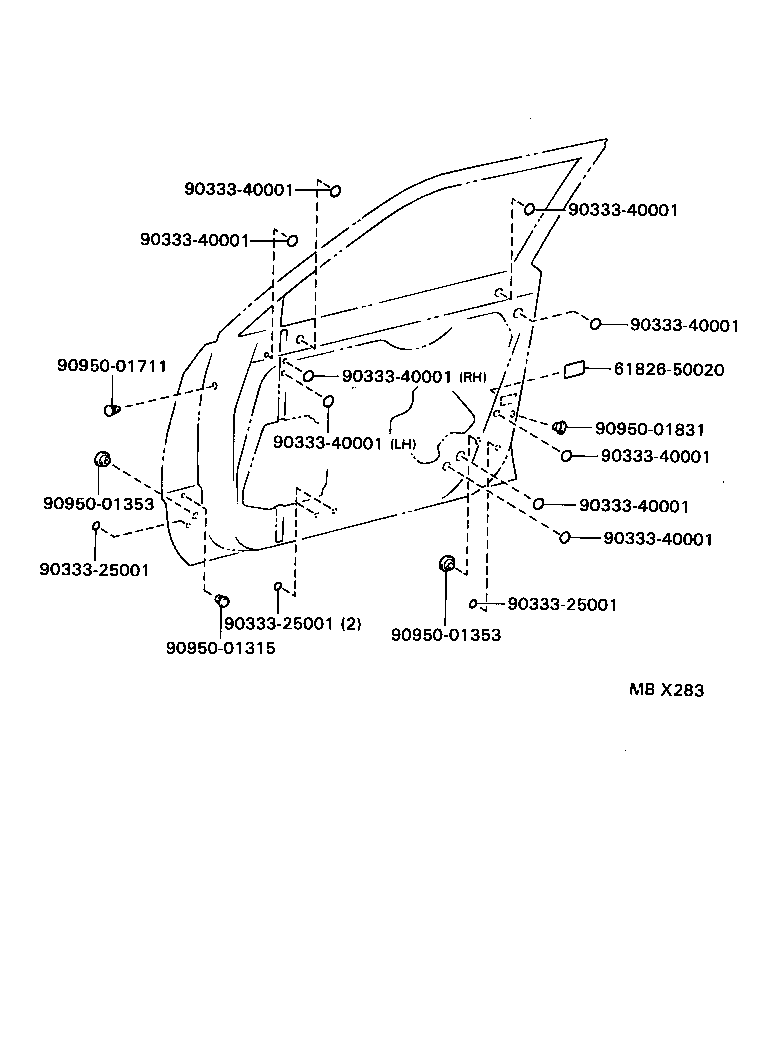

| Common parts | ||||
| 90158-60008 | ||||
| 90159-60426 | ||||
| 90179-06159 | ||||
| 90189-04041 | ||||
| 90333-40001 | ||||
| 90333-48001 | ||||
| 90467-07108 | ||||
| 90468-05084 | ||||
| 90541-10016 | ||||
| 90950-01353 | ||||
| 90950-01356 | ||||
| 90950-01711 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 6704 | ||||

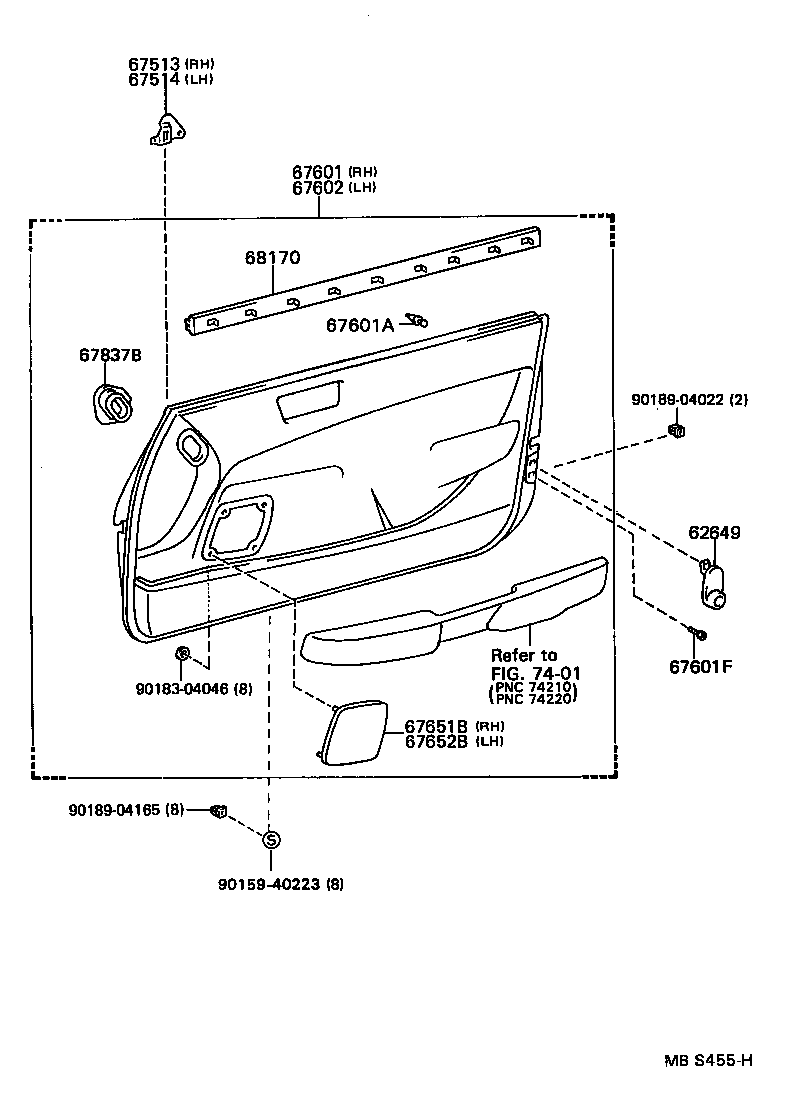

ILLUST NO. 3 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62649 - BRACKET, SIDE TRIM | ||||
| 67649-5001002 |
UCF10..V DEEP RED,TRIM3# |
2 | ||
| 67649-5001006 |
UCF10 ROSE,TRIM4# |
2 | ||
| 67649-50010B0 |
UCF10 SLATE GRAY,TRIM1# |
2 | ||
| 67649-5001008 |
UCF10 IVORY,TRIM0# |
2 | ||
| 67649-5001003 |
UCF10 GRAY,TRIM1# |
2 | ||
| 67649-50010J0 |
UCF10 EISEN BLUE,TRIM8# |
2 | ||
| 67649-50010A0 |
UCF10 IVORY,TRIM0# |
2 | ||
| 67649-50010K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
2 | ||
| 67649-5001004 |
UCF10 BLUE,TRIM8# |
2 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-50010 |
UCF10 |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-50010 |
UCF10 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-5002002 |
UCF10..V W(LEATHER SEAT),DEEP RED,TRIM3# |
1 | ||
| 67610-5001003 |
UCF10..V SHADOW GRAY,TRIM1# |
1 | ||
| 67610-5001004 |
UCF10..V DARK BLUE,TRIM8# |
1 | ||
| 67610-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67610-5002003 |
UCF10..V W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-5002004 |
UCF10..V W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67610-5002006 |
UCF10..V W(LEATHER SEAT),DARK ROSE,TRIM4# |
1 | ||
| 67610-5001006 |
UCF10..V DARK ROSE,TRIM4# |
1 | ||
| 67610-5002005 |
UCF10..V W(LEATHER SEAT),GREIGE,TRIM0# |
1 | ||
| 67610-50010J0 |
UCF10..V DK. BLUE,TRIM8# |
1 | ||
| 67610-50010B0 |
UCF10..V SHADOW GRAY,TRIM1# |
1 | ||
| 67610-50020A0 |
UCF10..V W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-50020J0 |
UCF10..V W(LEATHER SEAT),DK. BLUE,TRIM8# |
1 | ||
| 67610-50020B0 |
UCF10..V W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-50010J0 |
UCF10..LHD DK. BLUE,TRIM8# |
1 | ||
| 67610-50010B0 |
UCF10..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67610-50020B0 |
UCF10..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-50020A0 |
UCF10..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-50020K0 |
UCF10..V W(LEATHER SEAT),TAUPE,TRIM9# |
1 | ||
| 67610-50020J0 |
UCF10..LHD W(LEATHER SEAT),DK. BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
UCF10 RED |
2 | ||
| 67771-14040 |
UCF10..V GRAY |
12 | ||
| 67771-12050 |
UCF10 RED |
6 | ||
| 67771-32060 |
UCF10 BROWN |
6 | ||
| 67601F - SCREW(FOR FRONT DOOR TRIM BOARD) | ||||
| 90161-40018A0 |
UCF10 IVORY,TRIM0# |
2 | ||
| 90161-4001802 |
UCF10..V DEEP RED,TRIM3# |
2 | ||
| 90161-40018J0 |
UCF10 EISEN BLUE,TRIM8# |
2 | ||
| 90161-4001803 |
UCF10 GRAY,TRIM1# |
2 | ||
| 90161-4001806 |
UCF10 ROSE,TRIM4# |
2 | ||
| 90161-40018K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
2 | ||
| 90161-40018B0 |
UCF10 SLATE GRAY,TRIM1# |
2 | ||
| 90161-4001808 |
UCF10 IVORY,TRIM0# |
2 | ||
| 90161-4001804 |
UCF10 BLUE,TRIM8# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5001003 |
UCF10..V SHADOW GRAY,TRIM1# |
1 | ||
| 67620-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67620-5001006 |
UCF10..V DARK ROSE,TRIM4# |
1 | ||
| 67620-5002003 |
UCF10..V W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-5002005 |
UCF10..V W(LEATHER SEAT),GREIGE,TRIM0# |
1 | ||
| 67620-5001004 |
UCF10..V DARK BLUE,TRIM8# |
1 | ||
| 67620-5002006 |
UCF10..V W(LEATHER SEAT),DARK ROSE,TRIM4# |
1 | ||
| 67620-5002002 |
UCF10..V W(LEATHER SEAT),DEEP RED,TRIM3# |
1 | ||
| 67620-5002004 |
UCF10..V W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-50010J0 |
UCF10..V DK. BLUE,TRIM8# |
1 | ||
| 67620-50020A0 |
UCF10..V W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-50020B0 |
UCF10..V W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-50020J0 |
UCF10..V W(LEATHER SEAT),DK. BLUE,TRIM8# |
1 | ||
| 67620-50010B0 |
UCF10..V SHADOW GRAY,TRIM1# |
1 | ||
| 67620-50020A0 |
UCF10..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-50010B0 |
UCF10..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-50020J0 |
UCF10..LHD W(LEATHER SEAT),DK. BLUE,TRIM8# |
1 | ||
| 67620-50020K0 |
UCF10..V W(LEATHER SEAT),TAUPE,TRIM9# |
1 | ||
| 67620-50020B0 |
UCF10..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-50010J0 |
UCF10..LHD DK. BLUE,TRIM8# |
1 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67609-5001004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 67609-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67609-5001006 |
UCF10 ROSE,TRIM4# |
1 | ||
| 67609-5001008 |
UCF10 IVORY,TRIM0# |
1 | ||
| 67609-5001003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 67609-50010A0 |
UCF10 IVORY,TRIM0# |
1 | ||
| 67609-50010J0 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 67609-50010B0 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 67609-50010K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67709-5001004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 67709-5001006 |
UCF10 ROSE,TRIM4# |
1 | ||
| 67709-5001002 |
UCF10..V DEEP RED,TRIM3# |
1 | ||
| 67709-50010J0 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 67709-5001008 |
UCF10 IVORY,TRIM0# |
1 | ||
| 67709-5001003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 67709-50010K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
1 | ||
| 67709-50010A0 |
UCF10 IVORY,TRIM0# |
1 | ||
| 67709-50010B0 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-50010 |
UCF10 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-50010 |
UCF10 RH |
1 | ||
| 68220-50010 |
UCF10 LH |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90183-04046 | ||||
| 90189-04022 | ||||
| 90189-04165 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 2 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61826-50020 | ||||
| 90333-25001 | ||||
| 90333-40001 | ||||
| 90950-01315 | ||||
| 90950-01353 | ||||
| 90950-01711 | ||||
| 90950-01831 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
