UCF10L-AEPGKV (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

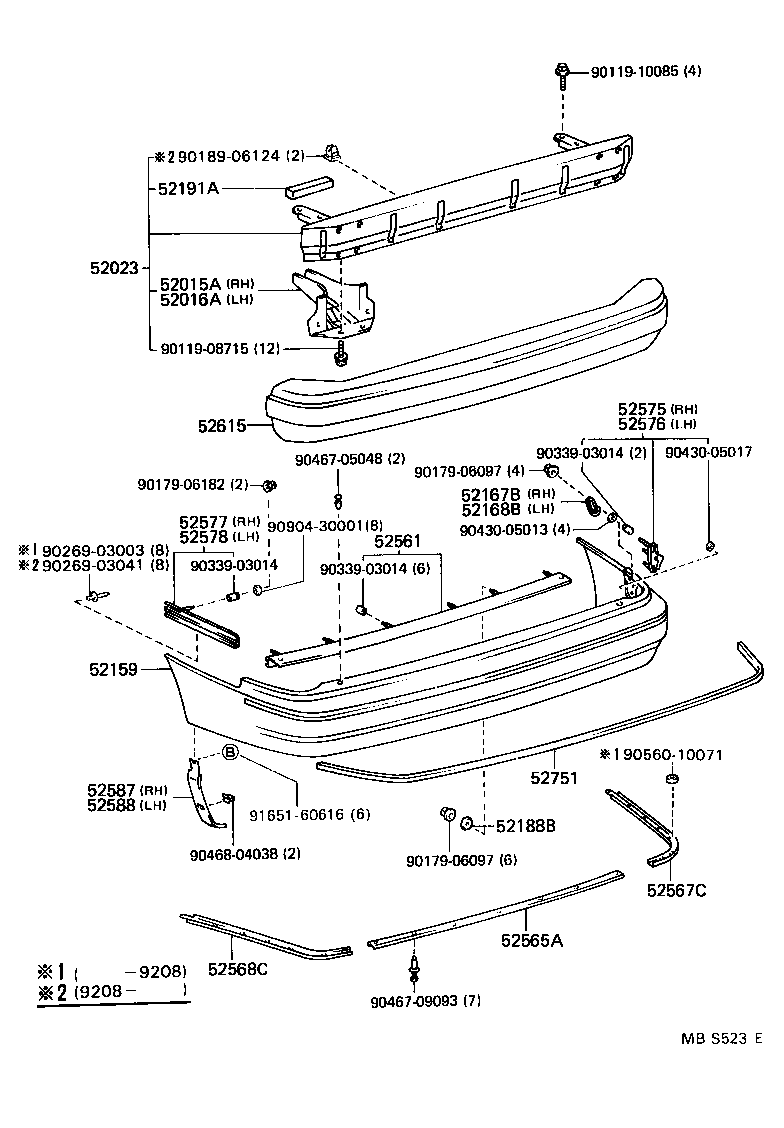

ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-50010 |
UCF10 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52015-50010 |
UCF10 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-50010 |
UCF10 |
1 | ||
| 52023-50020 |
UCF10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-50900 |
UCF10 |
1 | ||
| 52159-50902 |
UCF10 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-50010 |
UCF10 |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-50010 |
UCF10 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-50010 |
UCF10 |
6 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-50010 |
UCF10 |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-50010 |
UCF10 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-50010 |
UCF10 |
1 | ||
| 52567C - RETAINER, REAR BUMPER LOWER SIDE, RH | ||||
| 52567-50020 |
UCF10 |
1 | ||
| 52567-50010 |
UCF10 |
1 | ||
| 52568C - RETAINER, REAR BUMPER LOWER SIDE, LH | ||||
| 52568-50020 |
UCF10 |
1 | ||
| 52568-50010 |
UCF10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-50010 |
UCF10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-50010 |
UCF10 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-50010 |
UCF10 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-50010 |
UCF10 |
1 | ||
| 52587 - RETAINER, REAR BUMPER END, RH | ||||
| 52587-50020 |
UCF10 |
1 | ||
| 52587-50010 |
UCF10 |
1 | ||
| 52588 - RETAINER, REAR BUMPER END, LH | ||||
| 52587-50020 |
UCF10 |
1 | ||
| 52587-50010 |
UCF10 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-50010 |
UCF10 |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-08715 | ||||
| 90119-10085 | ||||
| 90179-06097 | ||||
| 90179-06182 | ||||
| 90189-06124 | ||||
| 90269-03003 | ||||
| 90269-03041 | ||||
| 90339-03014 | ||||
| 90430-05017 | ||||
| 90467-05048 | ||||
| 90467-09093 | ||||
| 90468-04038 | ||||
| 90560-10071 | ||||
| 90904-30001 | ||||
| 91651-60616 | ||||

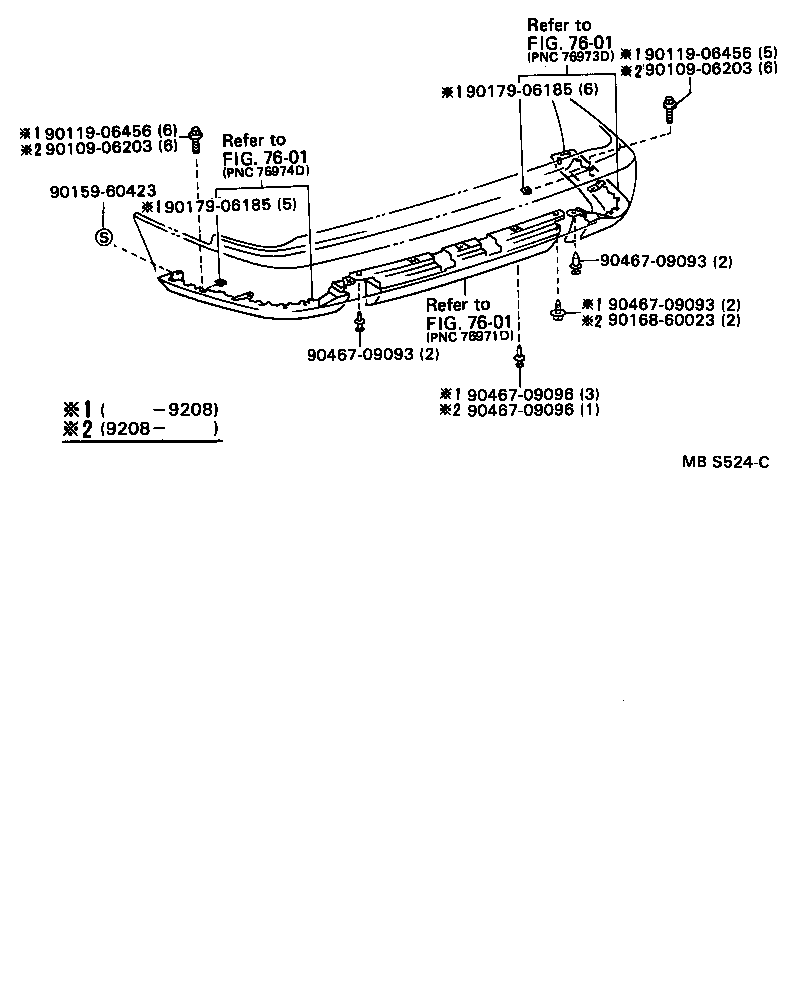

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06203 | ||||
| 90119-06456 | ||||
| 90159-60423 | ||||
| 90168-60023 | ||||
| 90179-06185 | ||||
| 90467-09093 | ||||
| 90467-09096 | ||||
| Linked diagrams | ||||
| 7601 | ||||
