Toyota Lexus ls400 UCF10 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59425	1UZFE..UCF10	12/1989 - 07/1994	1
11401-59426	1UZFE..UCF10	07/1994 - 10/1994	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09096	1UZFE..UCF10..EUR,GEN,V LH	12/1989 - 10/1994	1
90910-09095	1UZFE..UCF10..EUR,GEN,V RH	12/1989 - 10/1994	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1UZFE..UCF10..EUR,GEN,V RH	01/1993 - 10/1994	1
96432-23814	1UZFE..UCF10	12/1989 - 05/1992	2
90910-09087	1UZFE..UCF10..EUR,GEN,V	05/1992 - 01/1993	1
96432-23814	1UZFE..UCF10..EUR,GEN,V LH	01/1993 - 10/1994	1
11421 - BOLT, STUD(FOR OIL PAN)
90116-08299	1UZFE..UCF10 NO.3	12/1989 - 08/1992	2
90116-06098	1UZFE..UCF10 NO.1	12/1989 - 10/1994	4
90116-06110	1UZFE..UCF10 NO.2	12/1989 - 10/1994	1
90116-08299	1UZFE..UCF10..EUR,GEN,V	08/1992 - 10/1994	2
11421 - BOLT, STUD(FOR OIL PAN)
90116-08299	1UZFE..UCF10 NO.3	12/1989 - 08/1992	2
90116-06098	1UZFE..UCF10 NO.1	12/1989 - 10/1994	4
90116-06110	1UZFE..UCF10 NO.2	12/1989 - 10/1994	1
90116-08299	1UZFE..UCF10..EUR,GEN,V	08/1992 - 10/1994	2
11421 - BOLT, STUD(FOR OIL PAN)
90116-08299	1UZFE..UCF10 NO.3	12/1989 - 08/1992	2
90116-06098	1UZFE..UCF10 NO.1	12/1989 - 10/1994	4
90116-06110	1UZFE..UCF10 NO.2	12/1989 - 10/1994	1
90116-08299	1UZFE..UCF10..EUR,GEN,V	08/1992 - 10/1994	2
11421 - BOLT, STUD(FOR OIL PAN)
90116-08299	1UZFE..UCF10 NO.3	12/1989 - 08/1992	2
90116-06098	1UZFE..UCF10 NO.1	12/1989 - 10/1994	4
90116-06110	1UZFE..UCF10 NO.2	12/1989 - 10/1994	1
90116-08299	1UZFE..UCF10..EUR,GEN,V	08/1992 - 10/1994	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	1UZFE..UCF10 L=22,OD=10	12/1989 - 10/1994	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-16001	1UZFE..UCF10 L=20,OD=16	12/1989 - 10/1994	4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1UZFE..UCF10 L=14,OD=6	12/1989 - 10/1994	2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021	1UZFE..UCF10..EUR,GEN,V	12/1989 - 08/1992	4
90253-11021	1UZFE..UCF10	08/1992 - 10/1994	2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021	1UZFE..UCF10..EUR,GEN,V	12/1989 - 08/1992	4
90253-11021	1UZFE..UCF10	08/1992 - 10/1994	2
11452 - GUIDE, OIL LEVEL GAGE
11452-50020	1UZFE..UCF10	12/1989 - 10/1994	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96711-19010	1UZFE..UCF10	12/1989 - 10/1994	1
11492C - PLATE, WATER SEAL
11492-50010	1UZFE..UCF10	12/1989 - 10/1994	1
11581 - BOLT, CRANKSHAFT BEARING CAP, NO.1
11581-50011	1UZFE..UCF10	07/1994 - 10/1994	10
11581-50010	1UZFE..UCF10	12/1989 - 07/1992	10
11581-50010	1UZFE..UCF10	08/1992 - 07/1994	10
11582 - BOLT, CRANKSHAFT BEARING CAP, NO.2
11582-50010	1UZFE..UCF10	08/1992 - 07/1994	10
11582-50010	1UZFE..UCF10	12/1989 - 07/1992	10
11582-50011	1UZFE..UCF10	07/1994 - 10/1994	10
12101 - PAN SUB-ASSY, OIL
12111-50020	1UZFE..UCF10	12/1989 - 10/1994	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12023	1UZFE..UCF10	12/1989 - 10/1994	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12020	1UZFE..UCF10	12/1989 - 12/1993	1
90430-12031	1UZFE..UCF10	09/1994 - 10/1994	1
90430-12028	1UZFE..UCF10	12/1993 - 10/1994	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-50010	1UZFE..UCF10	12/1989 - 10/1994	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-50070	1UZFE..UCF10	10/1993 - 10/1994	1
12121-50020	1UZFE..UCF10	12/1989 - 10/1993	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-50021	1UZFE..UCF10	08/1992 - 10/1994	1
15301-50020	1UZFE..UCF10	12/1989 - 07/1992	1
Common parts
90105-10245
90116-08157
90116-08208
90116-08300
90116-10152
90119-06487
90119-06527
90119-06528
90179-06193
90179-06307
90179-08153
90179-10139
90210-11002
91621-60612
91621-J0814
91642-K0855

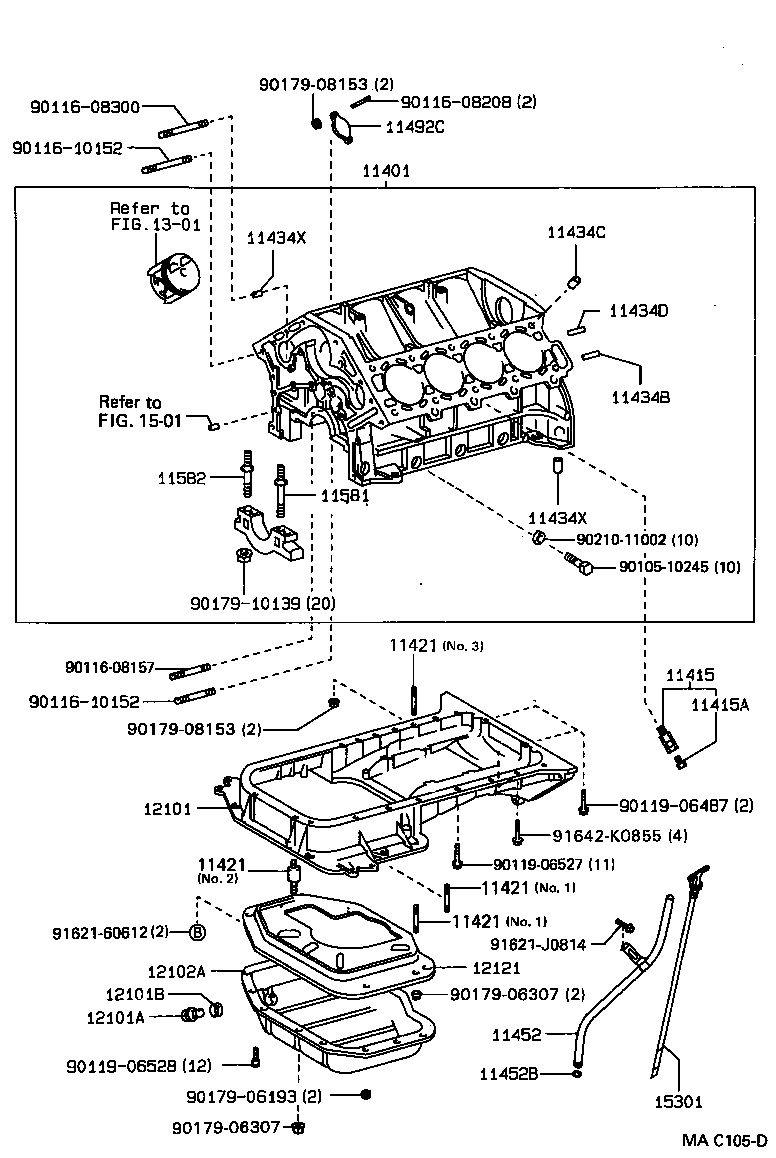

Linked diagrams
1301
1501

UCF10L-AEPGKV (1989)

(8912- )
