GGH31R-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

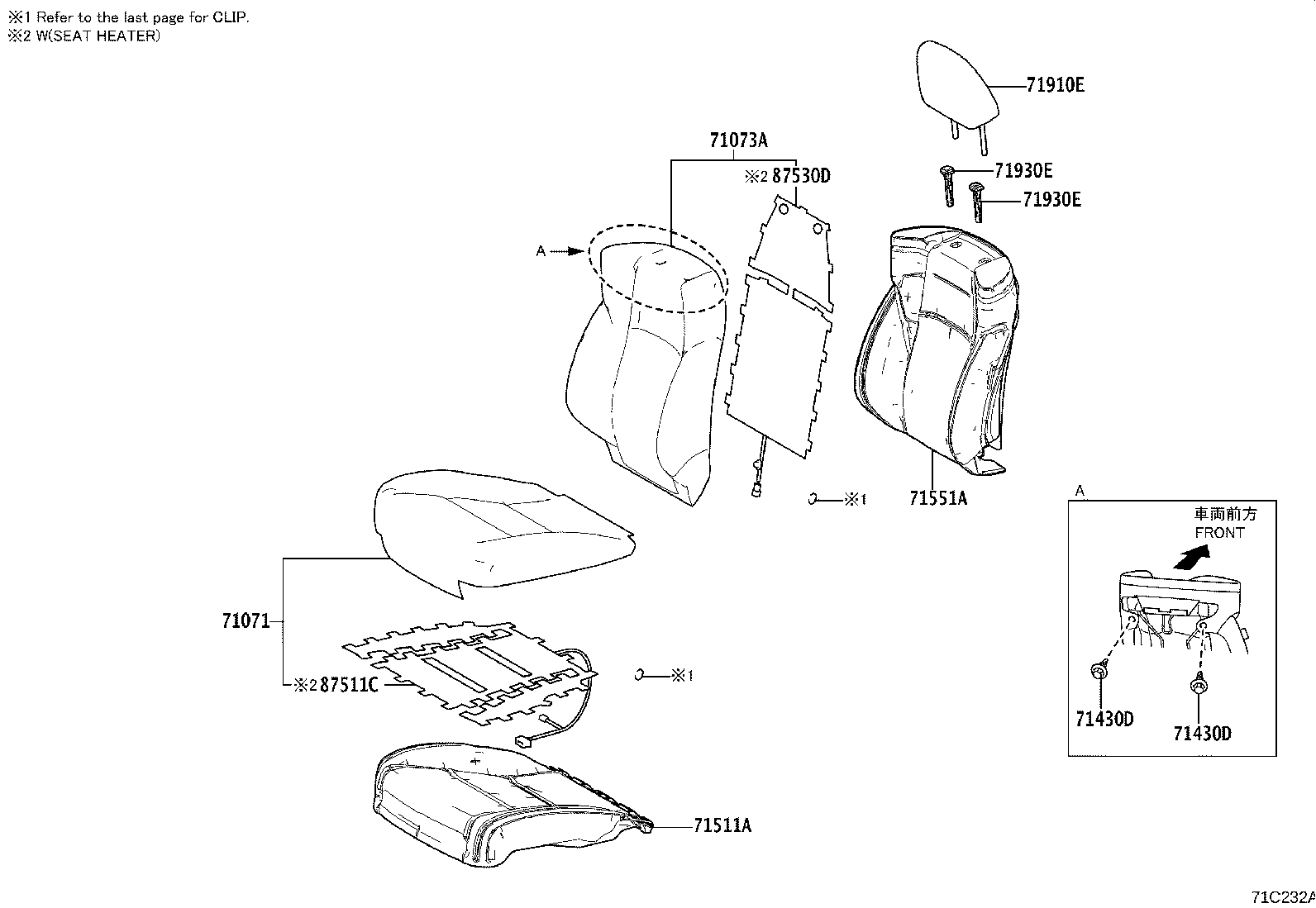

ILLUST NO. 2 OF 5(2001- )RHD..V
DRIVER SIDE(COVER,PAD&HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58530A3 |
AYH36,GGH31..RHD..V WHITE,TRIM0# |
1 | ||
| 71071-58530C2 |
AYH36,GGH31..RHD..V BLACK,TRIM2# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58800A3 |
AYH36,GGH31..RHD..V WHITE,TRIM0# |
1 | ||
| 71073-58800C2 |
AYH36,GGH31..RHD..V BLACK,TRIM2# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AYH36,GGH31 |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AYH36,GGH31 |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58130 |
AYH36,GGH31..RHD..V |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58210 |
AYH36,GGH31..RHD..V |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58332C1 |
AYH36,GGH31 BLACK,TRIM2# |
1 | ||
| 71910-58332A2 |
AYH36,GGH31 WHITE,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47020C4 |
AYH36,GGH31 W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71931-47020C4 |
AYH36,GGH31 W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47020C4 |
AYH36,GGH31 W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71931-47020C4 |
AYH36,GGH31 W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 87511C - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-58130 |
AYH36,GGH31..RHD..V |
1 | ||
| 87530D - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-58080 |
AYH36,GGH31..V |
1 | ||

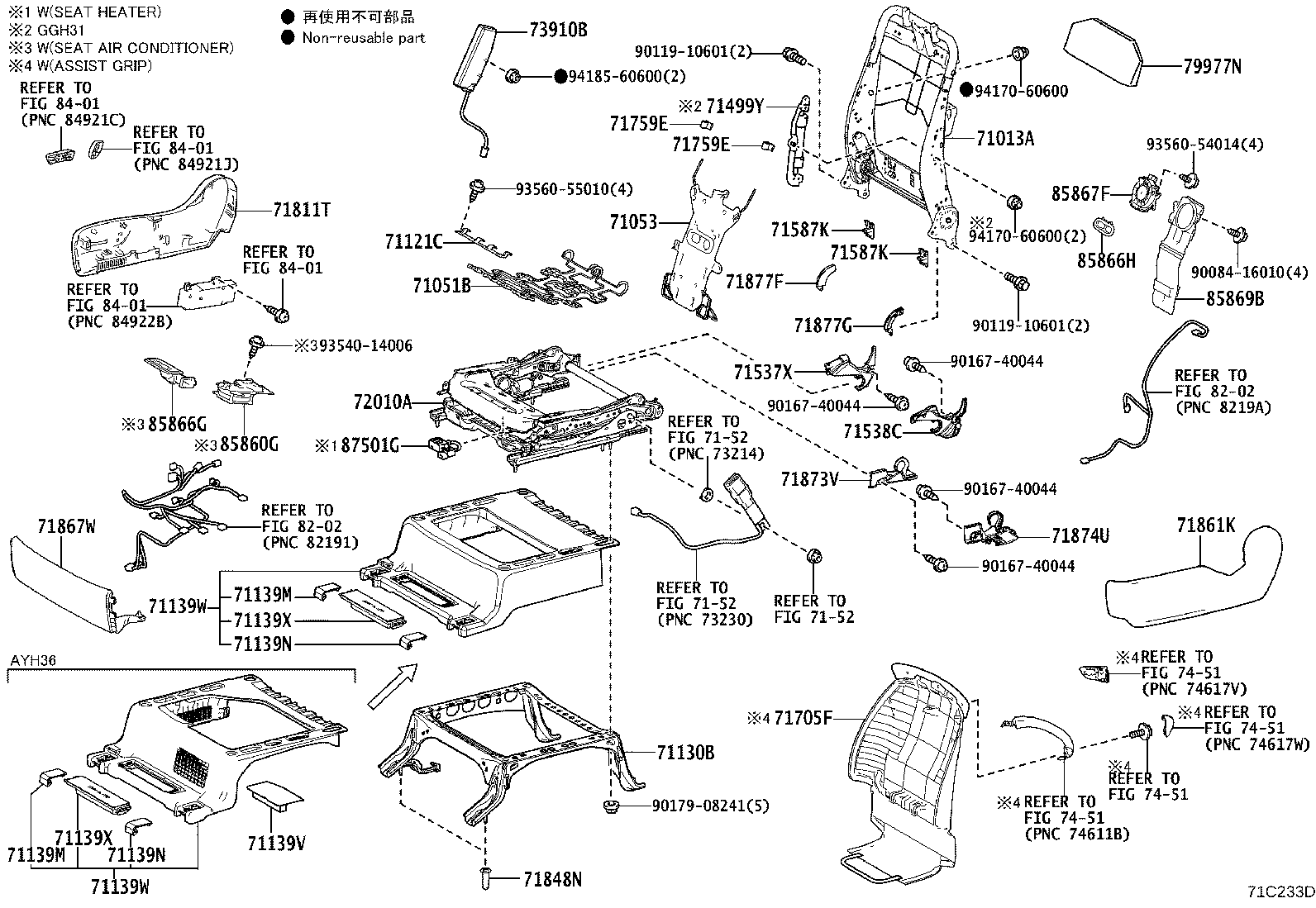

ILLUST NO. 1 OF 5(2001- )RHD..V
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-58090 |
AYH36,GGH31..RHD..V |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-58030 |
AYH36,GGH31..V |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-58020 |
AYH36,GGH31..V |
1 | ||
| 71121C - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-58040 |
AYH36,GGH31..V |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58090 |
AYH36,GGH31 |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58390C0 |
GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58390C0 |
GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58350C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58350C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71499Y - DAMPER, SEAT BACK SPRING, RH | ||||
| 71499-58120 |
GGH31..RHD |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71538C - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
GGH31..V;AYH36..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AYH36,GGH31 |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AYH36,GGH31 |
2 | ||
| 71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-58030C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AYH36,GGH31 |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AYH36,GGH31 |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58090C0 |
AYH36,GGH31..RHD;AYH36,GGH31..LHD..X BLACK,TRIM0#,2# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AYH36,GGH31 |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58090C0 |
AYH36,GGH31..RHD;AYH36,GGH31..LHD..X BLACK,TRIM0#,2# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-58060C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AYH36,GGH31..V |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
AYH36,GGH31..V |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-60210C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-60210C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-58060 |
AYH36,GGH31..RHD..V |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58040 |
AYH36,GGH31 |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AYH36,GGH31 |
2 | ||
| 85860G - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-58030 |
AYH36,GGH31..V |
1 | ||
| 85866G - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-58020 |
AYH36,GGH31..V |
1 | ||
| 85866H - DUCT, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85866-33020 |
AYH36,GGH31..V |
1 | ||
| 85867F - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33020 |
AYH36,GGH31..V |
1 | ||
| 85869B - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-58010 |
AYH36,GGH31..V |
1 | ||
| 87501G - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-76011 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 93540-14006 | ||||
| 93560-54014 | ||||
| 93560-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
| 8202 | ||||
| 8401 | ||||

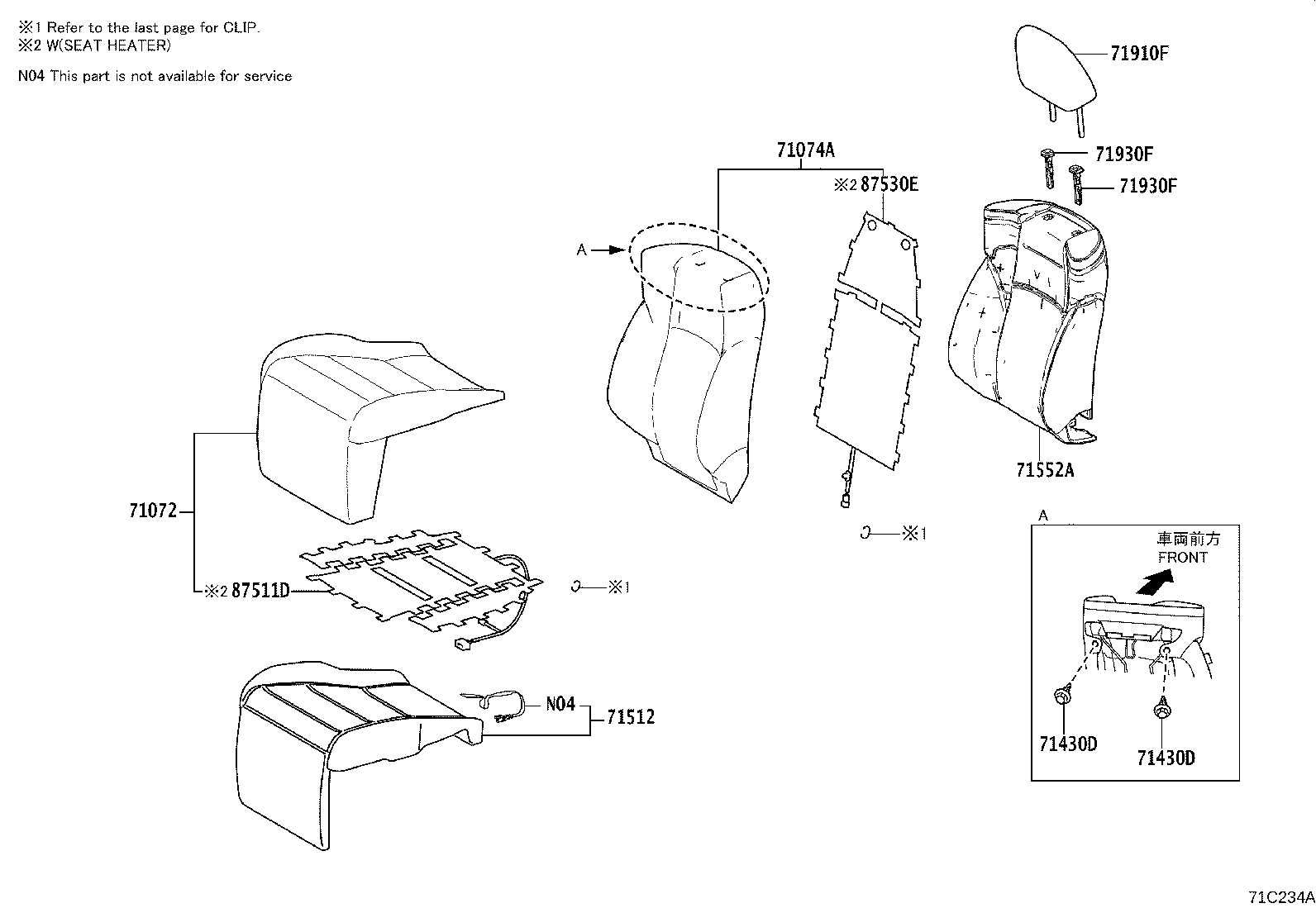

ILLUST NO. 4 OF 5(2001- )RHD..V
PASSENGER SIDE(COVER,PAD&HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58530C2 |
AYH36,GGH31..RHD..V BLACK,TRIM2# |
1 | ||
| 71072-58530A3 |
AYH36,GGH31..RHD..V WHITE,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58800C2 |
AYH36,GGH31..RHD..V BLACK,TRIM2# |
1 | ||
| 71074-58800A3 |
AYH36,GGH31..RHD..V WHITE,TRIM0# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AYH36,GGH31 |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AYH36,GGH31 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58110 |
AYH36,GGH31..RHD..V |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58230 |
AYH36,GGH31..RHD..V |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58332C1 |
AYH36,GGH31 BLACK,TRIM2# |
1 | ||
| 71910-58332A2 |
AYH36,GGH31 WHITE,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31 W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930-47020C4 |
AYH36,GGH31 W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31 W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930-47020C4 |
AYH36,GGH31 W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 87511D - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-58140 |
AYH36,GGH31..RHD..V |
1 | ||
| 87530E - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-58080 |
AYH36,GGH31..V |
1 | ||

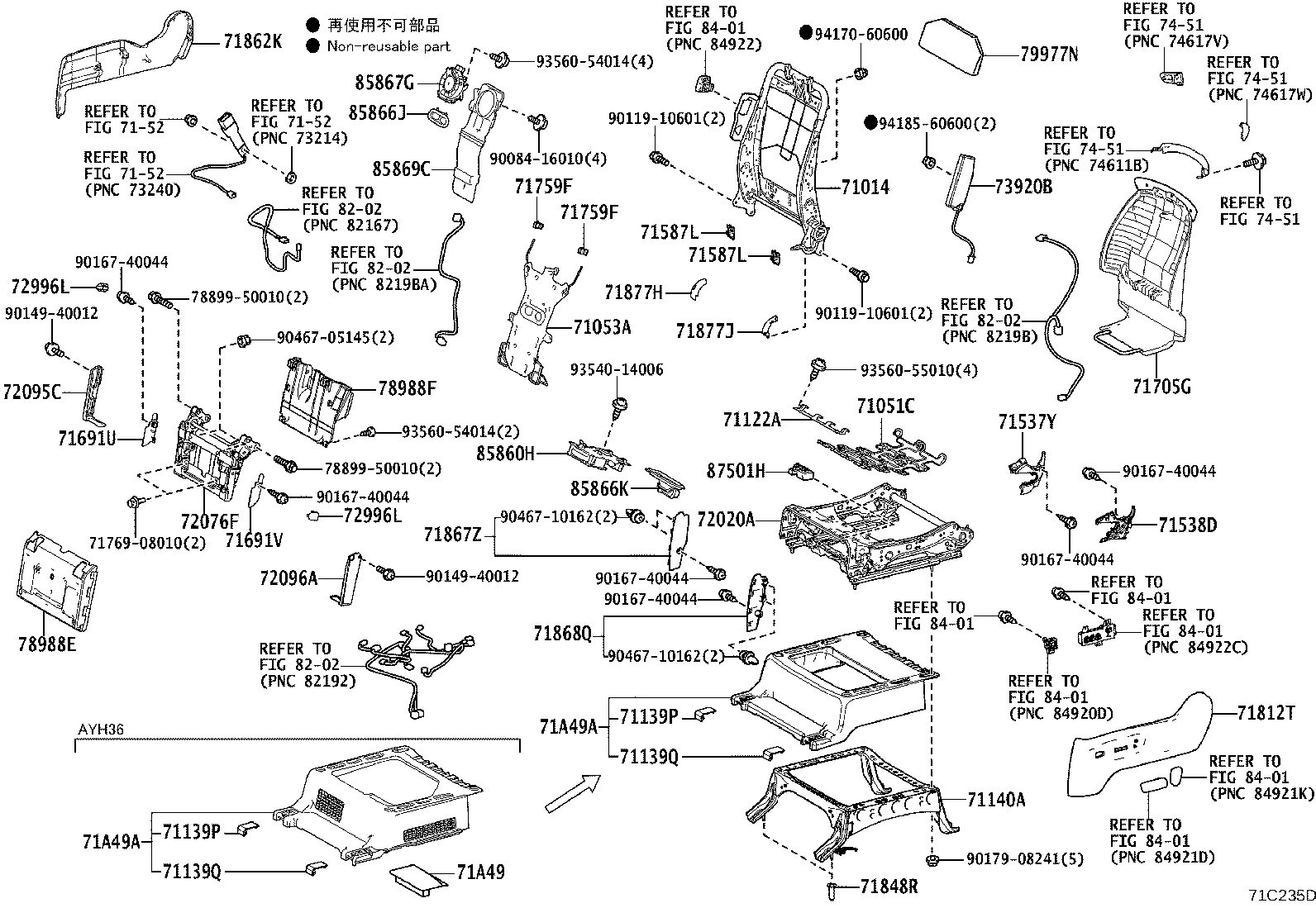

ILLUST NO. 3 OF 5(2001- )RHD..V
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-58080 |
AYH36,GGH31..RHD..V |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-58030 |
AYH36,GGH31..V |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-58020 |
AYH36,GGH31..V |
1 | ||
| 71122A - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71121-58040 |
AYH36,GGH31..V |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-58340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58080 |
AYH36,GGH31 |
1 | ||
| 71537Y - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-22040C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-22020C0 |
GGH31..V;AYH36..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AYH36,GGH31 |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AYH36,GGH31 |
2 | ||
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-58030C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AYH36,GGH31 |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AYH36,GGH31 |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58110C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AYH36,GGH31 |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58080C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71868-58060C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71867-58070C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-60210C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71876-60210C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58260C0 |
GGH31..RHD;GGH31..LHD..V BLACK,TRIM0#,2# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58260C0 |
GGH31..RHD;GGH31..LHD..V BLACK,TRIM0#,2# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-58020 |
AYH36,GGH31..RHD..V |
1 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
AYH36,GGH31..RHD..V |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58040 |
AYH36,GGH31 |
1 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
AYH36,GGH31..RHD..V |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020C0 |
AYH36,GGH31..RHD..V BLACK,TRIM0#,2# |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AYH36,GGH31 |
2 | ||
| 85860H - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-58040 |
AYH36,GGH31..V |
1 | ||
| 85866J - DUCT, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85866-33020 |
AYH36,GGH31..V |
1 | ||
| 85866K - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-58030 |
AYH36,GGH31..V |
1 | ||
| 85867G - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-33020 |
AYH36,GGH31..V |
1 | ||
| 85869C - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-58010 |
AYH36,GGH31..V |
1 | ||
| 87501H - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-76011 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 71769-08010 | ||||
| 78899-50010 | ||||
| 90084-16010 | ||||
| 90119-10601 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 90467-05145 | ||||
| 90467-10162 | ||||
| 93540-14006 | ||||
| 93560-54014 | ||||
| 93560-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(2001- )V
SEAT LEG COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-58370C0 |
GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71149-58240C0 |
GGH31..V BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||
(2001- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71227-58010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
