GGH31R-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )RHD

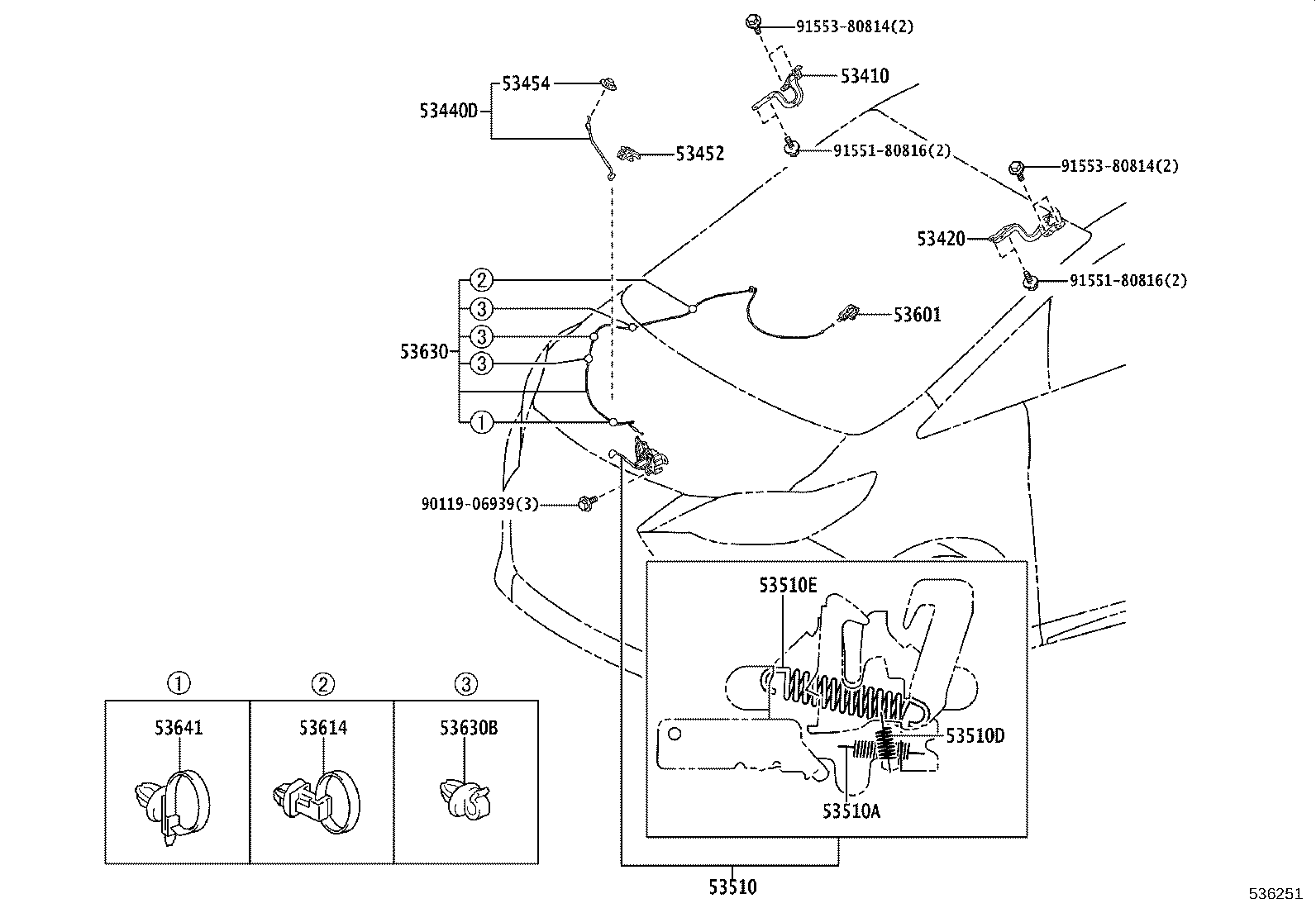

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53454 53510 53510A 53510D 53510E 53601 53614 53630 53630B 53641 9011906939 9155180816 9155180816 9155380814 9155380814
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-58060

AYH36,GGH31

 1
53420 - HINGE ASSY, HOOD, LH
53420-58080

AYH36,GGH31

 1
53440D - SUPPORT ASSY, HOOD
53440-58050

AYH36,GGH31

 1
53452 - HOLDER, HOOD STAY
53452-58010

AYH36,GGH31

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52020

AYH36,GGH31

 1
53510 - LOCK ASSY, HOOD
53510-58070

AYH36,GGH31..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AYH36,GGH31

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AYH36,GGH31

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

AYH36,GGH31

WD=1.8,CW=13

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C1

AYH36,GGH31

BLACK,TRIM0#,2#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
82711-3F440

AYH36,GGH31

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-58050

AYH36,GGH31..RHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AYH36,GGH31

 3
53641 - CLAMP, HOOD LOCK CONTROL WIRE
82711-16820

AYH36,GGH31..RHD

 1
Common parts
90119-06939
91551-80816
91553-80814
