GGH31R-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

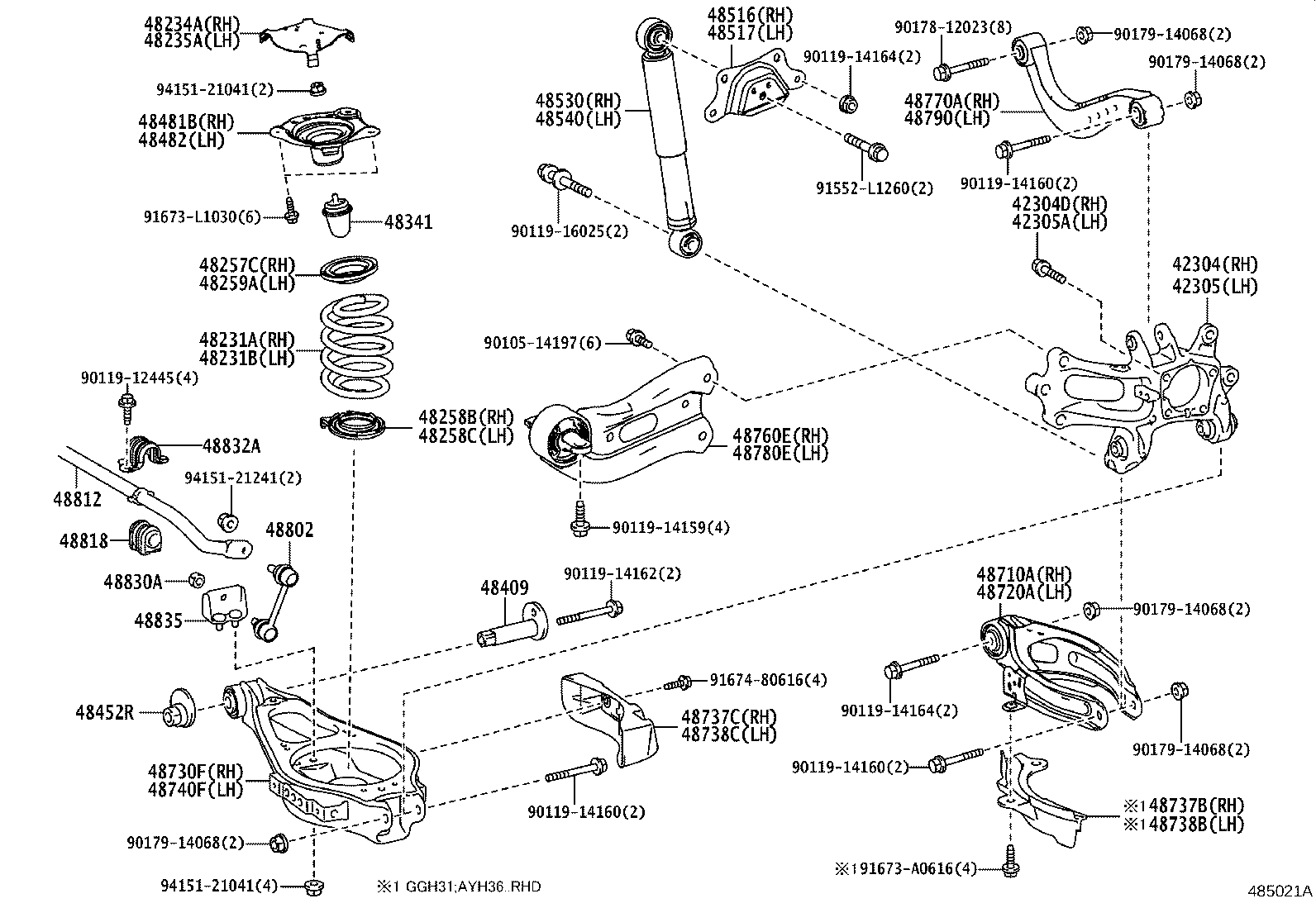

Click highlighted areas on diagram

diagram 42304 42304D 42305 42305A 48231A 48231B 48234A 48235A 48257C 48258B 48258C 48259A 48341 48409 48452R 48481B 48482 48516 48517 48530 48540 48710A 48720A 48730F 48737B 48737C 48738B 48738C 48740F 48760E 48770A 48780E 48790 48802 48812 48818 48830A 48832A 48835 9010514197 9011912445 9011914159 9011914160 9011914160 9011914160 9011914162 9011914164 9011914164 9011916025 9017812023 9017914068 9017914068 9017914068 9017914068 9017914068 91552L1260 91673A0616 91673L1030 9167480616 9415121041 9415121041 9415121241
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-58010

AYH36,GGH31

 1
42304D - BOLT (FOR REAR AXLE CARRIER RH)
91552-L1245

AYH36,GGH31

 4
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-58010

AYH36,GGH31

 1
42305A - BOLT (FOR REAR AXLE CARRIER LH)
91552-L1245

AYH36,GGH31

 4
48231A - SPRING, COIL, REAR RH
48231-58200

GGH31

 1
48231-58300

GGH31..RHD..8FC

FOR INDONESIA

 1
48231-58310

GGH31..RHD..8FC

FOR INDONESIA

 1
48231-58280

GGH31

 1
48231-58310

GGH31..RHD..8FC

MALAYSIA SPEC

 1
48231-58300

GGH31..RHD..8FC

MALAYSIA SPEC

 1
48231B - SPRING, COIL, REAR LH
48231-58280

GGH31

 1
48231-58300

GGH31..RHD..8FC

MALAYSIA SPEC

 1
48231-58310

GGH31..RHD..8FC

FOR INDONESIA

 1
48231-58300

GGH31..RHD..8FC

FOR INDONESIA

 1
48231-58200

GGH31

 1
48231-58310

GGH31..RHD..8FC

MALAYSIA SPEC

 1
48234A - COVER, SEAT COIL SPRING, REAR RH
48234-58010

AYH36,GGH31

 1
48235A - COVER, SEAT COIL SPRING, REAR LH
48235-58010

AYH36,GGH31

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-58010

AYH36,GGH31

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-58010

AYH36,GGH31

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-58010

AYH36,GGH31

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-58010

AYH36,GGH31

 1
48341 - BUMPER, REAR SPRING
48341-58010

AYH36,GGH31

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-58010

AYH36,GGH31

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-26010

AYH36,GGH31

 2
48481B - SEAT, REAR SPRING, UPPER RH
48481-58010

AYH36,GGH31

 1
48482 - SEAT, REAR SPRING, UPPER LH
48482-58010

AYH36,GGH31

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-58010

AYH36,GGH31

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48516-58010

AYH36,GGH31

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-58300

GGH31..V

MARK 48530-58300

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-58300

GGH31..V

MARK 48530-58300

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-58010

AYH36,GGH31

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-58010

AYH36,GGH31

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-58010

AYH36,GGH31

 1
48737B - COVER, LOWER CONTROL ARM, RH NO.1
48737-58010

GGH31;AYH36..RHD

 1
48737C - COVER, LOWER CONTROL ARM, RH NO.2
48737-58020

AYH36,GGH31

 1
48738B - COVER, LOWER CONTROL ARM, LH NO.1
48738-58010

GGH31;AYH36..RHD

 1
48738C - COVER, LOWER CONTROL ARM, LH NO.2
48738-58020

AYH36,GGH31

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-58010

AYH36,GGH31

 1
48760E - ARM ASSY, TRAILING, REAR RH
48760-58010

AYH36,GGH31

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-58010

AYH36,GGH31

 1
48780E - ARM ASSY, TRAILING, REAR LH
48780-58010

AYH36,GGH31

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48770-58010

AYH36,GGH31

 1
48802 - LINK SUB-ASSY, STABILIZER
48803-48010

AYH36,GGH31

RH

 1
48802-48010

AYH36,GGH31

LH

 1
48812 - BAR, STABILIZER, REAR
48812-58010

AYH36,GGH31

 1
48818 - BUSH, STABILIZER, REAR
48818-58020

AYH36,GGH31

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90178-12019

AYH36,GGH31

 2
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-58010

AYH36,GGH31

 2
48835 - BRACKET, REAR STABILIZER, LOWER
48835-48010

AYH36,GGH31

 2
Common parts
90105-14197
90119-12445
90119-14159
90119-14160
90119-14162
90119-14164
90119-16025
90178-12023
90179-14068
91552-L1260
91673-A0616
91673-L1030
91674-80616
94151-21041
94151-21241
