GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC

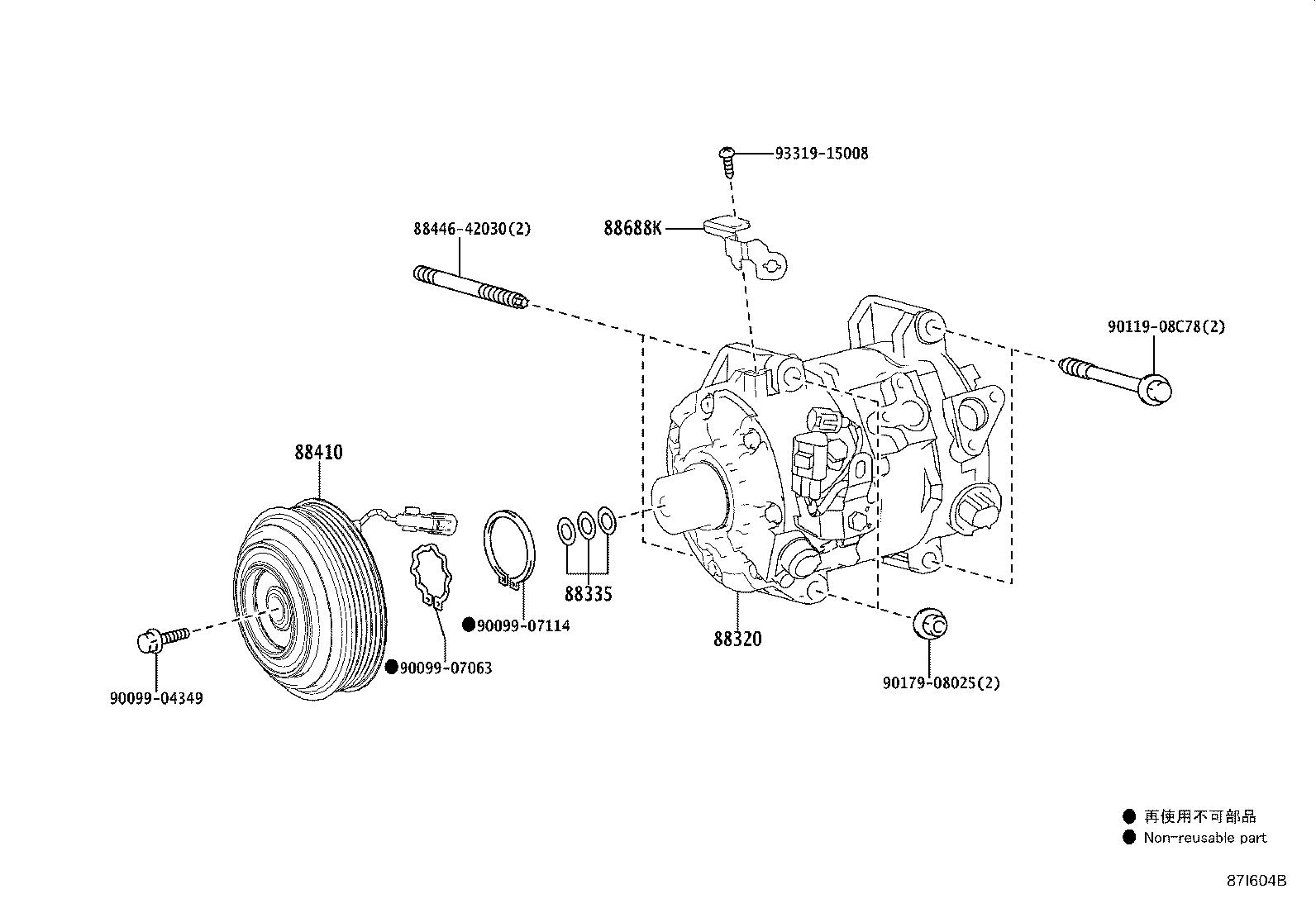

Click highlighted areas on diagram

diagram 88320 88335 88410 8844642030 88688K 9009904349 9009907063 9009907114 9011908C78 9017908025 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-58020

GGH31

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

GGH31

 1
88410 - CLUTCH ASSY, MAGNET
88410-33190

GGH31..6FC

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33570

GGH31

 1
Common parts
88446-42030
90099-04349
90099-07063
90099-07114
90119-08C78
90179-08025
93319-15008
