GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )RHD

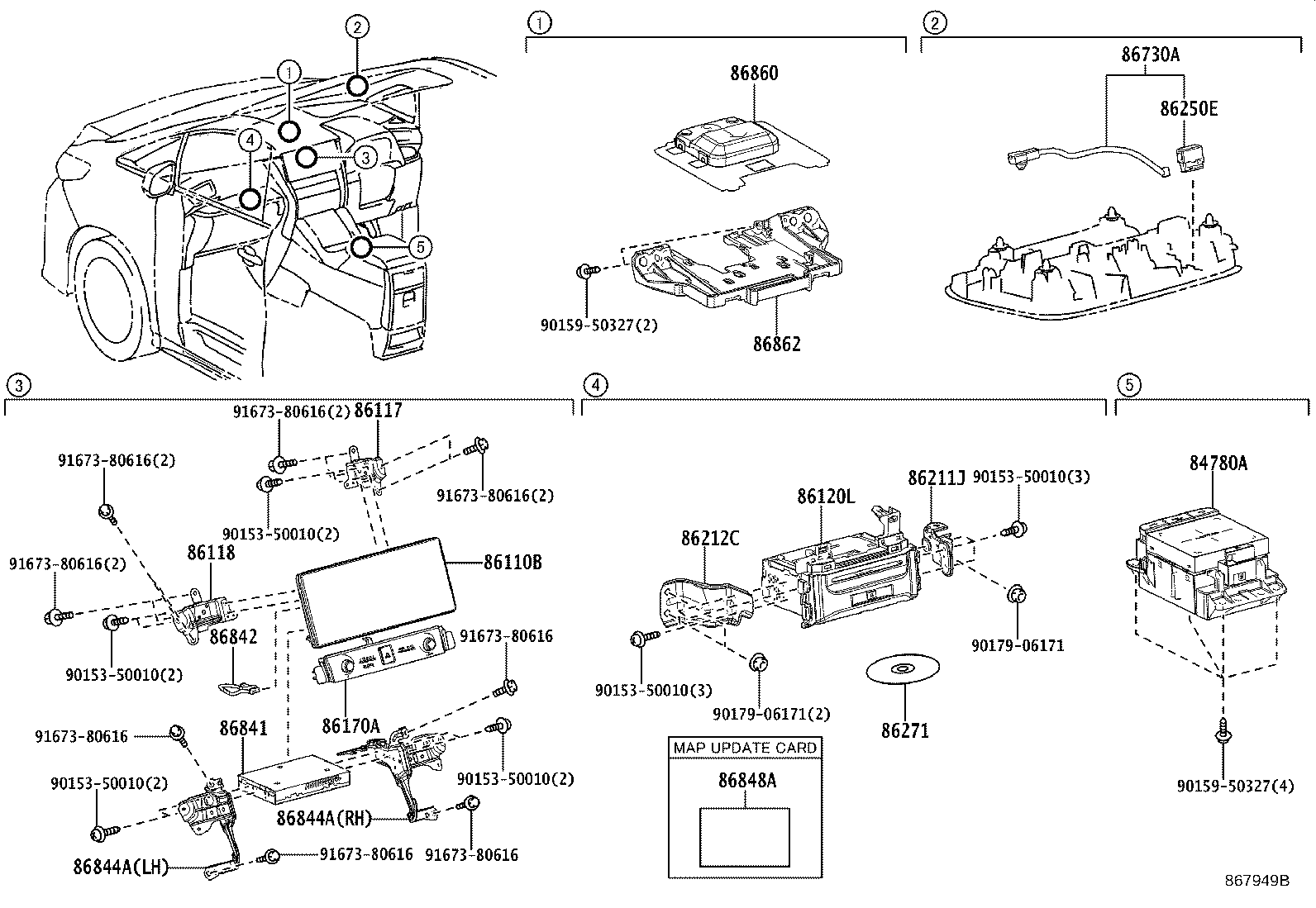

Click highlighted areas on diagram

diagram 84780A 86110B 86117 86118 86120L 86170A 86211J 86212C 86250E 86271 86730A 86841 86842 86844A 86844A 86848A 86860 86862 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9015950327 9015950327 9017906171 9017906171 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
84780A - CONTROLLER ASSY, REMOTE OPERATION
84780-50210

AYH36,GGH31

 1
86110B - MULTI-DISPLAY ASSY
86110-58010

AYH36,GGH31

DENSO

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-58130

AYH36,GGH31

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-58040

AYH36,GGH31

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-58250

GGH31..6FC..V

PIONEER

 1
86170A - SWITCH & VOLUME ASSY
86170-58110

AYH36,GGH31..RHD

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-58090

AYH36,GGH31..RHD

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-58090

AYH36,GGH31..RHD

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

AYH36,GGH31..RHD

 1
86271 - DISC, DISC PLAYER
86807-11052

GGH31..6FC

 1
86807-11053

GGH31..6FC

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28060

AYH36,GGH31..RHD

 1
86841 - COMPUTER, NAVIGATION
86840-48251

GGH31..6FC

 1
86840-48252

GGH31..6FC

 1
86842 - WIRE, NAVIGATION, NO.1
86842-58660

AYH36,GGH31

 1
86844A - BRACKET, NAVIGATION COMPUTER
86212-58130

AYH36,GGH31

LH

 1
86211-58130

AYH36,GGH31

RH

 1
86844A - BRACKET, NAVIGATION COMPUTER
86212-58130

AYH36,GGH31

LH

 1
86211-58130

AYH36,GGH31

RH

 1
86848A - CARD, SERIAL NUMBER MAP UPDATE
86848-33030

GGH31..6FC

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010

GGH31;AYH36..RHD

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

AYH36,GGH31

 1
Common parts
90153-50010
90159-50327
90179-06171
91673-80616
