GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC

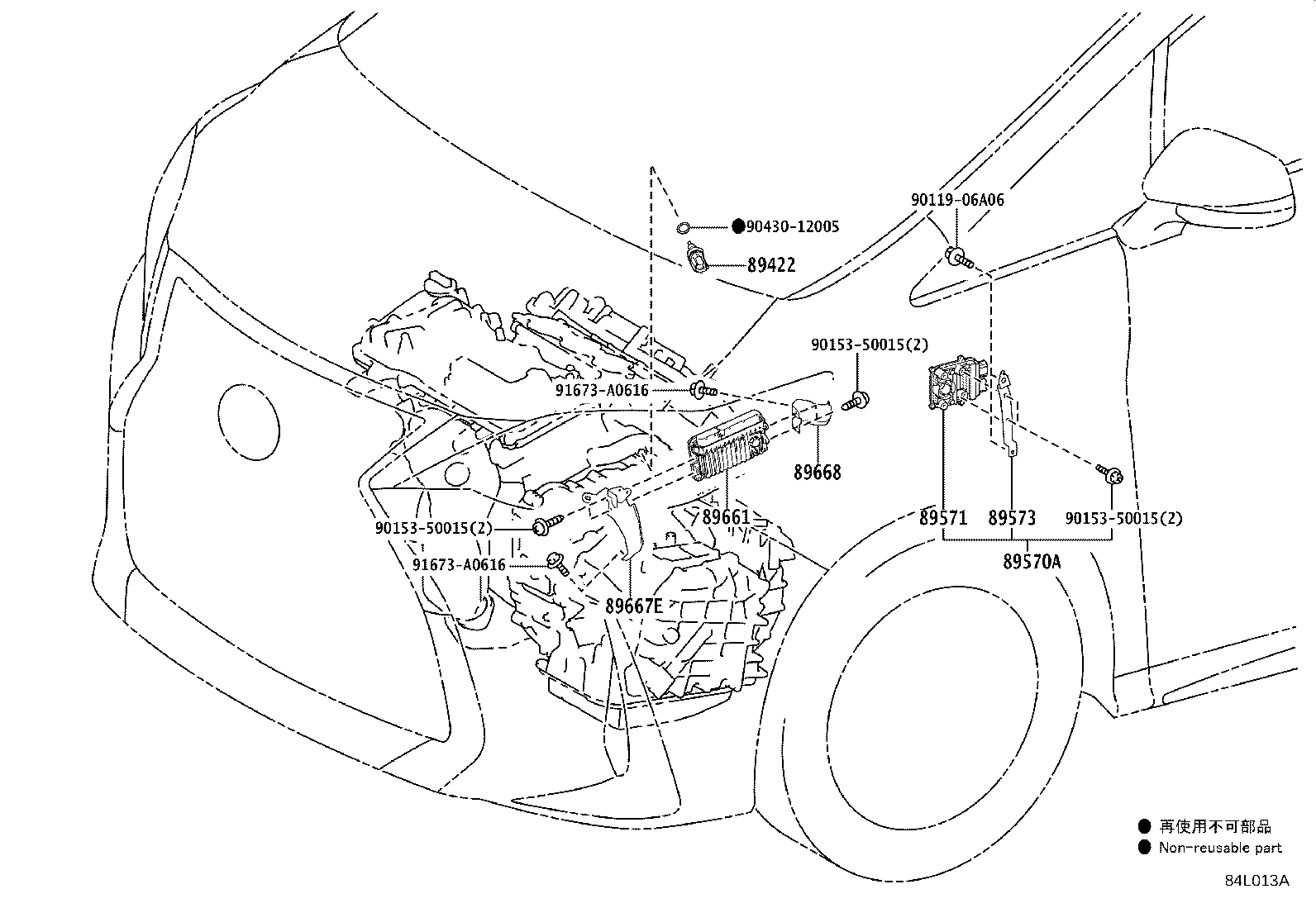

Click highlighted areas on diagram

diagram 89422 89570A 89571 89573 89661 89667E 89668 9011906A06 9015350015 9015350015 9015350015 9043012005 91673A0616 91673A0616
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

AYH36;GGH31..6FC

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-58020

GGH31..6FC

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58020

GGH31

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-58020

GGH31

 1
89661 - COMPUTER, ENGINE CONTROL
89661-58630

GGH31..6FC

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-58040

GGH31..6FC

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-58040

GGH31..6FC

 1
Common parts
90119-06A06
90153-50015
90430-12005
91673-A0616
