GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

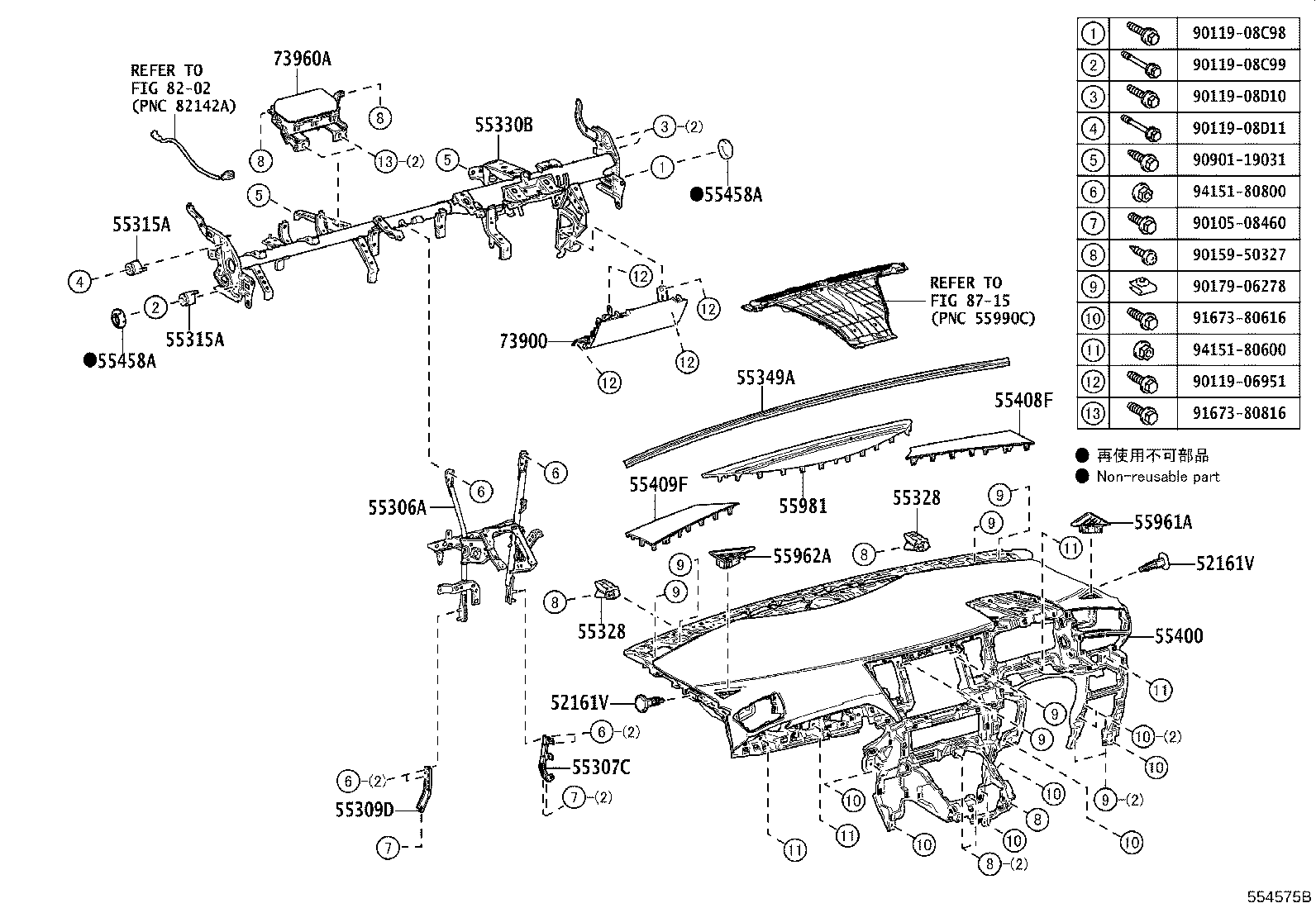

ILLUST NO. 1 OF 2(2001- )RHD

Click highlighted areas on diagram

diagram 52161V 52161V 55306A 55307C 55309D 55315A 55315A 55328 55328 55330B 55349A 55400 55408F 55409F 55458A 55458A 55961A 55962A 55981 73900 73960A 8202 8715 9010508460 9011906951 9011908C98 9011908C99 9011908D10 9011908D11 9015950327 9017906278 9090119031 9167380616 9167380816 9415180600 9415180800
Part # Description Qty Price
52161V - PIECE, INSTRUMENT PANEL
52161-16010

AYH36,GGH31

 2
52161V - PIECE, INSTRUMENT PANEL
52161-16010

AYH36,GGH31

 2
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-58050

AYH36,GGH31..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-58020

AYH36,GGH31..RHD

 1
55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR
55309-58010

AYH36,GGH31..RHD

 1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-48160

AYH36,GGH31

 2
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-48160

AYH36,GGH31

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-28130

AYH36,GGH31

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-28130

AYH36,GGH31

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-58052

AYH36,GGH31..RHD

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-58050

AYH36,GGH31..RHD

 1
55400 - PAD ASSY, INSTRUMENT PANEL SAFETY
55400-58031C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-58030C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-58020C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-22110

AYH36,GGH31

 2
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-22110

AYH36,GGH31

 2
55961A - NOZZLE, SIDE DEFROSTER, RH
55961-58040C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55962A - NOZZLE, SIDE DEFROSTER, LH
55962-58040C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-58021C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-58030C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-58030

AYH36,GGH31

 1
Common parts
90105-08460
90119-06951
90119-08C98
90119-08C99
90119-08D10
90119-08D11
90159-50327
90179-06278
90901-19031
91673-80616
91673-80816
94151-80600
94151-80800
Linked diagrams
8202
8715

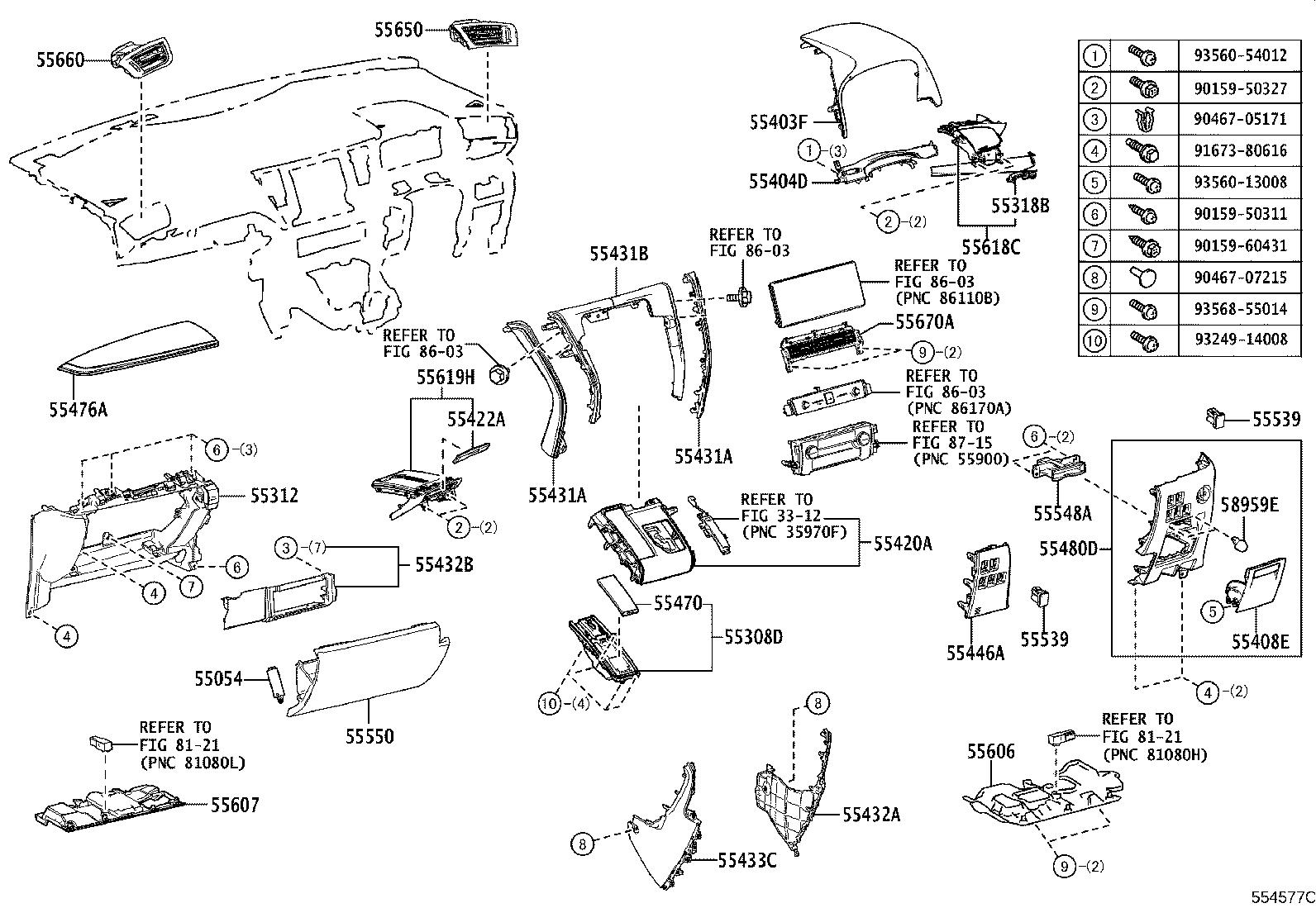

ILLUST NO. 2 OF 2(2001- )RHD

Click highlighted areas on diagram

diagram 3312 55054 55308D 55312 55318B 55403F 55404D 55408E 55420A 55422A 55431A 55431A 55431B 55432A 55432B 55433C 55446A 55470 55476A 55480D 55539 55539 55548A 55550 55606 55607 55618C 55619H 55650 55660 55670A 58959E 8121 8121 8603 8603 8603 8603 8715 9015950311 9015950327 9015960431 9046705171 9046707215 9167380616 9324914008 9356013008 9356054012 9356855014
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010

AYH36,GGH31

 1
55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-58090

AYH36,GGH31..RHD

 1
55312 - PANEL, INSTRUMENT, LOWER
55312-58070C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55318B - EXTENSION, INSTRUMENT PANEL
55318-58040

AYH36,GGH31..RHD

 1
55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH
55403-58140C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-58050

AYH36,GGH31..RHD

 1
55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN
55408-58040C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-58520

GGH31..6FC

 1
55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER
55422-58010

AYH36,GGH31..RHD

 1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-58050C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#,LH

 1
55431-58060C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#,RH

 1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-58050C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#,LH

 1
55431-58060C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#,RH

 1
55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER
55431-58040C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-58160C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-58140C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55433-58010C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-58070C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
55470-58120

AYH36,GGH31..RHD

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55476-58120

AYH36,GGH31..RHD

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-58060C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58130C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58130C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-47020C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-58130C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-58030

AYH36,GGH31..RHD

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-58030

GGH31..RHD

 1
55618C - HOLDER, INSTRUMENT PANEL CUP
55618-58290C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2
55619-58010C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-58111C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-58100C0

AYH36,GGH31..RHD

BLACK,TRIM0#,2#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-58120

AYH36,GGH31

 1
58959E - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

AYH36,GGH31

 2
Common parts
90159-50311
90159-50327
90159-60431
90467-05171
90467-07215
91673-80616
93249-14008
93560-13008
93560-54012
93568-55014
Linked diagrams
3312
8121
8603
8715
