GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC

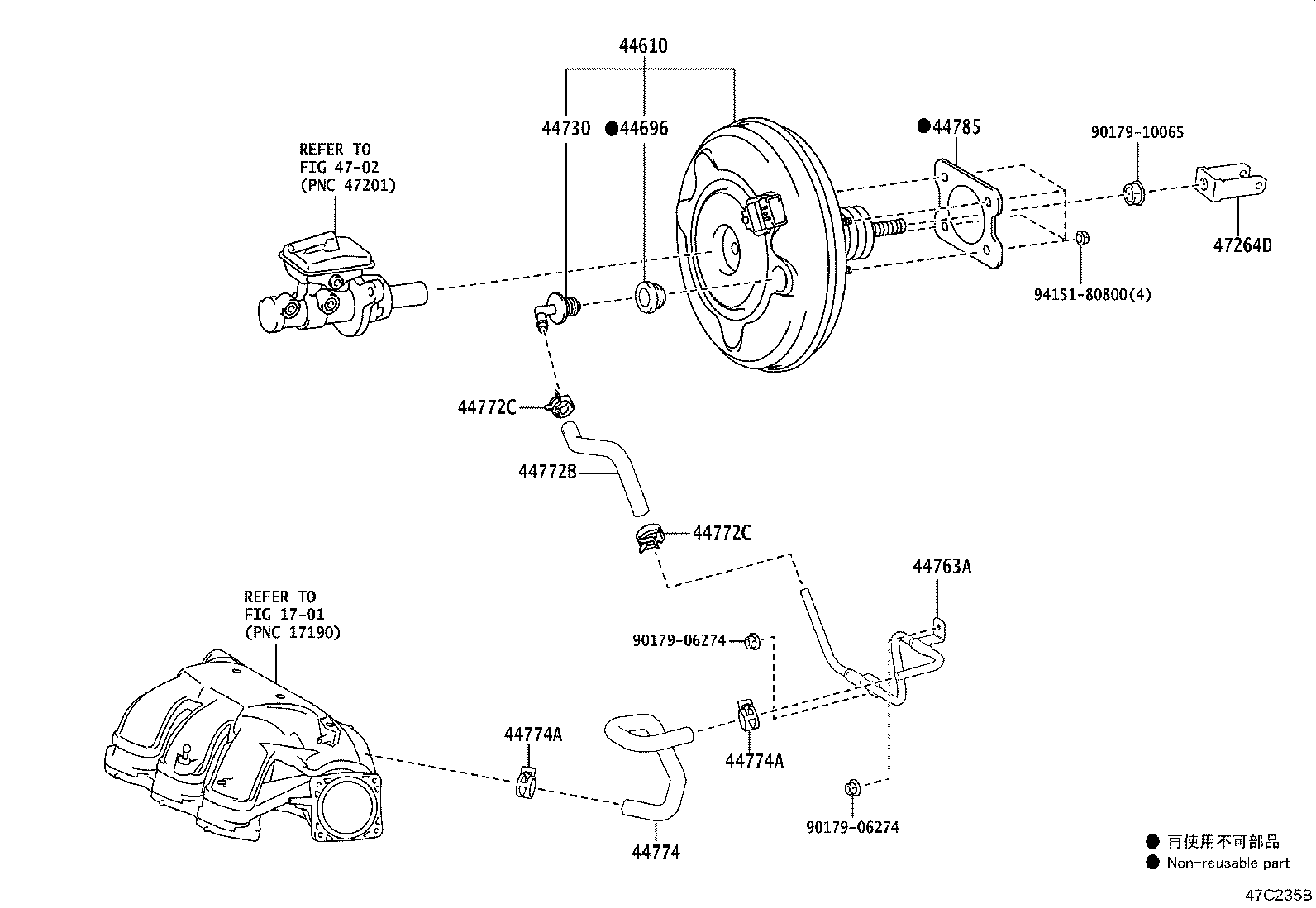

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763A 44772B 44772C 44772C 44774 44774A 44774A 44785 4702 47264D 9017906274 9017906274 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58080

GGH31..6FC

 1
44696 - GROMMET, CHECK VALVE
90480-24015

GGH31

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10020

GGH31

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-58030

GGH31..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-58030

GGH31..RHD

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16014

GGH31

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16014

GGH31

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-58020

GGH31..6FC

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

GGH31

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

GGH31

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

GGH31

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GGH31

 1
Common parts
90179-06274
90179-10065
94151-80800
Linked diagrams
1701
4702
