GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

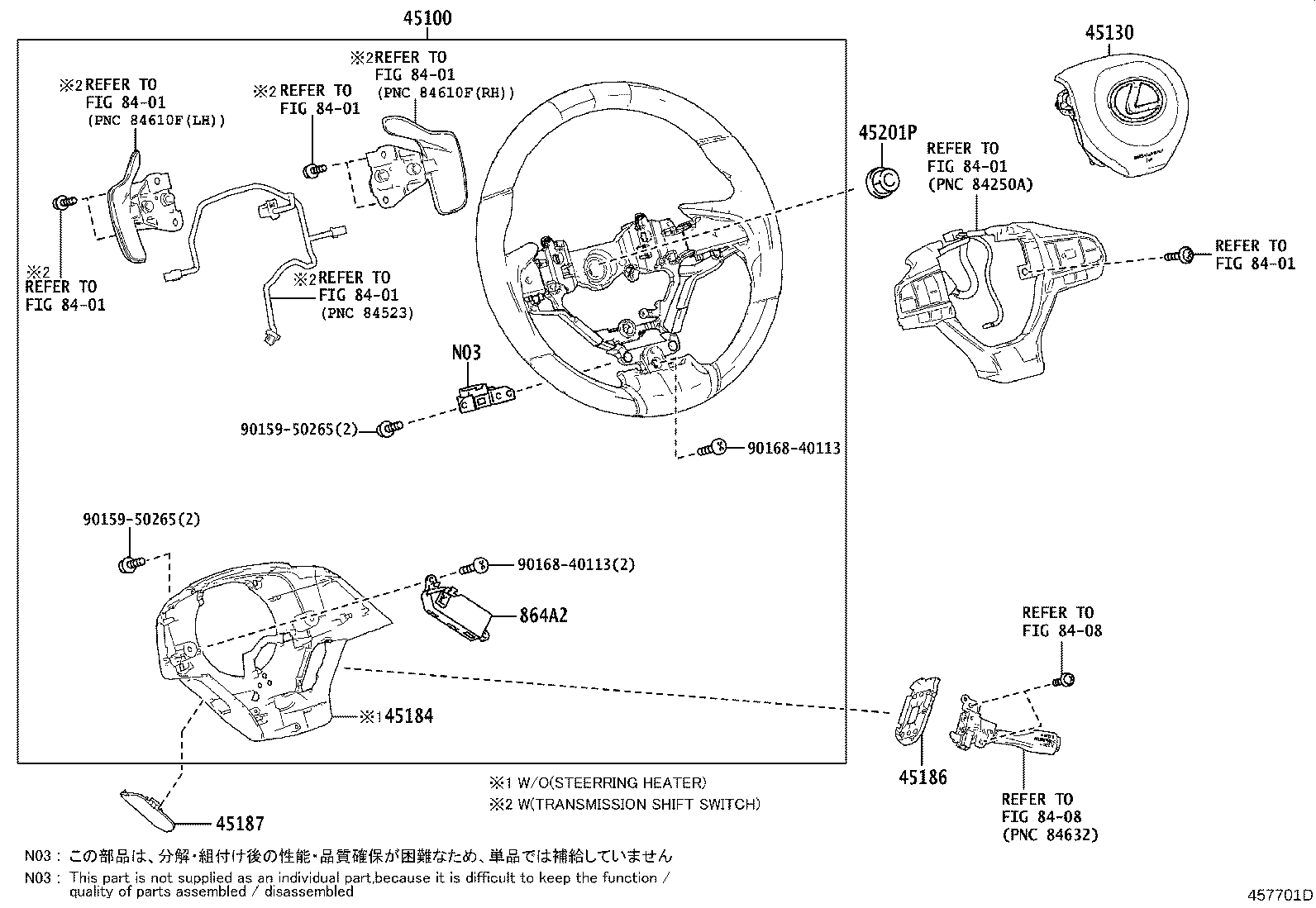

Click highlighted areas on diagram

diagram 45100 45130 45184 45186 45187 45201P 8401 8401 8401 8401 8401 8401 8401 8408 8408 864A2 9015950265 9015950265 9016840113 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-4858146

GGH31..V;AYH36..RHD..V

3-SPOKE,WOOD&LEATHER,BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-58050C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48060C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-48050C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AYH36,GGH31

 1
864A2 - COMPUTER, STEERING VIBRATION
864A1-48011

AYH36,GGH31..V

 1
Common parts
90159-50265
90168-40113
Linked diagrams
8401
8408
